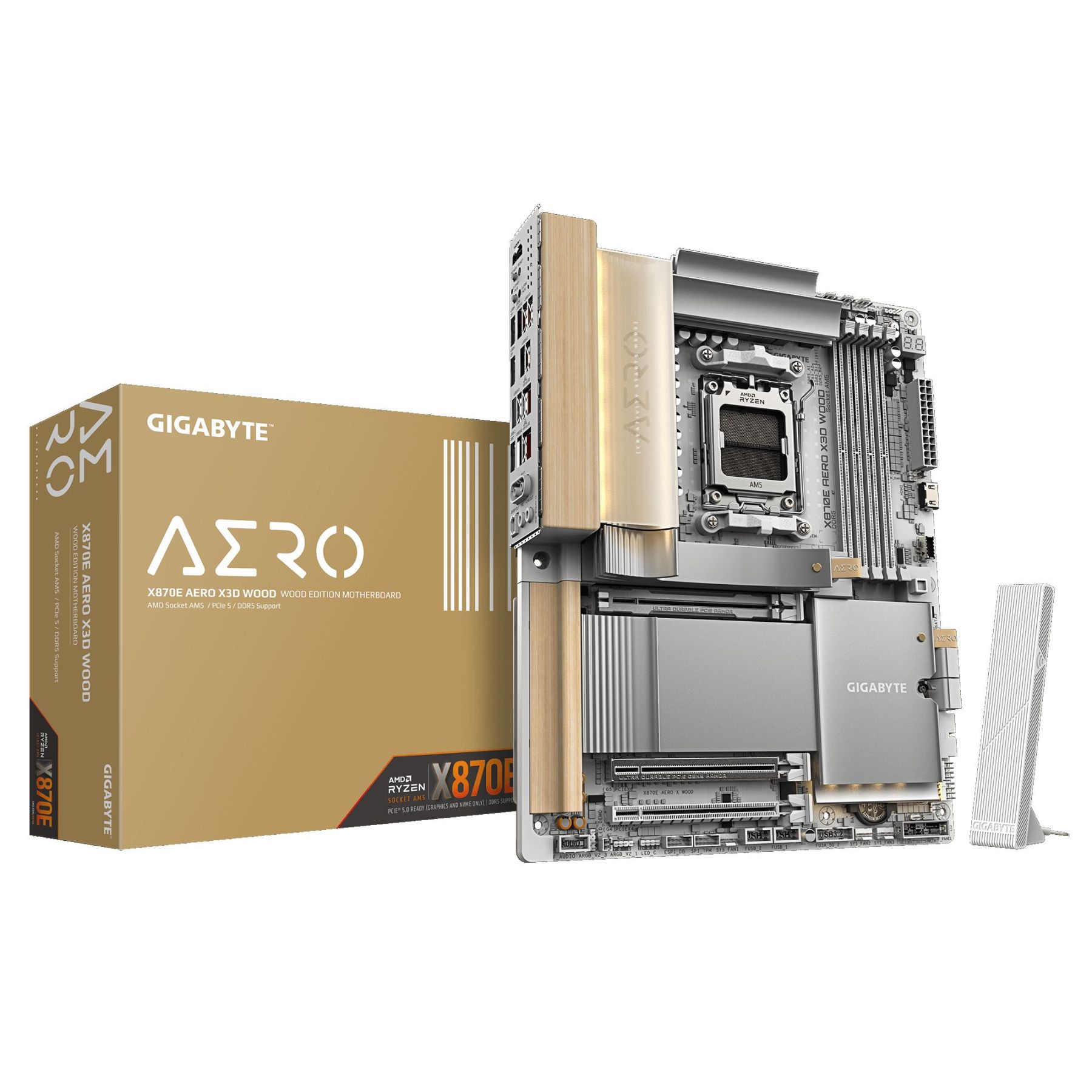

GIGABYTE Motherboard X870E AERO X WOOD sAM5 X870 M.2 4xDDR5 Wi-Fi BT HDMI ATX

Features

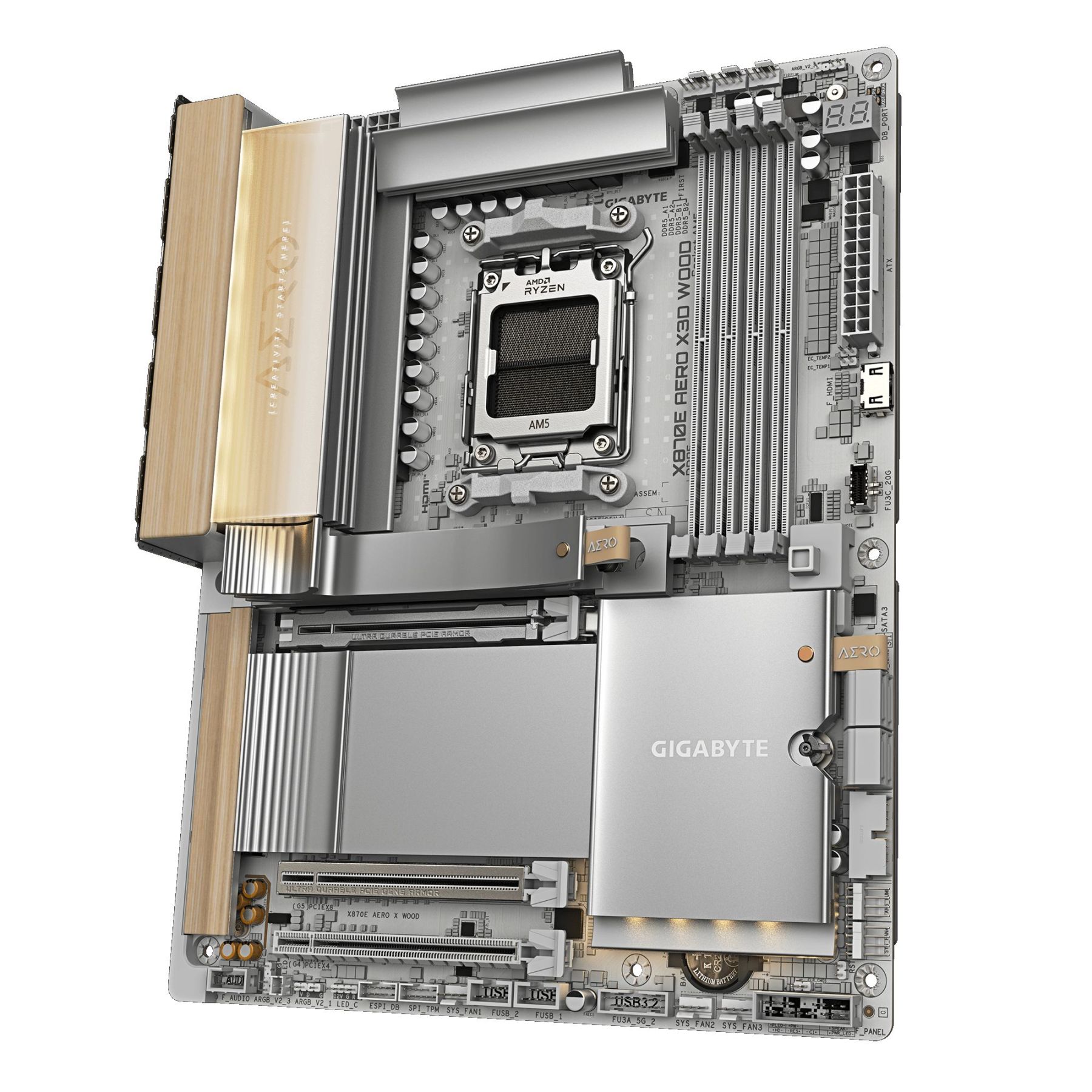

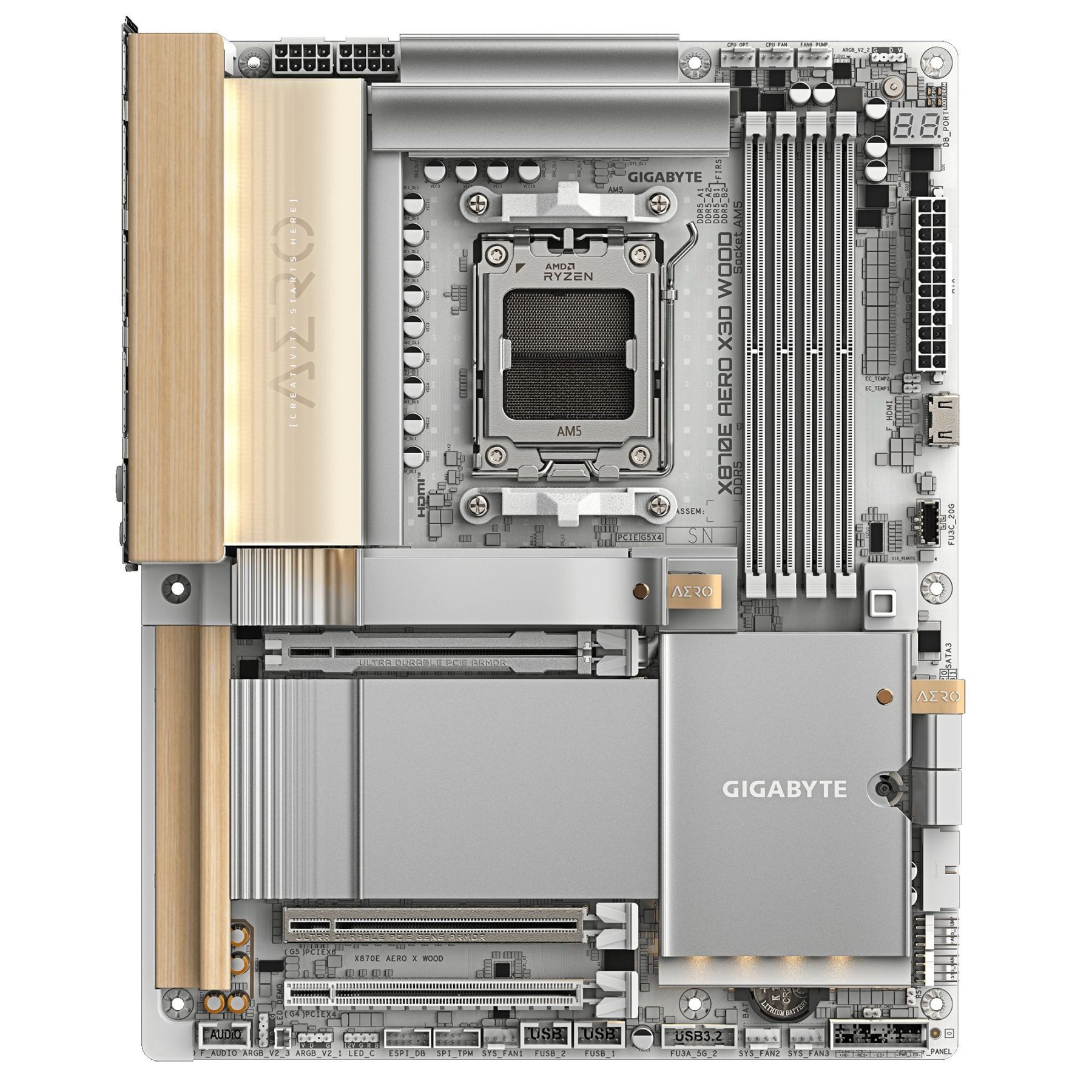

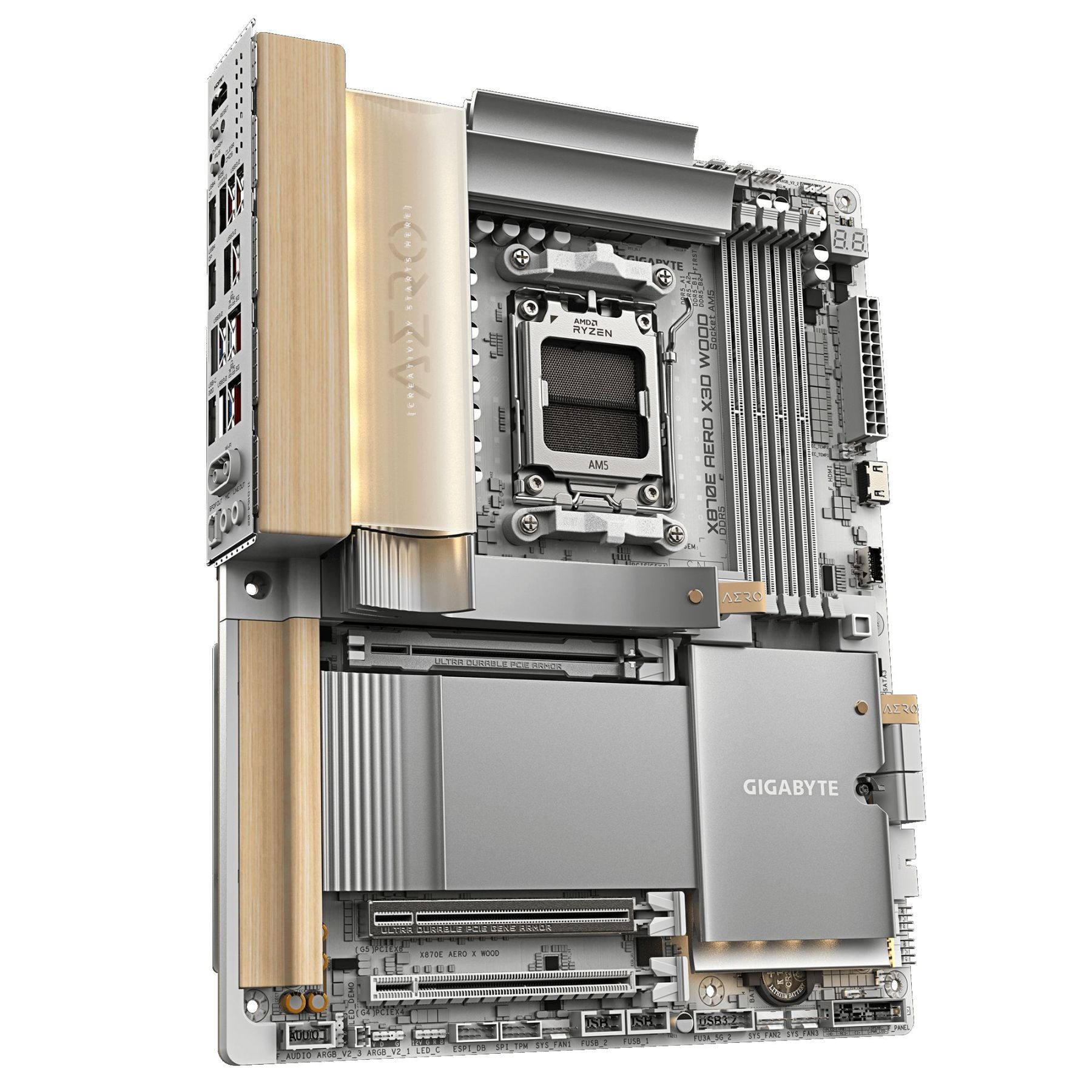

GIGABYTE X870E AERO X3D WOOD combines the AMD AM5 socket, the AMD X870E chipset and the ATX form factor. The board supports AMD Ryzen 9000 Series, Ryzen 8000 Series and Ryzen 7000 Series processors, which makes it suitable for a high-performance desktop system on the current AMD platform.

The memory subsystem includes four DDR5 DIMM slots with dual-channel architecture. The maximum system memory capacity is 256 GB, while AMD EXPO and XMP support allows compatible memory profiles to be used. DDR5 speeds up to 9000 O.C. depend on the processor, memory configuration and installed modules.

Storage options include four M.2 Socket 3 connectors and four SATA 6 Gb/s ports. Two M.2 connectors are connected to the processor, and two more are connected to the chipset. With Ryzen 9000 and Ryzen 7000 processors, selected M.2 and PCI Express slots support PCIe 5.0, while Ryzen 8000 configurations have specific PCIe lane limitations.

The networking section includes two Realtek 5GbE LAN controllers and a MediaTek Wi-Fi 7 MT7927, RZ738 module. The wireless module supports a/b/g/n/ac/ax/be standards, 2.4/5/6 GHz frequency bands, Bluetooth 5.4 and the 11be 320 MHz standard. Wi-Fi 7 features require Windows 11 SV3, while 6 GHz channel availability depends on regional regulations.

Peripheral connectivity includes two rear USB4 Type-C ports, USB Type-C with USB 3.2 Gen 2x2 support, USB 3.2 Gen 2, USB 3.2 Gen 1 and internal USB headers. Display outputs include HDMI, front HDMI and DisplayPort through USB4 Type-C when supported by a processor with integrated AMD Radeon graphics.

Technologies (used)

• AMD X870E
• AMD Socket AM5
• DDR5 Dual Channel
• AMD EXPO
• XMP
• PCIe 5.0
• PCIe 4.0
• M.2 Socket 3
• USB4
• USB 3.2 Gen 2x2
• Wi-Fi 7 802.11be
• Bluetooth 5.4
• Realtek 5GbE LAN
• MediaTek Wi-Fi 7 MT7927, RZ738
• HDMI 2.1
• HDMI 1.4
• DisplayPort 1.4
• HDCP 2.3
• HDR
• Realtek ALC1220
• S/PDIF Out
• Q-Flash
• Q-Flash Plus
• GIGABYTE Control Center
• Smart Backup
• Noise Detection
• Smart Fan
• AMI UEFI BIOS

Technical specifications

• Model: GIGABYTE X870E AERO X3D WOOD
• Form factor: ATX
• Dimensions: 30.5 x 24.4 cm
• Socket: AMD AM5
• Chipset: AMD X870E
• CPU support: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
• Memory type: DDR5
• Memory slots: 4 x DDR5 DIMM
• Maximum memory capacity: 256 GB
• Maximum single DIMM capacity: 64 GB
• Memory architecture: dual-channel
• Memory support: non-ECC Un-buffered DIMM
• Memory profile support: AMD EXPO, XMP
• Supported memory speeds: 9000 O.C./8800 O.C./8600 O.C./8400 O.C./8000 O.C./7800 O.C./7600 O.C./7200 O.C./7000 O.C./6800 O.C./6600 O.C./6400 O.C./6200 O.C./6000 O.C./5600 O.C./5200/4800/4400 MT/s
• Display outputs through USB4 Type-C: 2 x USB4 Type-C with DisplayPort support
• Maximum resolution through USB4 Type-C: 3840 x 2160 @ 240 Hz
• DisplayPort support: DisplayPort 1.4, HDR
• HDMI output: 1 x HDMI
• Maximum HDMI resolution: 4096 x 2160 @ 60 Hz
• HDMI support: HDMI 2.1, HDCP 2.3, HDR
• Front HDMI: 1 x front HDMI
• Maximum front HDMI resolution: 1920 x 1080 @ 30 Hz
• Front HDMI support: HDMI 1.4
• Audio: Realtek ALC1220 CODEC
• Audio: High Definition Audio
• Audio channels: 2/4/5.1/7.1
• S/PDIF Out: yes
• LAN: 2 x Realtek 5GbE LAN
• LAN speed: 5 Gb/s, 2.5 Gb/s, 1 Gb/s, 100 Mb/s
• Wi-Fi: MediaTek Wi-Fi 7 MT7927, RZ738
• Wireless standards: a/b/g/n/ac/ax/be
• Wi-Fi frequency bands: 2.4/5/6 GHz
• 11be support: 320 MHz
• Bluetooth: 5.4
• CPU PCIEX16 slot for Ryzen 9000/7000 Series: PCIe 5.0 x16
• CPU PCIEX16 slot for Ryzen 8000 Series Phoenix 1: PCIe 4.0 x8
• CPU PCIEX16 slot for Ryzen 8000 Series Phoenix 2: PCIe 4.0 x4
• CPU PCIEX8 slot for Ryzen 9000/7000 Series: PCIe 5.0 x8
• PCIEX8 slot for Ryzen 8000 Series Phoenix 1/Phoenix 2: unavailable
• Chipset slot: 1 x PCI Express x16, PCIe 4.0 x4
• CPU M.2 M2A_CPU: Socket 3, M key, type 2580/2280
• M2A_CPU for Ryzen 9000/7000 Series: PCIe 5.0 x4/x2 SSD
• M2A_CPU for Ryzen 8000 Series Phoenix 1/Phoenix 2: PCIe 4.0 x4/x2 SSD
• CPU M.2 M2B_CPU: Socket 3, M key, type 22110/2280
• M2B_CPU for Ryzen 9000/7000 Series: PCIe 5.0 x4/x2 SSD
• M2B_CPU for Ryzen 8000 Series Phoenix 1/Phoenix 2: unavailable
• Chipset M.2: 2 x M.2 Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD
• SATA: 4 x SATA 6 Gb/s
• NVMe SSD RAID: RAID 0, RAID 1, RAID 5, RAID 10
• NVMe RAID 5 note: available only with AMD Ryzen 9000 Series
• SATA RAID: RAID 0, RAID 1, RAID 10
• USB4: 2 x USB4 Type-C on the back panel
• USB 3.2 Gen 2x2 Type-C: 1 port on the back panel, 1 via internal header
• USB 3.2 Gen 2 Type-A: 5 ports on the back panel
• USB 3.2 Gen 1: 3 ports on the back panel, 4 via internal headers
• USB 2.0/1.1: 4 ports via internal headers
• Power connectors: 1 x 24-pin ATX, 2 x 8-pin ATX 12V
• Fan headers: 1 x CPU fan, 1 x CPU fan/water cooling pump, 4 x system fan, 2 x system fan/water cooling pump
• Lighting headers: 3 x addressable RGB Gen2 LED, 1 x RGB LED
• Additional internal connectors: front panel, front panel audio, noise detection, TPM, reset jumper, Clear CMOS jumper, 2 x temperature sensor

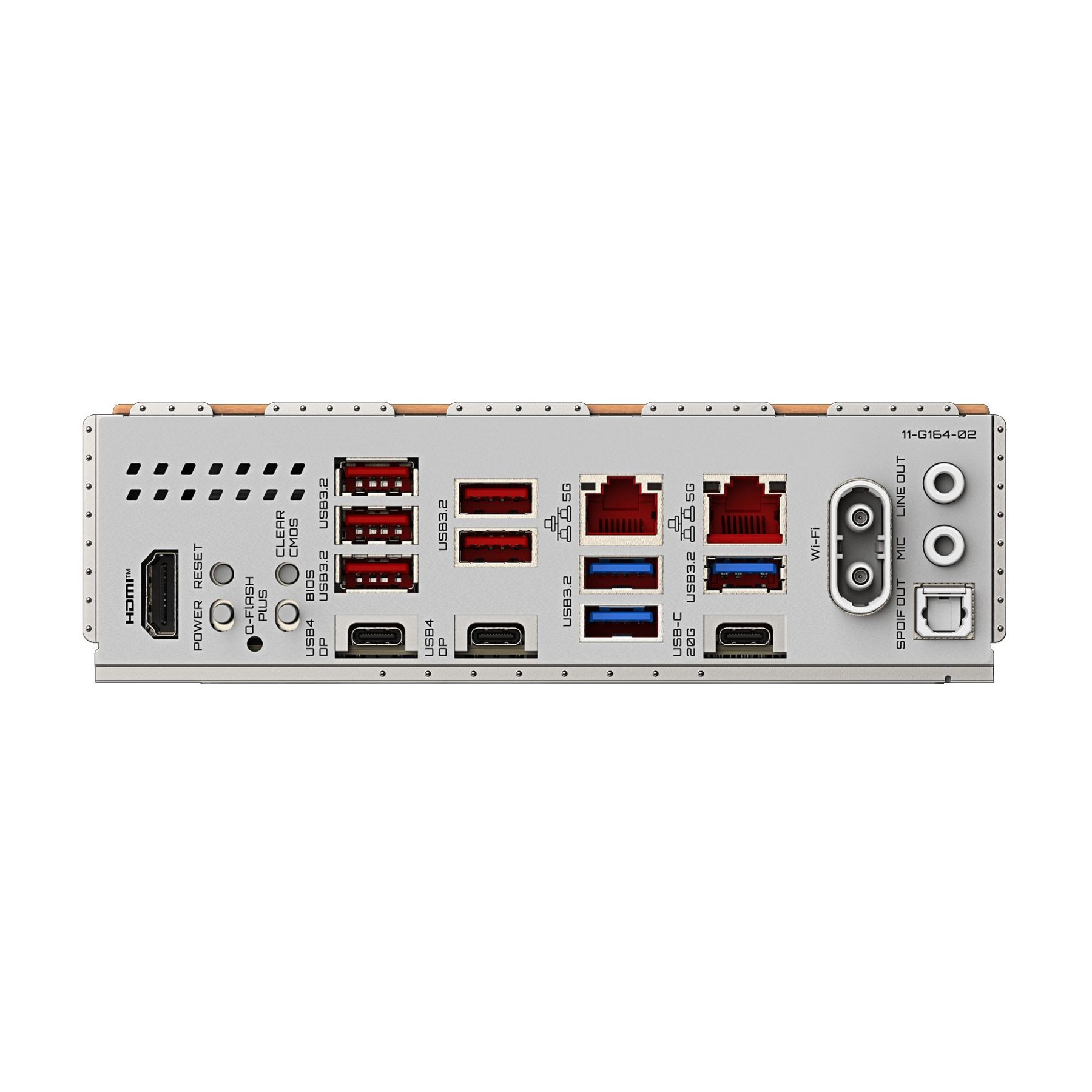

• Back panel: Q-Flash Plus button, Clear CMOS button, power button, reset button, HDMI, 2 x USB4 Type-C, USB Type-C 3.2 Gen 2x2, 5 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 2 x RJ-45, 2 x antenna, 2 x audio jacks, optical S/PDIF Out
• BIOS: 1 x 512 Mbit flash, AMI UEFI BIOS
• Operating system support: Windows 11 64-bit
• Wi-Fi 7 note: Wi-Fi 7 features require Windows 11 SV3
• Bundled software: Norton Internet Security OEM version

Who it's for

• PC builders working with high-performance AMD AM5 platforms
• users building systems with AMD Ryzen 9000, 8000 or 7000 Series processors
• workstation builders using the ATX form factor
• gamers needing PCIe 5.0, M.2 storage and a discrete graphics card
• users needing USB4, Wi-Fi 7 and dual 5GbE wired networking
• users working with multiple storage devices and high-speed peripherals

Conclusion

GIGABYTE X870E AERO X3D WOOD is an ATX motherboard for the AMD AM5 platform with the X870E chipset, DDR5 support up to 256 GB, PCIe 5.0, four M.2 storage connectors, USB4, Wi-Fi 7 and two 5GbE LAN controllers. The model is suitable for building a high-performance desktop system focused on fast interfaces, current-generation memory and extended connectivity.
