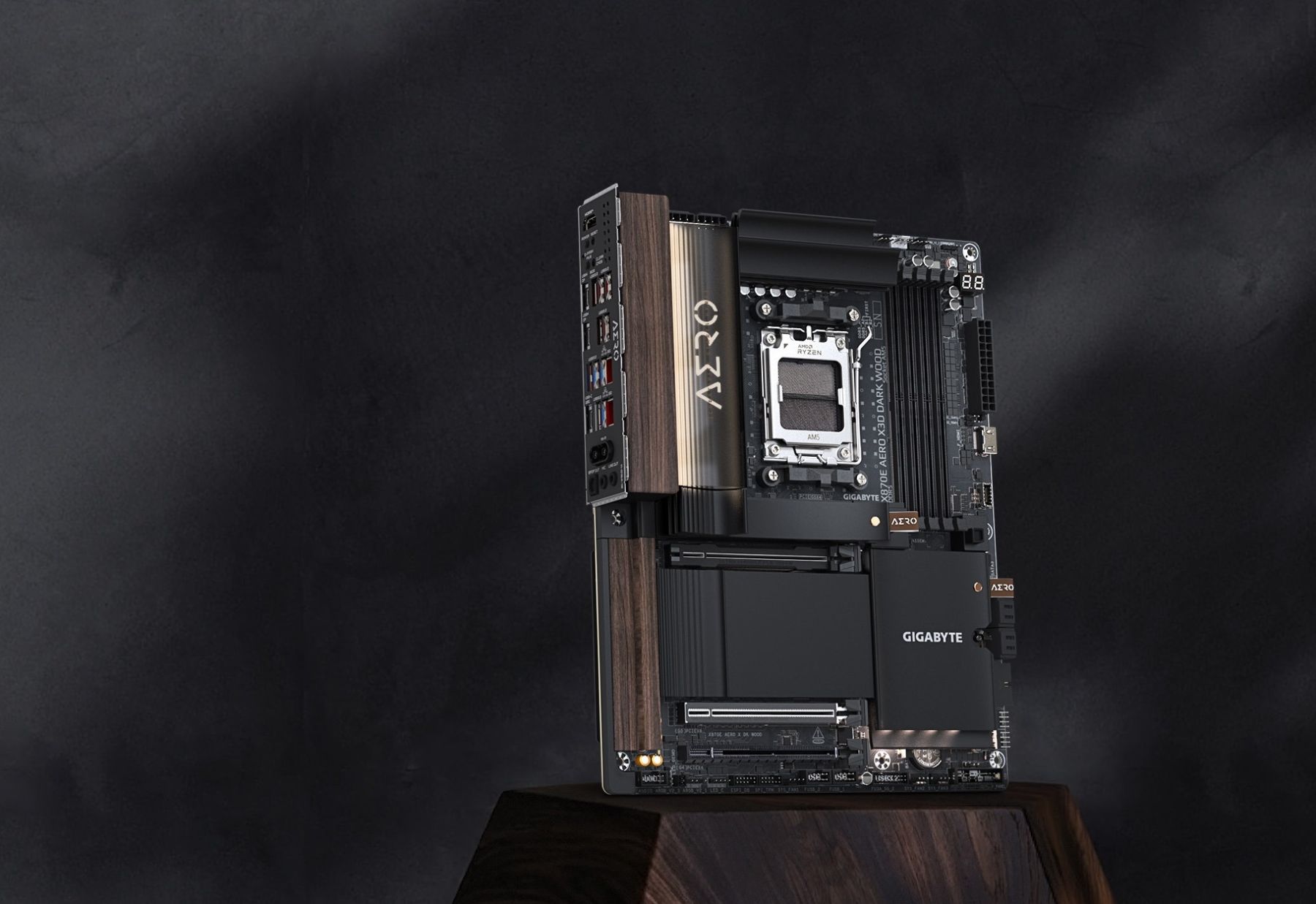

GIGABYTE Motherboard X870E AERO X DK WOOD sAM5 X870 4xDDR5 M.2 Wi-Fi BT HDMI ATX

Features

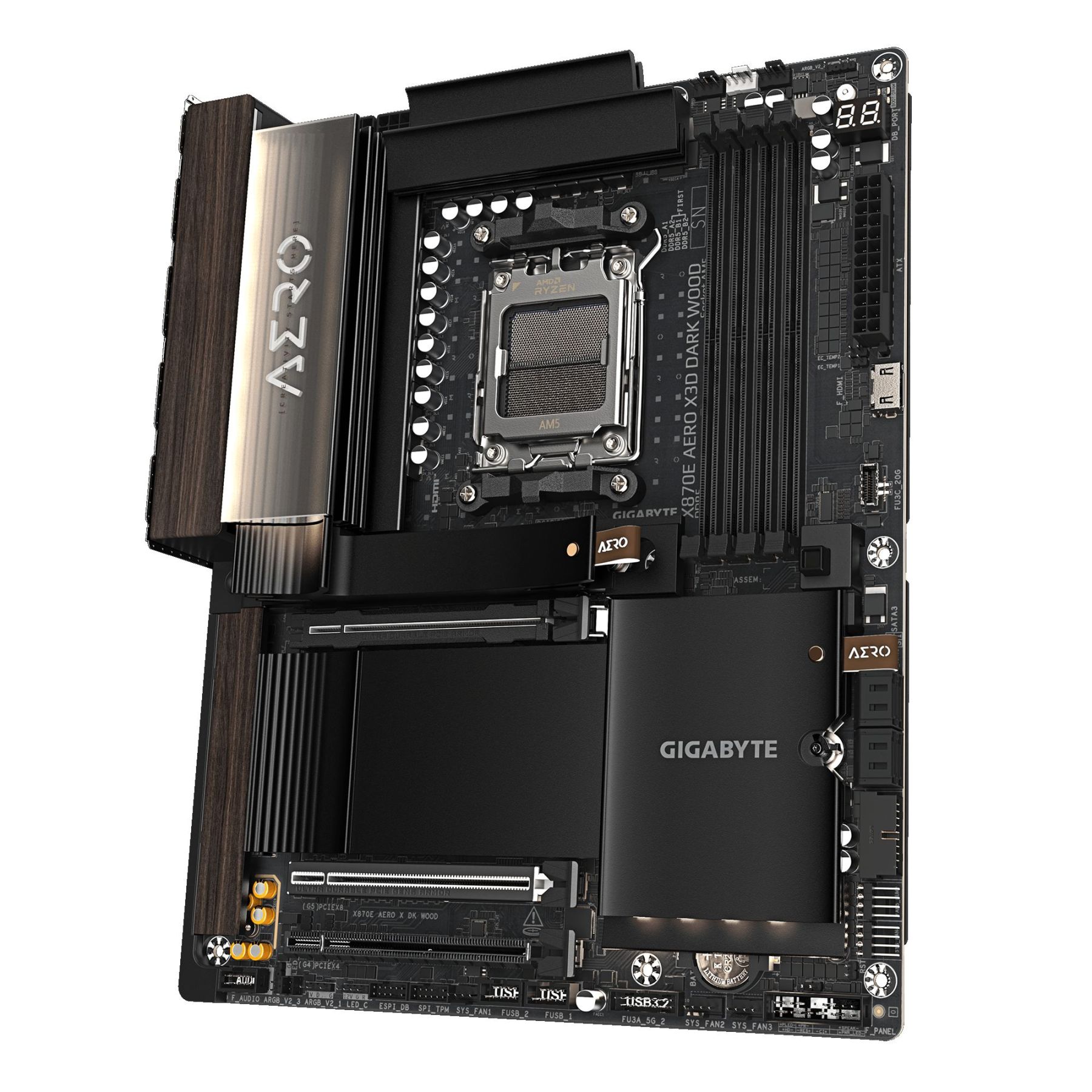

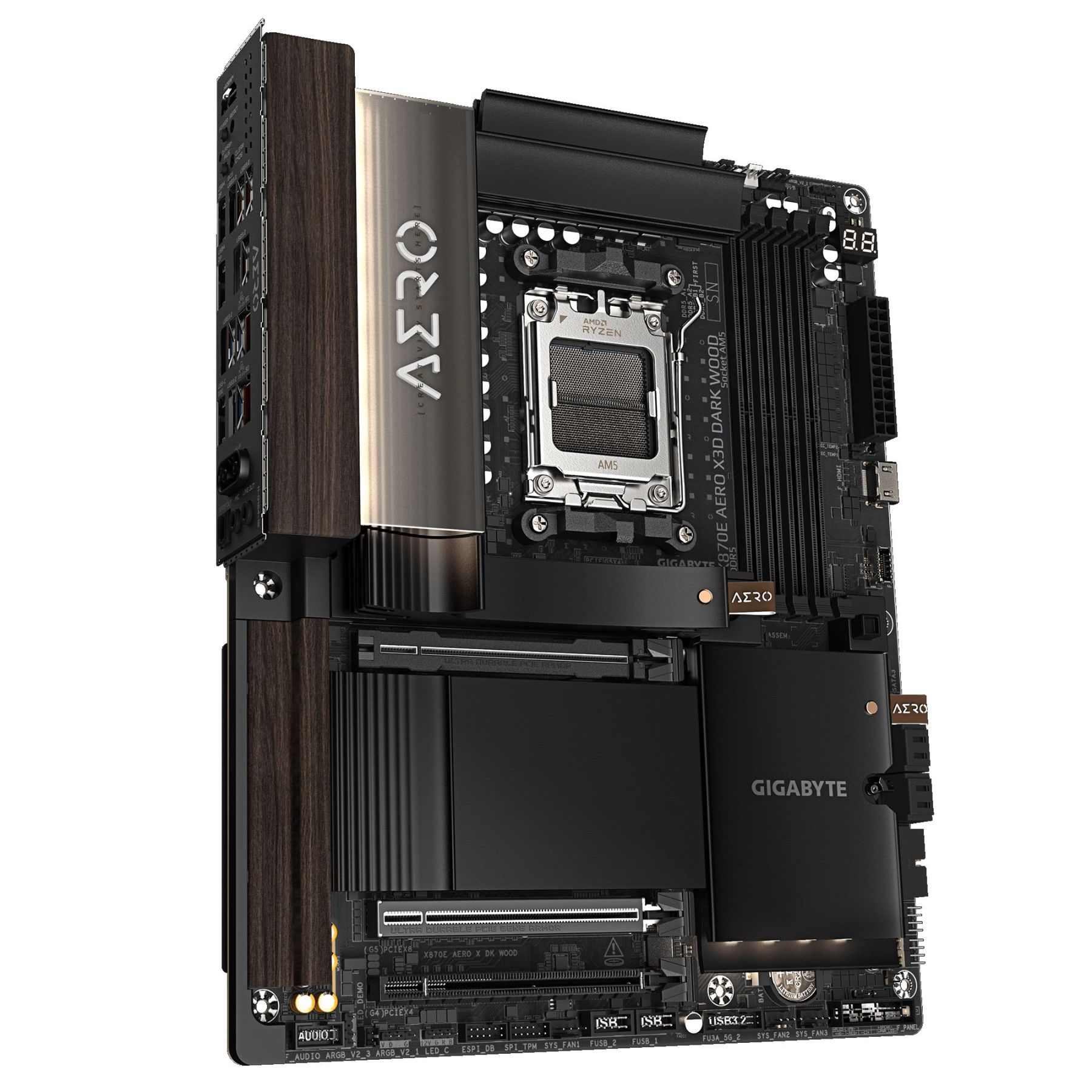

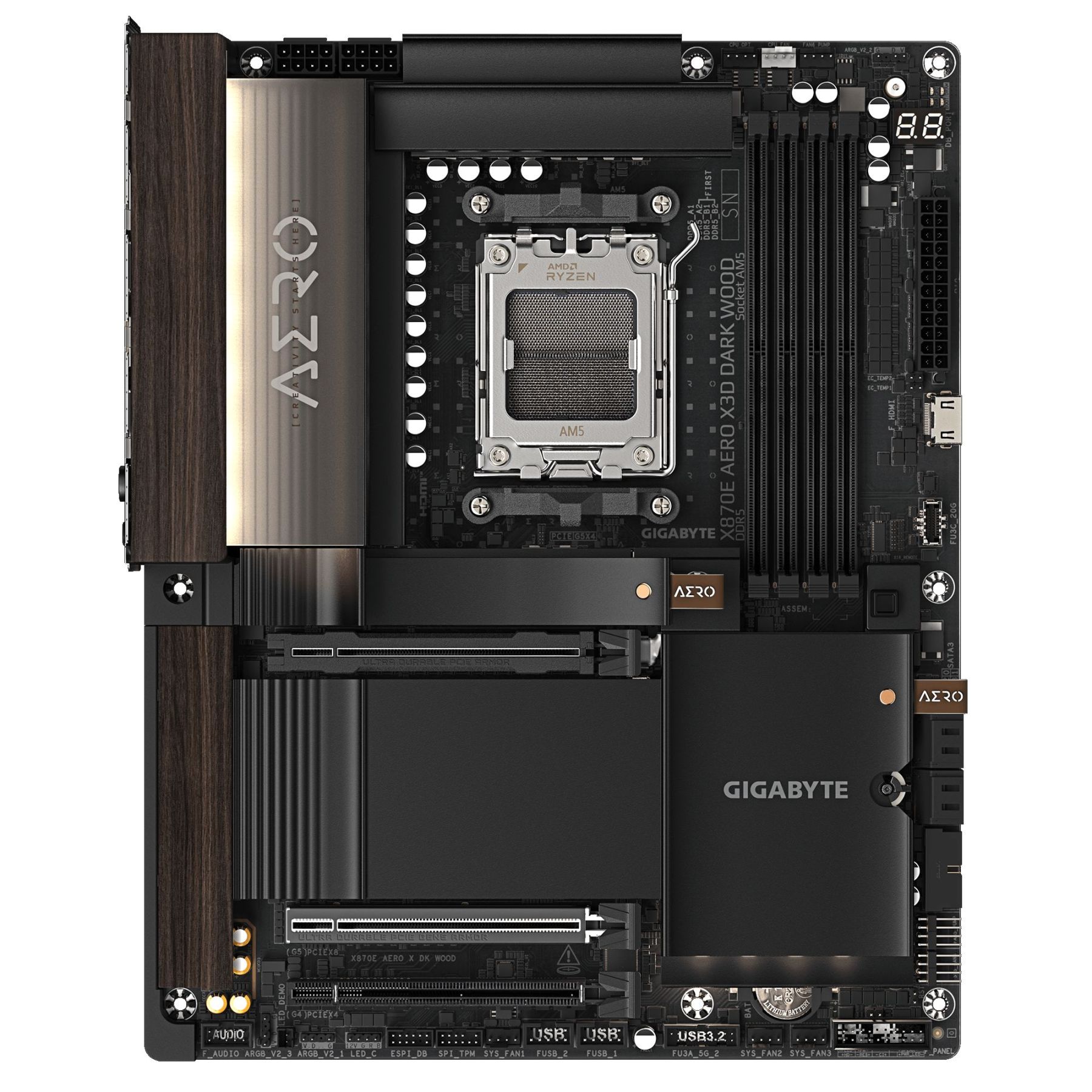

GIGABYTE X870E AERO X3D DARK WOOD is designed for modern systems based on the AMD AM5 platform. The board supports AMD Ryzen 9000, 8000 and 7000 series processors, making it suitable for gaming PCs, workstations, creative systems and configurations with room for future upgrades.

The AMD X870E chipset provides access to fast PCIe 5.0, USB4, DDR5 and modern networking features. Two full-length PCIe 5.0 slots, one PCIe 4.0 slot, four M.2 connectors and four SATA 6Gb/s ports allow configurations with a high-performance graphics card, multiple NVMe SSDs and classic SATA drives.

The 16+2+2 Twin Digital VRM power design, 8-layer PCB, 2X Copper PCB, reinforced power connectors and quality components are designed for stable CPU operation under sustained load. Two 8-pin ATX 12V power connectors are relevant for configurations with high-performance Ryzen processors.

The board supports 4 DDR5 DIMM modules with a total capacity of up to 256 GB. Frequencies up to 9000 MT/s in OC mode, dual-channel architecture, AMD EXPO and XMP provide room for memory tuning for games, work applications, rendering, photo processing, video and multitasking.

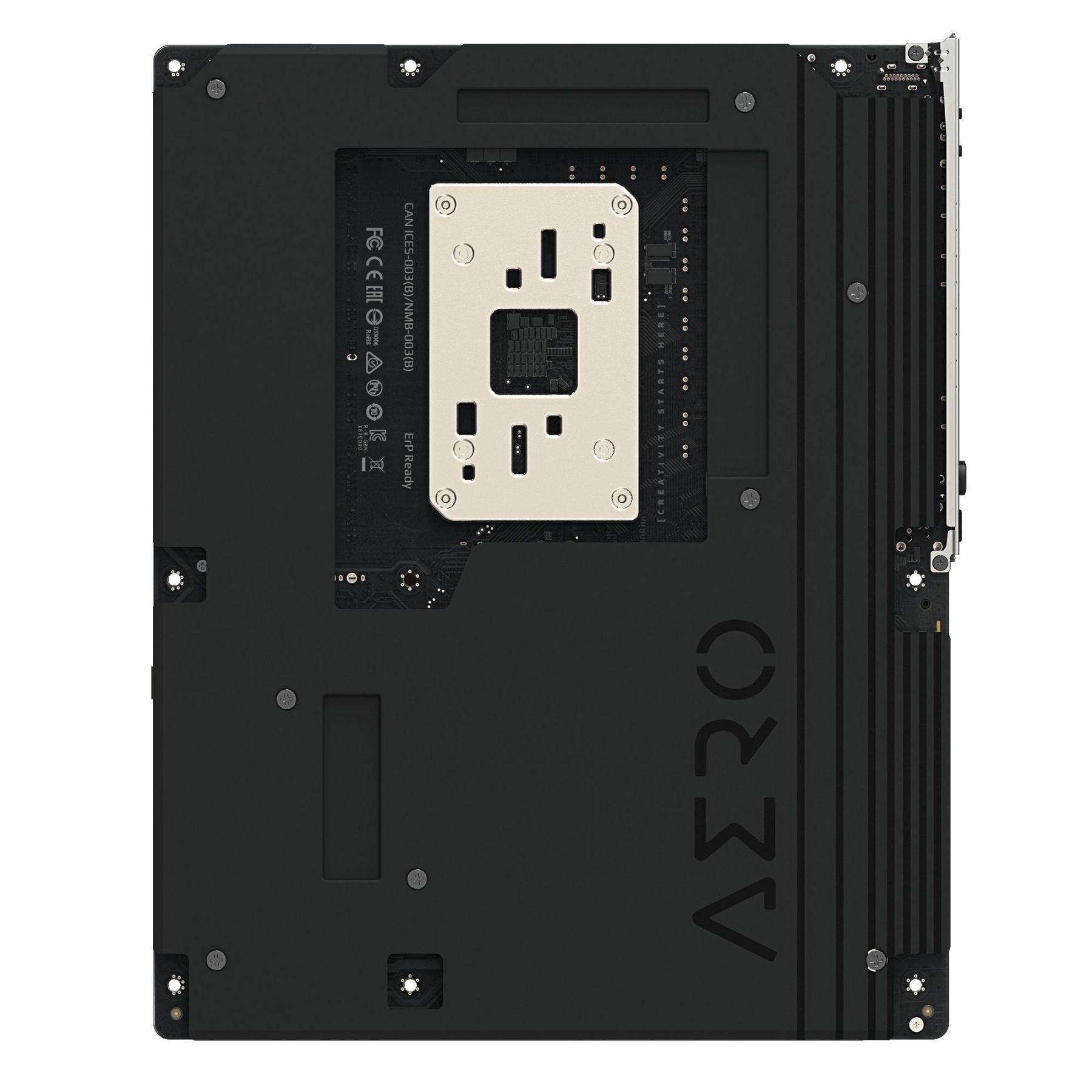

Cooling includes VRM Thermal Armor Advanced, direct-touch heatpipe, 7 W/mK thermal pads, M.2 Thermal Guard, M.2 Thermal Guard Ext., M.2 Thermal Guard L, M.2 EZ-Flex and a full-size metal plate on the back of the PCB. This construction helps remove heat from power components and fast SSDs during intensive work.

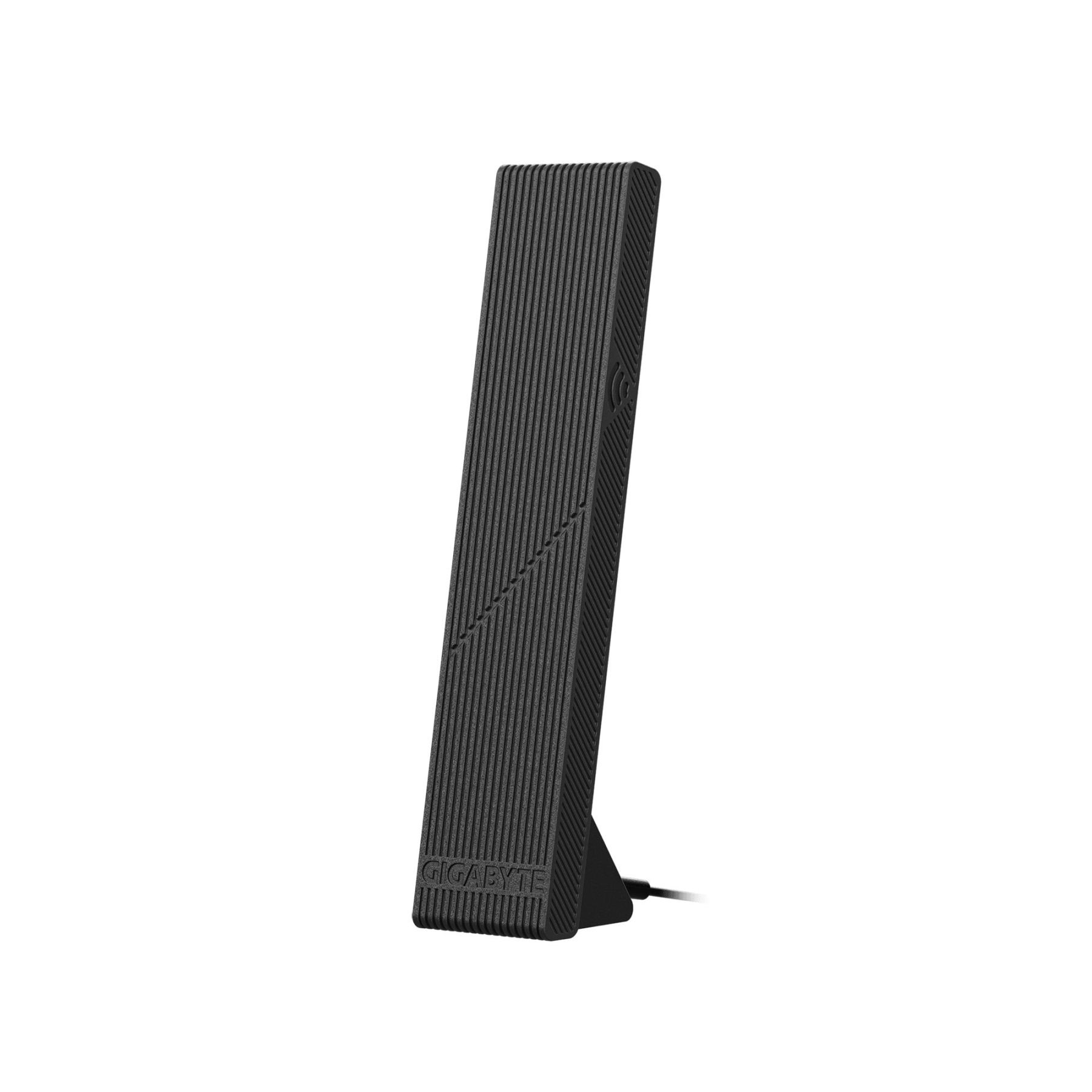

Networking is represented by two 5GbE LAN ports, Wi-Fi 7 with 2.4, 5 and 6 GHz bands, and Bluetooth 5.4. Dual USB4 Type-C with DisplayPort, USB 3.2 Gen 2x2 Type-C, HDMI, S/PDIF, Realtek ALC1220 8-channel audio, Q-Flash Plus, Clear CMOS, Power and Reset buttons simplify connection, diagnostics and system setup.

Technologies (used)

• AMD X870E
• Socket AM5
• AMD Ryzen 9000 Series
• AMD Ryzen 8000 Series
• AMD Ryzen 7000 Series
• 16+2+2 Twin Digital VRM
• 8-layer PCB
• 2X Copper PCB
• UD Solid Pin
• DDR5
• AMD EXPO
• XMP
• D5 Bionic Corsa
• X3D Turbo Mode 2.0
• Infinite Memory Performance
• PCIe 5.0 x16
• PCIe UD Slot X
• PCIe EZ-Latch Plus
• M.2 EZ-Latch Plus
• M.2 EZ-Latch Click
• M.2 EZ-Match
• M.2 Thermal Guard L
• M.2 Thermal Guard Ext.
• M.2 EZ-Flex
• VRM Thermal Armor Advanced
• PCB Thermal Plate
• Smart Fan 6
• USB4 Type-C
• DisplayPort over USB4
• HDMI 2.1
• Wi-Fi 7
• Bluetooth 5.4
• Dual 5GbE LAN
• WIFI EZ-Plug
• Realtek ALC1220
• S/PDIF Out
• RGB FUSION
• GIGABYTE Control Center
• Q-Flash Plus
• Smart Backup

Technical specifications

• Device type: motherboard
• Brand: GIGABYTE
• Model: X870E AERO X3D DARK WOOD
• Model code: X870E_AERO_X_DK_WOOD
• Form factor: ATX
• Dimensions: 30.5 x 24.4 cm
• Socket: AM5
• Supported processors: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
• Chipset: AMD X870E
• Memory type: DDR5
• Memory slots: 4 x DDR5 DIMM
• Maximum memory capacity: 256 GB
• Maximum single module capacity: 64 GB
• Memory architecture: dual channel
• Memory frequency support: up to 9000 MT/s OC
• DDR5 JEDEC support: 5200 / 4800 MT/s
• AMD EXPO support: yes
• XMP support: yes
• Non-ECC Un-buffered DIMM support: yes
• Main expansion slot: CPU PCIe x16
• Main slot mode with Ryzen 9000 / 7000: PCIe 5.0 x16
• Main slot mode with Ryzen 8000 Phoenix 1: PCIe 4.0 x8
• Main slot mode with Ryzen 8000 Phoenix 2: PCIe 4.0 x4
• Second expansion slot: CPU PCIe x16, PCIe 5.0 x8 mode for Ryzen 9000 / 7000
• Third expansion slot: chipset PCIe x16, PCIe 4.0 x4 mode
• Number of M.2 connectors: 4
• CPU M.2 M2A_CPU: PCIe 5.0 x4/x2 for Ryzen 9000 / 7000, Socket 3, M key, 2580 / 2280
• CPU M.2 M2B_CPU: PCIe 5.0 x4/x2 for Ryzen 9000 / 7000, Socket 3, M key, 22110 / 2280
• Chipset M.2 M2C_SB: PCIe 4.0 x4/x2, Socket 3, M key, 22110 / 2280
• Chipset M.2 M2D_SB: PCIe 4.0 x4/x2, Socket 3, M key, 22110 / 2280
• SATA: 4 x SATA 6Gb/s
• RAID for NVMe SSD: RAID 0, RAID 1, RAID 5, RAID 10
• RAID for SATA: RAID 0, RAID 1, RAID 10
• Audio codec: Realtek ALC1220
• Audio: High Definition Audio
• Audio channels: 2 / 4 / 5.1 / 7.1
• S/PDIF Out: yes
• LAN: 2 x Realtek 5GbE
• LAN speed: 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps
• Wireless module: MediaTek Wi-Fi 7 MT7927, RZ738
• Wi-Fi: 802.11 a/b/g/n/ac/ax/be
• Wi-Fi bands: 2.4 GHz, 5 GHz, 6 GHz
• Wi-Fi 7 320 MHz support: yes
• Bluetooth: 5.4
• Graphics outputs via USB4: 2 x USB4 Type-C with DisplayPort
• Maximum resolution via USB4 DisplayPort: 3840 x 2160 at 240 Hz
• Rear HDMI: 1
• Maximum HDMI resolution: 4096 x 2160 at 60 Hz
• HDMI support: 2.1, HDCP 2.3, HDR
• Internal front HDMI: 1
• Maximum front HDMI resolution: 1920 x 1080 at 30 Hz
• Rear USB4: 2 x USB Type-C
• USB 3.2 Gen 2x2 Type-C: 2 ports, 1 rear and 1 through internal header
• USB 3.2 Gen 2 Type-A: 5 rear ports
• USB 3.2 Gen 1: 7 ports, 3 rear and 4 through internal headers
• USB 2.0/1.1: 4 ports through internal headers
• Power connectors: 1 x 24-pin ATX, 2 x 8-pin ATX 12V
• Fan headers: 1 x CPU fan, 1 x CPU fan / water cooling pump, 4 x system fan, 2 x system fan / water cooling pump
• PWM/DC headers: 8
• RGB headers: 3 x addressable RGB Gen2, 1 x RGB LED
• Internal connectors: front panel, front panel audio, USB Type-C, USB 3.2 Gen 1, USB 2.0, noise detection, TPM, internal HDMI, reset jumper, Clear CMOS jumper, 2 x temperature sensor
• Rear buttons: Q-Flash Plus, Clear CMOS, Power, Reset

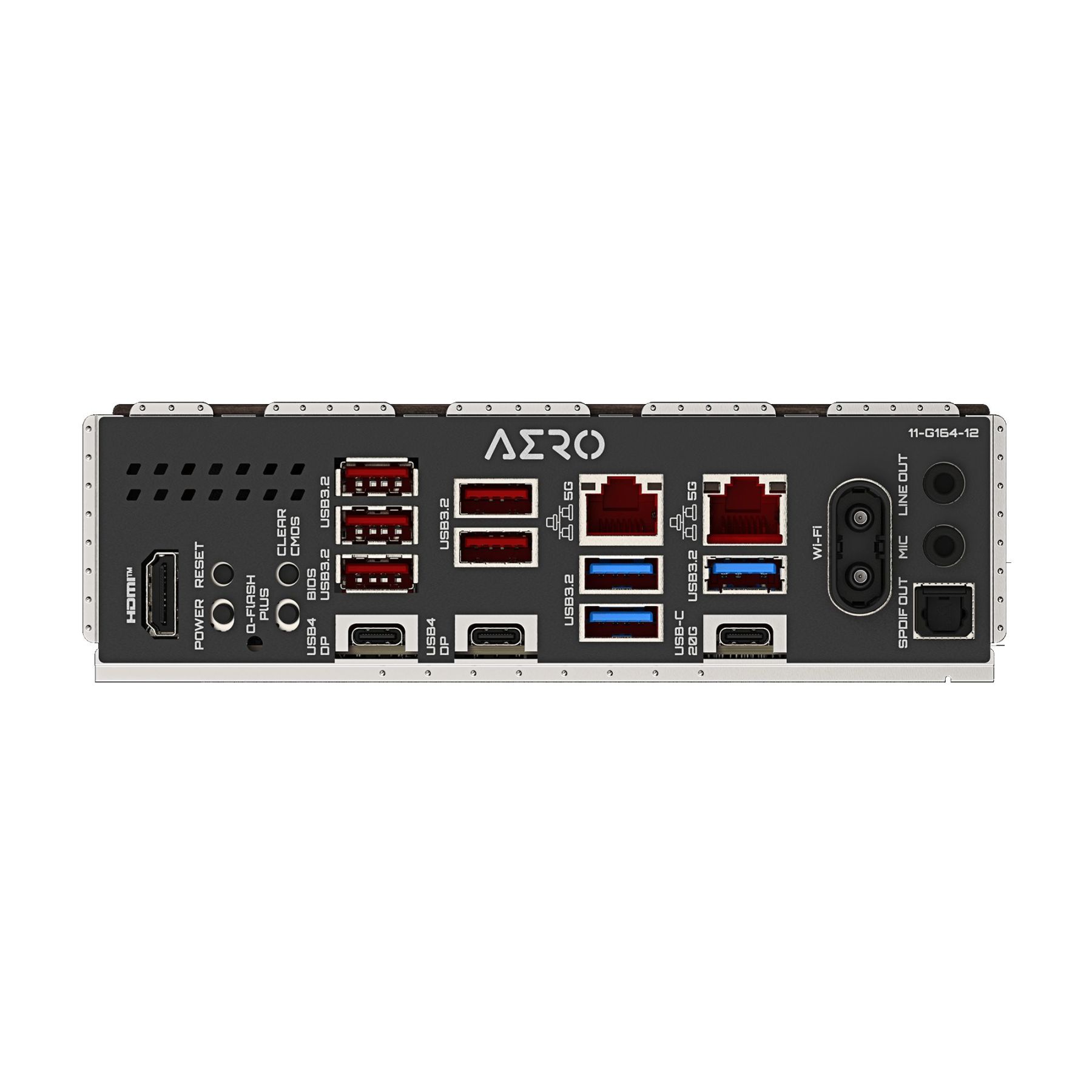

• Rear panel connectors: HDMI, 2 x USB4 Type-C, USB 3.2 Gen 2x2 Type-C, 5 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 2 x RJ-45, 2 x SMA antenna, 2 x audio jack, optical S/PDIF Out
• I/O controller: iTE I/O Controller Chip
• BIOS: AMI UEFI BIOS
• BIOS capacity: 512 Mbit
• BIOS features: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• GIGABYTE Control Center support: yes
• Q-Flash support: yes
• Q-Flash Plus support: yes
• Smart Backup support: yes
• Supported OS: Windows 11 64-bit
• Included items: no data available for the specified parameters

Who it's for

• For PC builders using the AMD AM5 platform
• For gamers using AMD Ryzen processors and PCIe 5.0
• For enthusiasts tuning DDR5, AMD EXPO, XMP and BIOS settings
• For content creators who need fast M.2 SSDs, USB4 and stable networking
• For designers and streamers building a system with attention to visual style
• For IT specialists building productive ATX workstations
• For people who need a board with Wi-Fi 7, dual 5GbE LAN, USB4 and four M.2 connectors

Conclusion

GIGABYTE X870E AERO X3D DARK WOOD is an ATX motherboard for AMD AM5 with the X870E chipset, Ryzen 9000 / 8000 / 7000 support, up to 256 GB DDR5, PCIe 5.0, four M.2 connectors, dual 5GbE LAN, Wi-Fi 7, Bluetooth 5.4, USB4 and advanced cooling. The model is suitable for productive gaming, creative and work systems where fast interfaces, upgrade potential and the distinctive Dark Wood design matter.
