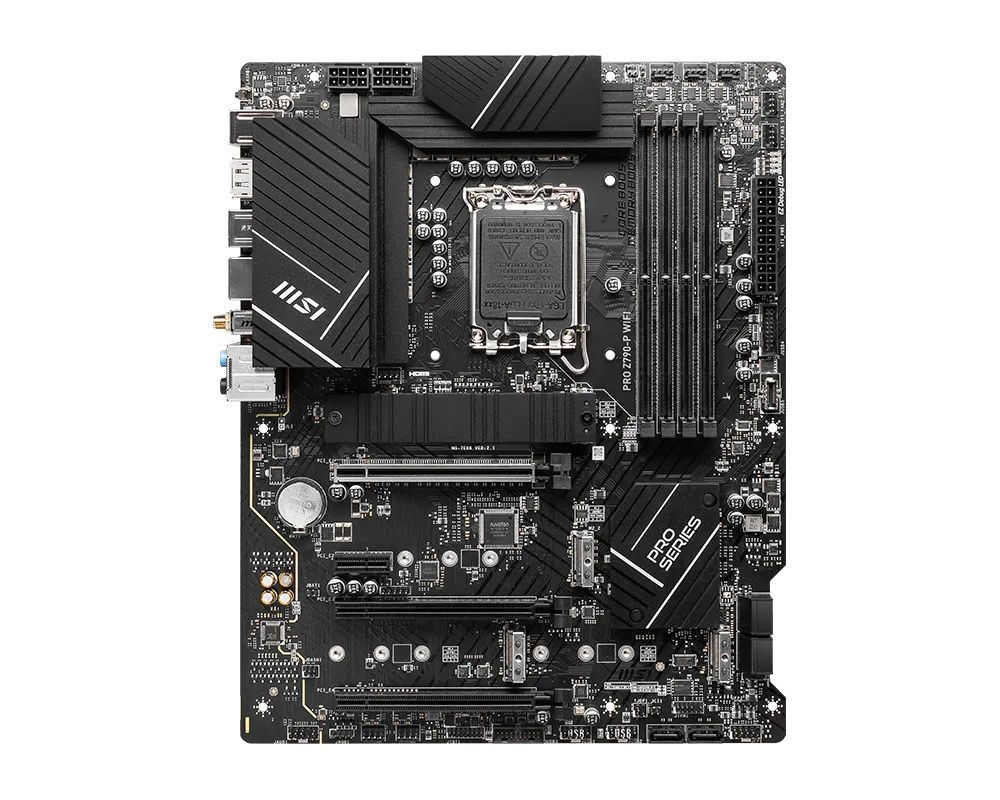

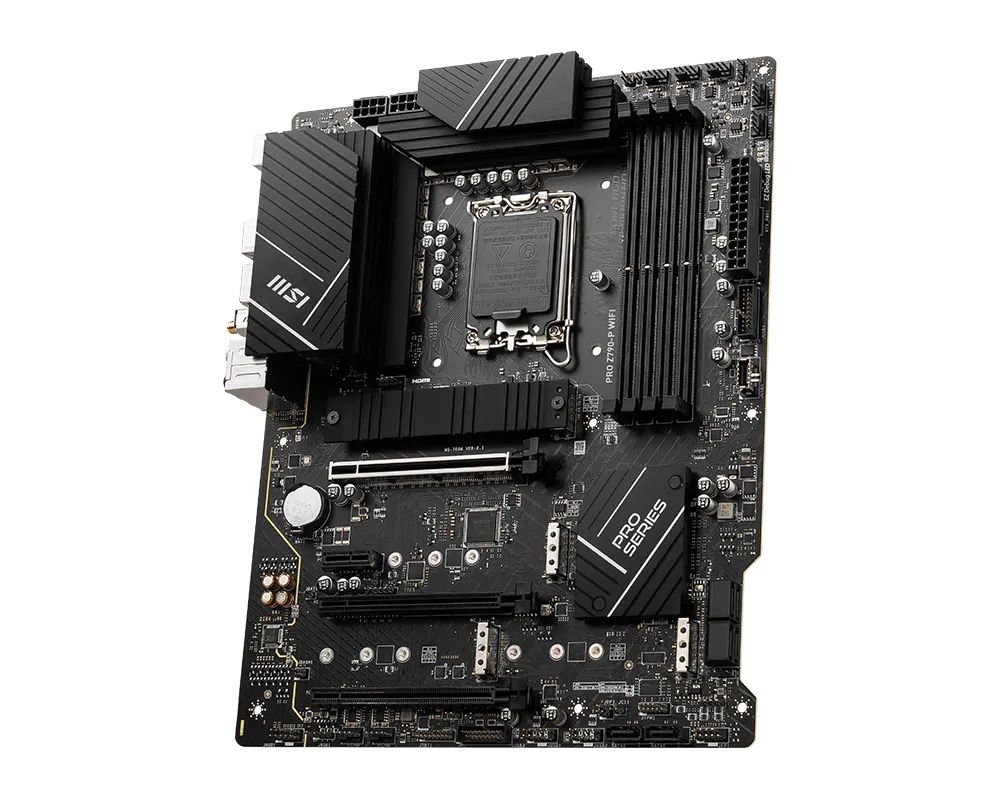

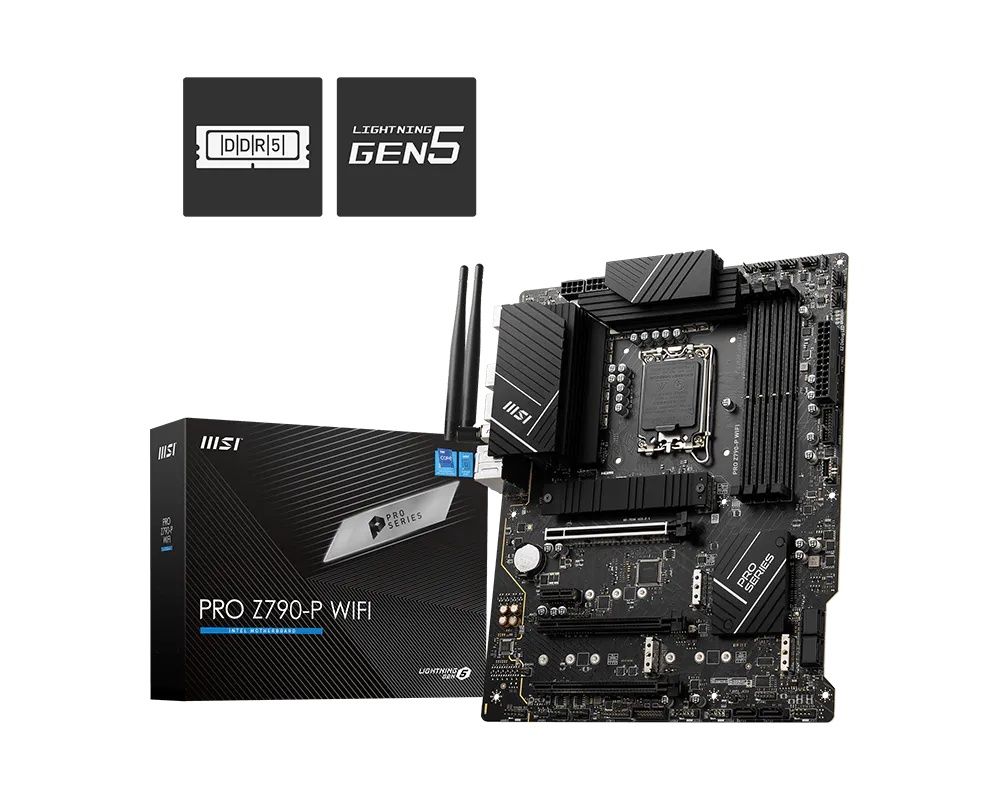

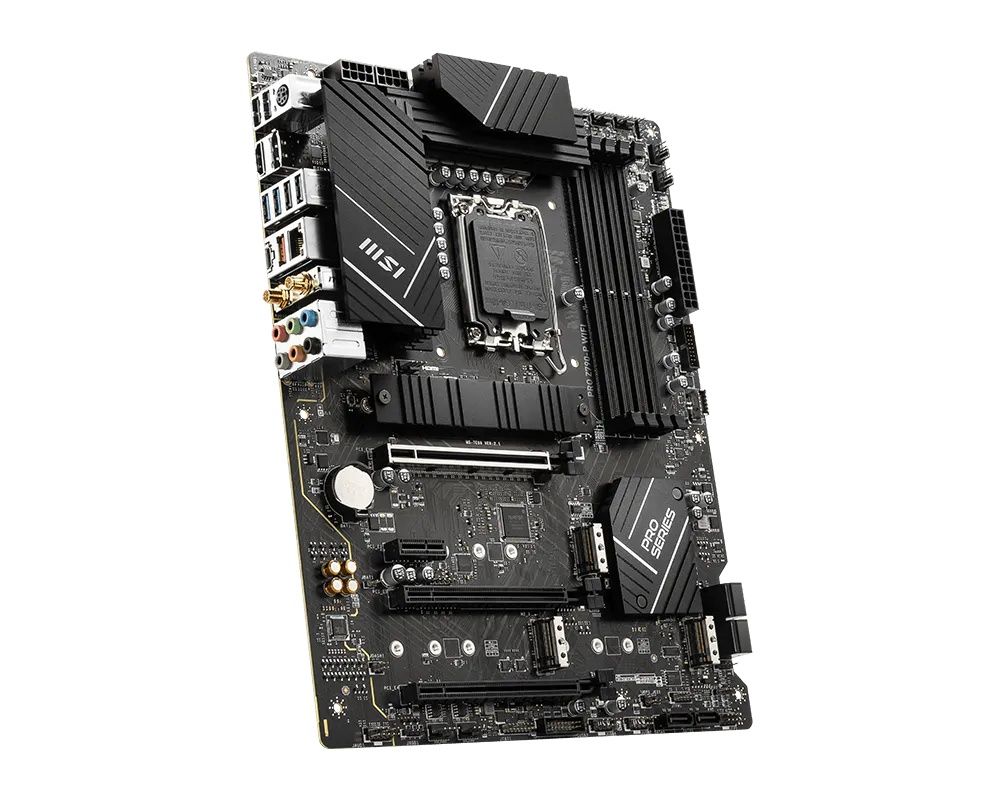

MSI Motherboard PRO Z790-P WIFI s1700 Z790 4xDDR5 M.2 HDMI DP Wi-Fi BT ATX

Features

The MSI PRO Z790-P WIFI motherboard delivers efficient operation with Intel Core 12th and 13th generation processors, enabling powerful systems for content editing or development. Four DDR5 slots with XMP 3.0 support and dual-channel mode optimize memory speed based on workload. Four M.2 slots with PCIe 4.0 x4 and RAID support streamline fast storage organization, while built-in HDMI and DisplayPort ports enable integrated graphics without a separate video card.

In usage scenarios, this board suits workstations needing quick data transfer via Wi-Fi 6E and 2.5G LAN, or gaming builds emphasizing overclocking. The 14+1+1 power system with 55A DrMOS modules ensures stability under high loads, with heatsinks and thermal pads maintaining optimal thermal conditions. Features like Mystic Light allow lighting customization, integrating the board into aesthetic configurations.

The Realtek ALC897 audio codec delivers 7.1-channel sound for clear audio in multimedia. Optimized PCB with 6 layers and 2 oz copper thickness minimizes interference, while the EZ M.2 clip simplifies drive installation. BIOS with Secure Boot and hardware monitoring adds security and control in daily operation.

Technologies (used)

• Duet Rail Power System: 14+1+1 phases for stable CPU power.
• Memory Boost: signal optimization for DDR5 with SMT slots.
• M.2 Shield Frozr: cooling for M.2 drives.
• Core Boost: multi-core processor support with premium components.
• Mystic Light: RGB lighting control without separate controllers.
• Audio Boost: isolated audio path for clean sound.
• EZ Debug LED: indicators for hardware issue diagnosis.

Technical specifications

• Part number: 911-7E06-091
• Series: PRO
• Chipset: Intel Z790
• Socket: LGA 1700
• Processor support: Intel Core 12/13 gen, Pentium Gold, Celeron
• Memory: 4x DDR5, up to 128 GB, overclock up to 7000+ MHz
• Expansion slots: 3x PCIe x16 (5.0/4.0/3.0), 1x PCIe x1
• Storage: 4x M.2 PCIe 4.0 x4 (with SATA mode), 6x SATA 6G
• RAID: 0/1/5/10 for SATA and M.2 NVMe
• Audio: Realtek ALC897, 7.1-channel
• Network: Intel 2.5Gbps LAN, Wi-Fi 6E (2.4/5/6 GHz), Bluetooth 5.3

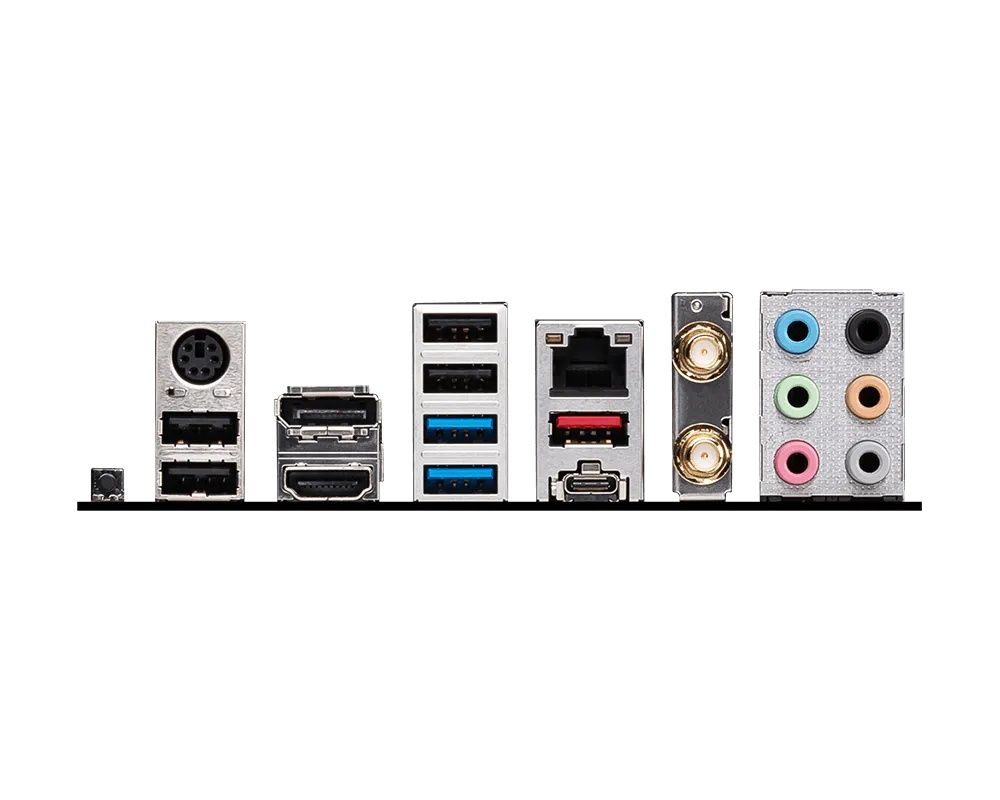

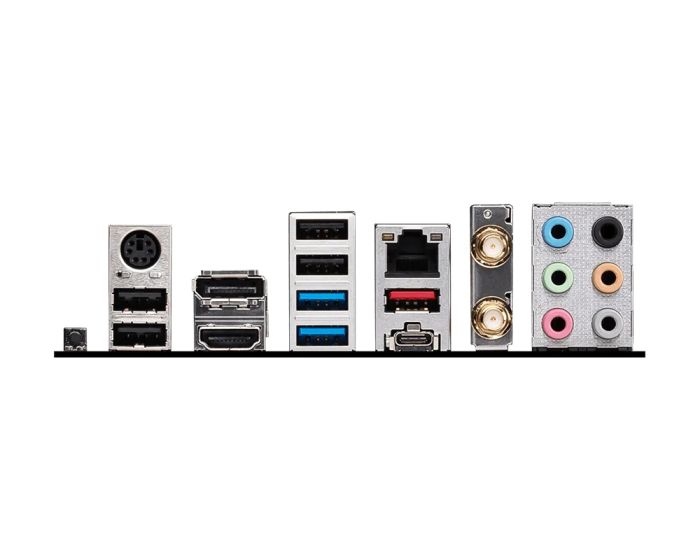

• USB ports: 8x USB 2.0, 6x USB 3.2 Gen1, 2x USB 3.2 Gen2 (Type-A/C), 1x USB 3.2 Gen2x2 Type-C
• Graphics: HDMI (4K 60Hz), DisplayPort (4K 60Hz)
• Form factor: ATX, 243.84 x 304.8 mm
• OS: Windows 11/10 64-bit

Who it's for

• Content creators working with large files and editing.
• Gamers focused on overclocking and stable performance.
• IT professionals building workstations with networking capabilities.
• System builders emphasizing customization with RGB and cooling.
• Multimedia users for systems with fast storage and audio.

Conclusion

This motherboard integrates modern interfaces with reliable cooling elements, making it a foundation for builds where performance and expansion balance is key.
