Features
The motherboard suits building budget systems where stable operation with latest-generation Intel processors is needed. The PCIe 4.0 x16 slot allows connecting a modern graphics card for light gaming or graphic tasks, while the M.2 slot with PCIe 3.0 x4 and SATA support ensures fast OS and app loading. Monitor ports — HDMI, DisplayPort, and VGA — provide flexibility in display choices, from office to multimedia setups.
In daily use, the board handles office software, web browsing, and basic photo or video editing. For home users, connecting peripherals via USB 3.2 Gen 1 is convenient, and Gigabit LAN offers stable connectivity for online work or streaming. RGB lighting connectors enable easy personalization of the build.
Technologies (used)
- PCI-E Steel Armor for reinforcing the graphics slot and shielding from electromagnetic interference
- Lightning Gen 4 PCI-E with 64 GB/s bandwidth for fast data transfer
- Enhanced DDR4 memory support with optimal settings for stable performance
- Audio Boost based on Realtek ALC892/ALC897 for 7.1-channel sound
- Intel Smart Response Technology for data storage optimization with Intel Core processors
Technical specifications
- Part number: 911-7D46-228
- Series: MSI PRO
- Processor: Supports Intel Core 14th/13th/12th gen, Pentium Gold and Celeron, LGA1700 socket
- Chipset: Intel H610
- Memory: 2x DDR4, up to 64 GB, speeds up to 3200 MHz, dual-channel mode, non-ECC
- Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2 E-key for WiFi
- Graphics: HDMI (4K 60Hz), VGA (up to 2048x1536 50Hz), DisplayPort (4K 60Hz)
- Storage: 4x SATA 6Gb/s, 1x M.2 (PCIe 3.0 x4/SATA, 2242/2260/2280)
- USB: 4x USB 3.2 Gen 1 5Gbps, 6x USB 2.0
- Audio: Realtek ALC892/ALC897, 7.1-channel
- Network: Intel I219V 1Gbps LAN
- Internal connectors: 24-pin ATX, 8-pin 12V, CPU/system fan, front audio, system panels, chassis intrusion, TPM, serial port
- Lighting: 1x 4-pin RGB, 2x 3-pin RAINBOW

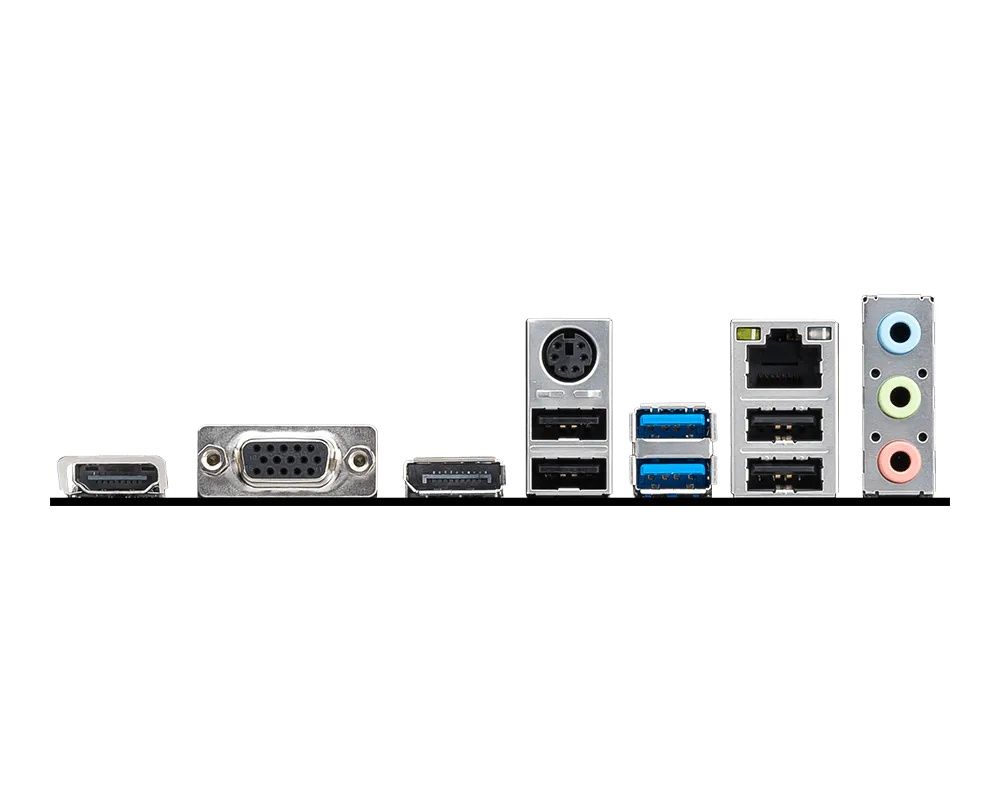

- Rear connectors: HDMI, VGA, DisplayPort, PS/2, 2x USB 3.2 Gen 1 Type-A, LAN, audio, 4x USB 2.0
- Form factor: mATX, 24.4 x 21.1 cm
Who it's for
- Budget PC builders
- Office workers with basic tasks
- Home users for multimedia
- Beginners in computer hardware
Conclusion
The motherboard combines essential features with modern interfaces, making it a practical choice for straightforward systems.
-

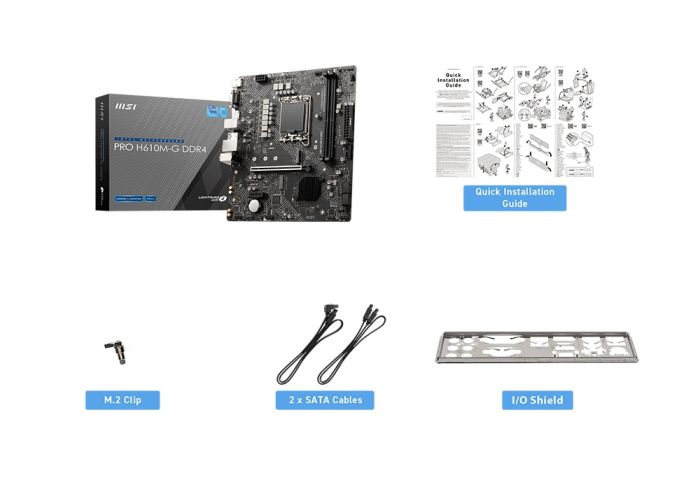

Box Contains:SATA Cable, I/O shield, Quick guide, M.2 Clip
-
Towards:gaming (overclocking)
-
Form Factor:micro-ATX
-
For processors:Intel
-
Connection type:LGA1700
-
Northbridge (chipset):Intel H610
-
Connector type:DDR4
-
DDR4:2 slots
-
Maximum operating frequency MHz:3200
-
The maximum amount of memory GB:64
-
Graphical interface:PCI-E x16 4.0
-
HDMI Output:Yes
-
Sound:7.1
-
Connection interface:SATA 3, M.2
-
SATA3 (6 Gb / s):4 ports
-
LAN (RJ-45):1 Gbps
-
Number of LAN-ports:1
-
LAN-Controller Model:Intel I219V
-
USB 2.0 pcs:6
-
USB 3.2 Gen 1:4
-
M.2 connector:1
-
PS/2 pcs:1
-
Main power connector:24+8 -pin
-
D-Sub (VGA):Yes
-
Аudiochip:Realtek ALC897, Realtek ALC892
-
Display Port:Yes
-
Dimensions (HxW):244 x 211
-
Features:clear CMOS jumper, Front panel audio connector, system panel connector, CPU Fan Connector, TPM connector, EZ Debug LED, RGB LED connector, System Fan Connector, Chassis Intrusion connector, 3-pin RAINBOW LED connectors, Serial port connector
