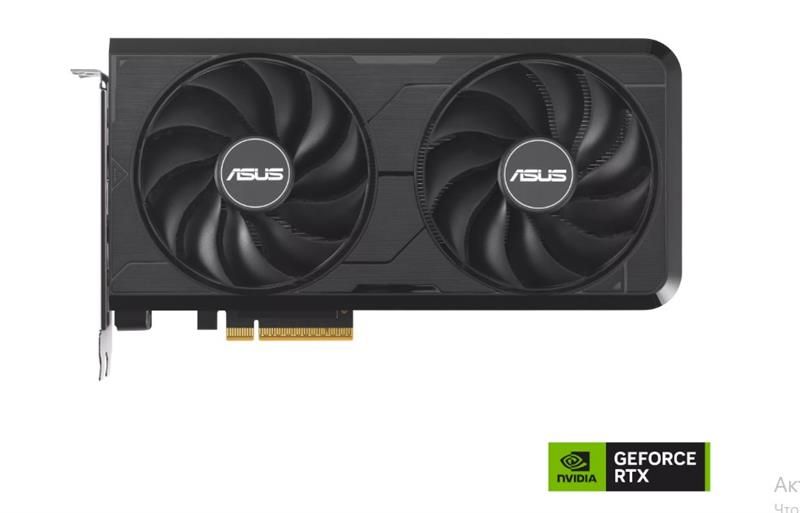

ASUS Graphic Card GeForce RTX 5060 8GB GDDR6 OC DUAL-RTX5060-O8G-EVO

Features

ASUS Dual GeForce RTX 5060 EVO OC 8GB GDDR7 is a mid-range graphics card on NVIDIA Ada Lovelace architecture with factory overclock. RTX 5060 GPU has 3840 CUDA cores, 614 TOPs AI performance, default Boost Clock 2535 MHz and up to 2565 MHz in OC mode. GDDR7 memory 8 GB runs at 28 Gbps with 128-bit bus and PCI Express 5.0 interface.

Card equipped with three DisplayPort 2.1b and one HDMI 2.1b with HDCP 2.3 support, allowing up to 4 displays at max resolution 7680×4320. Recommended PSU 550 W, one 8-pin power connector. Dimensions 225 × 120 × 42 mm (2.1 slots), compact Dual design fits most cases.

Suitable for modern 1440p gaming with high settings and ray tracing thanks to DLSS 4. Also handles 4K content, graphics work and AI tasks well. Package includes speed setup guide and thank you card.

Technologies (used)

• NVIDIA Ada Lovelace architecture — Ray Tracing, DLSS 4 and AI processing support.
• GDDR7 memory — 28 Gbps speed for high bandwidth.
• PCI Express 5.0 — interface for maximum data transfer rate.
• ASUS Dual EVO — factory overclock, efficient dual-fan cooling and low noise.
• HDMI 2.1b and DisplayPort 2.1b support — high resolution and refresh rate.

Technical specifications

• Model: DUAL-RTX5060-O8G-EVO
• GPU: NVIDIA GeForce RTX 5060
• AI performance: 614 TOPs
• Video memory: 8 GB GDDR7
• Memory speed: 28 Gbps
• Memory interface: 128-bit
• CUDA cores: 3840
• GPU clock:
  • Boost Clock (OC): 2565 MHz
  • Boost Clock (Default): 2535 MHz
• Interface: PCI Express 5.0
• Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b
• Max resolution: 7680×4320
• Display support: up to 4
• Recommended PSU: 550 W
• Power connectors: 1×8-pin
• Dimensions: 225 × 120 × 42 mm
• Slots: 2.1
• Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready & Studio Driver
• Article number: 90YV0NS0-M0NB00

Who it's for

• Gamers wanting comfortable 1440p play with ray tracing and DLSS 4
• Users working with graphics, rendering and AI tasks at mid-level
• Owners of PCIe 5.0 systems with 550 W+ PSU
• People seeking compact 2.1-slot card with good cooling
• ASUS brand and Dual EVO series fans

Conclusion

ASUS Dual GeForce RTX 5060 EVO OC 8GB GDDR7 is a graphics card with 8 GB GDDR7, clock up to 2565 MHz and PCI Express 5.0 support. Features three DisplayPort 2.1b and HDMI 2.1b, recommended PSU 550 W. Suitable for modern 1440p gaming and graphics work with DLSS 4 and Ray Tracing. Compact (2.1 slots), quiet and reliable Dual EVO model.
