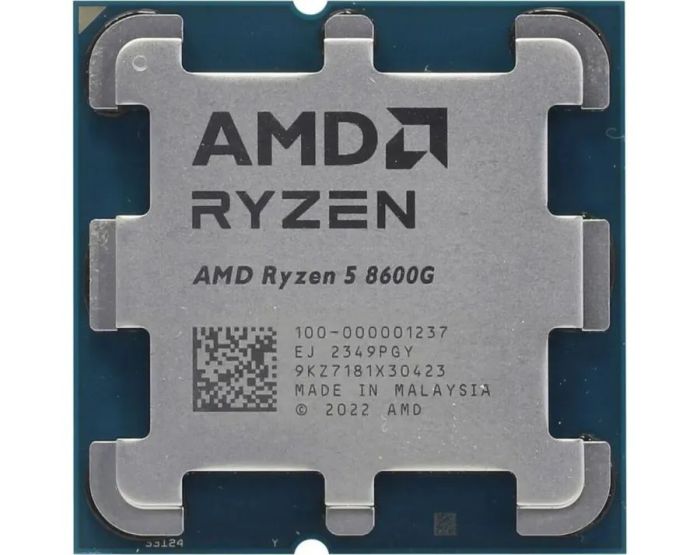

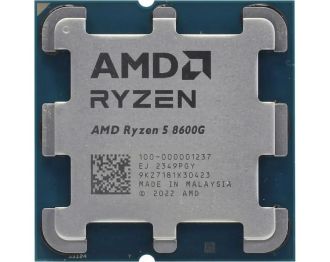

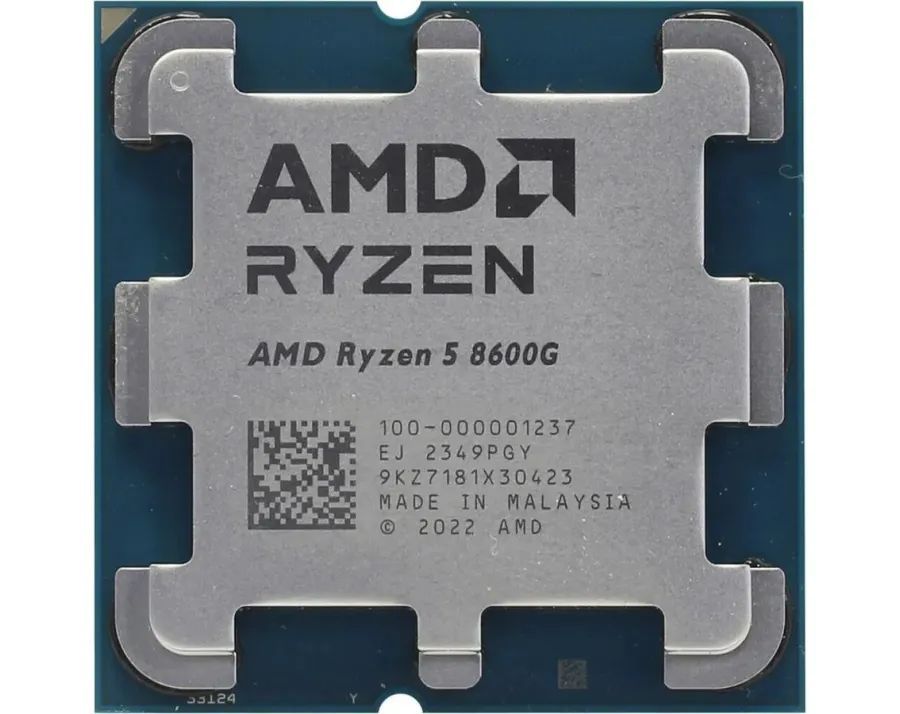

AMD CPU Ryzen 5 8600G 6C/12T 4.3/5.0GHz Boost 16Mb Radeon Graphics AM5 65W w/o cooler TRAY

Features

AMD Ryzen 5 8600G is based on the Zen 4 architecture and a 4 nm manufacturing process. Six processing cores and twelve threads support parallel execution of everyday, office, educational and multimedia workloads.

The processor operates at a base clock of 4.3 GHz, while Precision Boost 2 increases the frequency up to 5.0 GHz according to workload, temperature and power conditions. The cache configuration includes 6 MB of L2 cache and 16 MB of L3 cache.

Integrated AMD Radeon 760M graphics feature eight graphics cores operating at up to 2800 MHz. The graphics processor supports DirectX 12, multiple displays and hardware processing of modern video formats. This configuration enables office work, multimedia playback and less demanding games without a discrete graphics card.

The integrated AMD Ryzen AI engine provides performance of up to 16 TOPS for compatible artificial intelligence workloads. Processing can be performed locally without continuous data transfer to remote servers when software supports the corresponding hardware acceleration.

The AM5 socket, dual-channel DDR5 controller and PCIe 4.0 support enable integration into modern desktop configurations. An unlocked multiplier, Precision Boost Overdrive, Curve Optimizer and AMD Ryzen Master provide tools for adjusting system operating parameters.

Technologies (used)

• AMD Zen 4 architecture
• AMD Ryzen AI
• AMD Radeon 760M
• AMD Simultaneous Multithreading
• Precision Boost 2
• Precision Boost Overdrive
• Curve Optimizer
• AMD Ryzen Master
• AMD EXPO
• AMD FreeSync
• AMD SmartAccess Memory
• PCI Express 4.0
• DirectX 12
• AMD-V

Technical specifications

• Device type: desktop central processing unit
• Series: AMD Ryzen 8000G
• Architecture: Zen 4
• Codename: Phoenix
• Manufacturing process: 4 nm
• CPU cores: 6
• Threads: 12
• Base clock: 4.3 GHz
• Maximum boost clock: up to 5.0 GHz
• L2 cache: 6 MB
• L3 cache: 16 MB
• Total L2 and L3 cache: 22 MB
• Default thermal design power: 65 W
• Configurable thermal design power: 45 to 65 W
• Maximum operating temperature: 95 °C
• CPU socket: AM5
• Unlocked multiplier: supported
• Memory type: DDR5
• Memory channels: 2
• Maximum memory capacity: 256 GB
• Maximum standard memory speed with two modules: DDR5-5200
• PCI Express version: 4.0
• PCI Express lanes: 20 total, 16 usable
• NVMe support: boot, RAID 0, RAID 1
• Integrated graphics: AMD Radeon 760M
• Graphics cores: 8
• Graphics frequency: up to 2800 MHz
• DirectX support: DirectX 12
• Maximum displays: 4
• AMD Ryzen AI engine performance: up to 16 TOPS

Who it's for

• Office employees
• Home users
• Students and educators
• Software developers
• Remote-working professionals
• Entry-level multimedia content creators
• Players of less demanding and esports games
• Specialists assembling compact desktop systems

Conclusion

AMD Ryzen 5 8600G combines six Zen 4 cores, twelve threads, a boost clock of up to 5.0 GHz and integrated Radeon 760M graphics. DDR5 memory, PCIe 4.0, the AM5 platform and the Ryzen AI engine support office work, education, multimedia and desktop systems without a separate graphics card.
