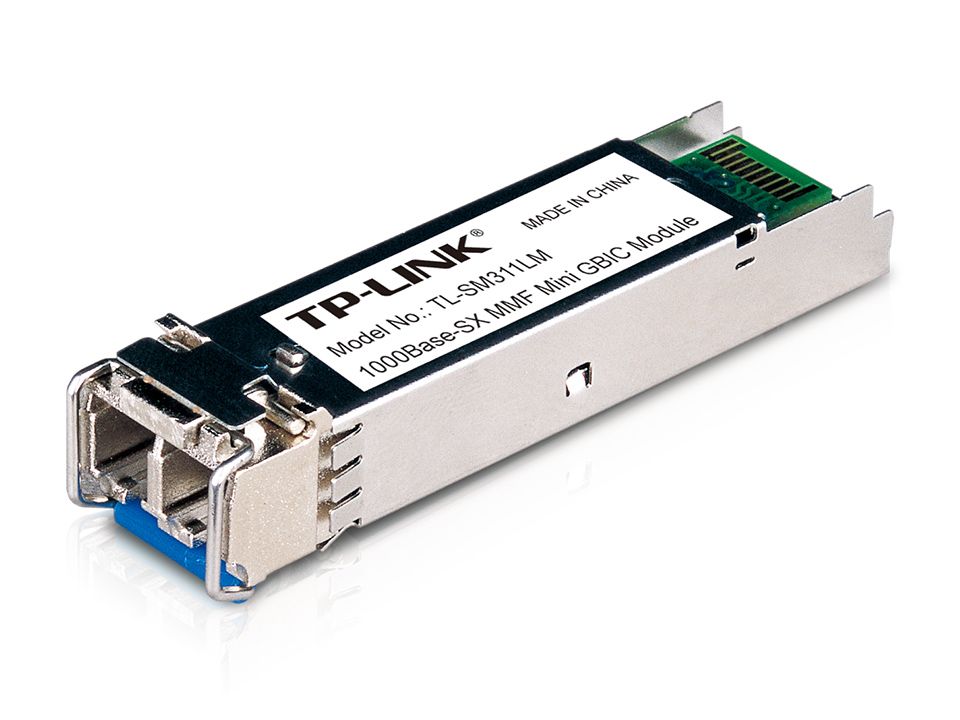

TP-LINK SFP-Transceiver 1x1000BaseSX, MM, 550m, LC TP-Link SM311LM

Features

The transceiver is designed for Gigabit connections over multimode fiber networks. Support for the 1000Base-SX standard ensures stable data transmission within local infrastructure.

It operates at an 850 nm wavelength, suitable for short to medium distances. Maximum transmission distance reaches up to 550 meters depending on fiber type.

An LC connector provides compact connectivity and compatibility with modern networking equipment. Standard multimode fiber types are supported.

The device is compatible with a wide range of TP-Link switches and media converters. This simplifies integration into existing networks.

The module features an SFP form factor and operates at 3.3 V power. It complies with safety and electromagnetic standards.

Technologies (used)

• IEEE 802.3z
• CSMA/CD
• TCP/IP

Technical specifications

• Form factor: SFP
• Standard: 1000Base-SX
• Data rate: 1.25 Gbps
• Wavelength: 850 nm
• Cable type: multimode fiber
• Fiber types: 50/125 µm, 62.5/125 µm
• Max distance: 550 m
• Connector: LC
• Power: 3.3 V
• Operating temperature: 0 to 40 °C
• Storage temperature: -40 to 70 °C

Who it's for

• network administrators
• network engineers
• installation technicians
• telecom specialists
• infrastructure engineers

Conclusion

The transceiver provides stable Gigabit connectivity over multimode fiber. Suitable for deployment in local network environments requiring reliable optical links.
