SIP ATA Gateway, 1xFXS port (RJ-11), 1xFE LAN, 2 SIP lines, Micro USB x1 Fanvil GA10

Features

The Fanvil GA10 is designed to integrate an analogue telephone into an IP telephony infrastructure. One FXS port with an RJ-11 connector provides the telephone connection, while support for two SIP accounts enables operation with two lines.

The gateway supports wideband voice transmission with G.722 and Opus codecs, as well as several narrowband codecs. Echo cancellation, noise reduction, automatic gain control, and packet loss concealment help maintain consistent speech reproduction across networks with different connection conditions.

Call functions include waiting, hold, forwarding, attended and unattended transfer, three-way conferencing, Do Not Disturb, and voice message indication. Direct IP dialling, hotline mode, anonymous calling, and allowed and blocked number lists are also supported.

Network access is provided through a 10/100 Mbps Ethernet port. The gateway operates with IPv4 and IPv6 and supports static IP configuration, DHCP, PPPoE, VLAN, and firewall functions. TLS and SRTP can be used to protect signalling and voice traffic.

Configuration is available through a web interface and voice menu. Automatic provisioning is supported through FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, and TR-069. Configuration import and export, backup and recovery, firmware upgrades, and system logging are also available.

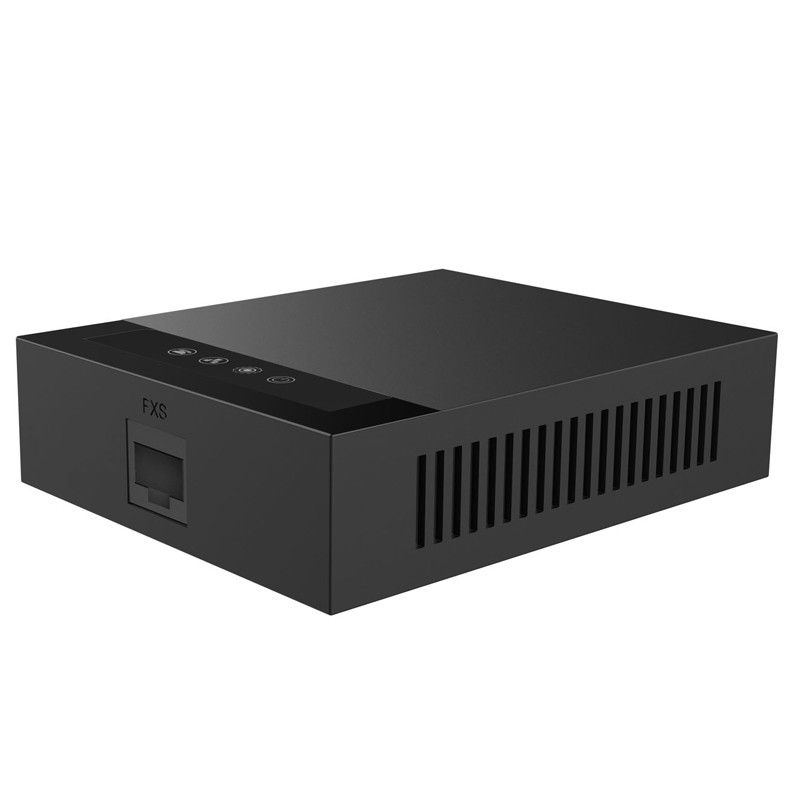

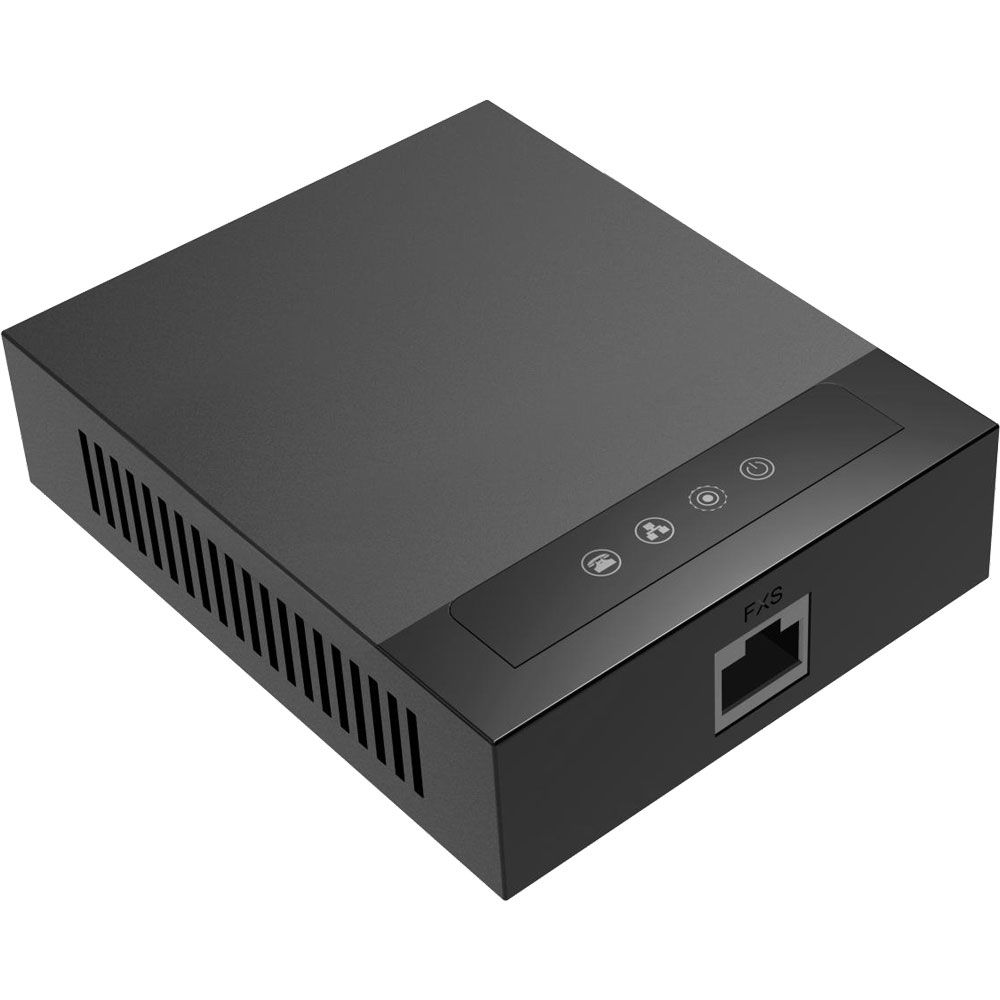

The compact 85 × 68 × 22.7 mm enclosure supports desktop or wall-mounted installation. Four indicators show power, network, SIP registration, and call status. Power can be supplied through Micro USB or the 5 V DC input.

Technologies (used)

• SIP 2.0
• HD Voice
• G.722 and Opus codecs
• AEC echo cancellation
• VAD voice activity detection
• CNG comfort noise generation
• NR noise reduction
• AGC automatic gain control
• PLC packet loss concealment
• Dynamic adaptive jitter buffer
• TLS and SRTP encryption
• Automatic provisioning
• IPv4 and IPv6 support
• VLAN

Technical specifications

• Device type: ATA VoIP gateway
• Number of SIP accounts: 2
• Number of SIP lines: 2
• FXS port: 1 × RJ-11
• Network port: 1 × RJ-45
• Ethernet speed: 10/100 Mbps
• USB port: 1 × Micro USB
• Micro USB function: power input
• DC connector: 5.5 × 2.1 × 10 mm
• Power input: 5 V, 1 A
• Narrowband codecs: G.711a/u, G.726, G.729A/B, iLBC
• Wideband codecs: G.722, Opus
• DTMF: In-band
• IP modes: IPv4, IPv6, IPv4 and IPv6
• IP configuration: static IP, DHCP, PPPoE
• Network functions: firewall, VLAN
• Signalling protocols: SIP 2.0 over UDP, TCP, TLS
• Media protocols: RTP, RTCP, SRTP
• Other protocols: STUN, DHCP, CDP, PPPoE, SNTP, FTP, TFTP, HTTP, HTTPS, TR-069
• Automatic provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP, TR-069
• Management: web interface, voice menu
• Call functions: hold, waiting, forwarding, transfer, three-way conference, Do Not Disturb, hotline
• Caller identification: supported
• Voice message indication: MWI
• Number lists: allowed and blocked
• FXS signalling: Kewl Start, Loop Start
• FXS detection: answer, busy tone, incoming call, polarity, hang-up
• Disconnect methods: busy tone, polarity reversal
• Status indicators: 4
• Installation: desktop, wall-mounted
• Operating temperature: 0 to 45°C
• Operating humidity: 10 to 95%
• Power consumption: 0.84 to 5.71 W
• Dimensions: 85 × 68 × 22.7 mm
• Colour: black

Who it's for

• System administrators
• IP telephony specialists
• System integrators
• Small office employees
• Contact centre operators
• Owners of analogue telephone equipment
• Technical specialists deploying SIP networks

Conclusion

The Fanvil GA10 connects one analogue telephone to an IP telephony network and supports two SIP lines. Wideband codecs, voice processing functions, network protocols, and automatic provisioning support deployment in home and office communication systems. Desktop and wall-mounted installation options allow the gateway to be positioned near network equipment or the connected telephone.
