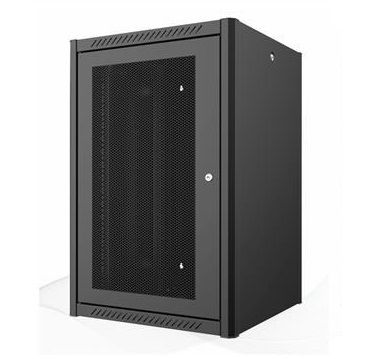

9U W=600mm D=450mm Wall Type Network Cabinet 80% Perforated Front Door BLACK (Including 2 pcs mounting rails)
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
Features
The WTN series wall cabinet is designed for housing network equipment in limited spaces. The 9U height provides efficient organization of components within a compact footprint.

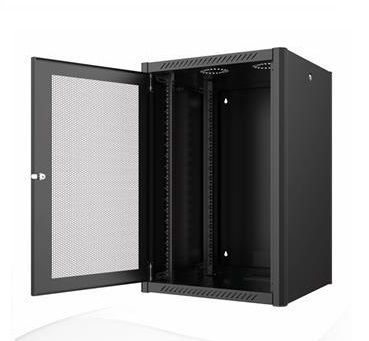

An 80% perforated front door enables passive airflow, supporting thermal stability without additional cooling systems. Door opening direction can be adjusted.
Removable side panels allow easy maintenance access. The rear panel includes mounting holes and cable entry points for structured installation.
Steel construction with powder coating enhances durability and resistance to wear. Mounting rails made of aluzinc comply with the 19-inch standard.
Flat-pack delivery simplifies transportation and storage. The cabinet is designed for straightforward assembly.
Technologies (used)
- Perforated airflow system
- Removable side panels
- Adjustable cable entry
- 19-inch mounting rails
- Powder-coated finish
Technical specifications
- Form factor 19 inch
- Height 9U
- Dimensions 600 x 450 mm
- Installation type wall-mounted
- Door perforation 80%
- Max load 100 kg
- Protection class IP20
- Material steel
- Finish powder coating
- Color black RAL 9005
- Rails aluzinc
Who it's for
- network administrator
- system integrator
- IT technician
- office infrastructure owner
Conclusion
The 9U cabinet offers a compact solution with proper airflow and easy access for maintenance. Suitable for stable deployment of network equipment up to 100 kg.
-
A type:Telecommunication cabinet
-
Height U:9
-
Rack Width ":19
-
Colour:black
-
Features:Supplied disassembled, perforated doors, Bottom plate with cable entry closed with PVC plug, Top plate perforated for fans, Задня сталева стінка, з монтажними отворами і перфорацією для введення кабелю, Можливість зміни напрямок відкриття дверей, Ступінь захисту: - IP 20 згідно зі стандартом EN 60529
-
Width cm:60
-
Depth cm:45
-
Material:aluzinc, metal
-
Equipment:front door, prefabricated supporting structure, two pairs of mounting profiles at a distance of 19", чотири ПВХ заглушки-ніжки, нижня плита з кабельним вводом, верхня плита з перфорацією під блок веніляторів, стінка задня сталева, дві знімні бічні стінки з одноточковим замком
-
Maximum allowed weight of the equipment installed in the cabinet kg:100
-
Appointment:Для мережевого обладнання, Для розміщення мережевого та телекомунікаційного обладнання
