12U W=60MM D=600MM DISASSEMBLED COM-BOX Gray

Features

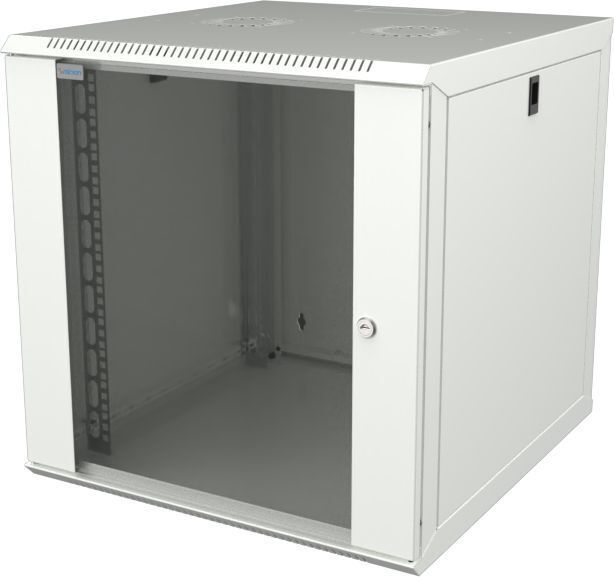

MIRSAN MR.WTC12U60DE.02 is designed for wall-mounted installation of 19" equipment in office, commercial and technical rooms. The 12U format is suitable for compact infrastructure with switches, routers, patch panels, media converters, cable organizers and auxiliary devices.

The 600 mm depth provides more space for equipment, cables and connection elements compared with shallow telecommunication cabinets. This format is relevant for network nodes where several devices need to be installed with enough room for neat cable routing.

The load capacity of up to 80 kg allows network and some server equipment to be placed in a compact wall-mounted installation. The cabinet is fixed to the wall and helps move equipment out of the working area into a separate technical space.

The glass door allows equipment status to be checked visually without opening the cabinet. Removable side panels simplify access during installation, cable connection, port maintenance and connection checks.

Ventilation slots help remove heat from installed equipment. This matters for switches, routers, PoE devices and patching equipment that operate for long periods inside a closed enclosure.

The RAL 7035 grey finish matches light-colored telecommunication cabinets, server accessories and office technical areas. The modular construction of the WTC series is convenient for transport, assembly and further maintenance.

Technologies (used)

• 19" rack format
• Wall-mounted installation
• 12U format
• WT Com-Box series
• Removable side panels
• Glass door
• Ventilation slots
• 19" mounting profiles
• IP20 protection
• Cable entries
• Modular construction
• RAL 7035 grey finish

Technical specifications

• Type: wall-mounted telecommunication cabinet
• Article number: MR.WTC12U60DE.02
• Series: WTC, WT Com-Box
• Installation format: 19"
• Mounting space height: 12U
• Size: 600x600 mm
• Depth: 600 mm
• Width: 600 mm
• Height according to product card: 540 mm
• Maximum load: 80 kg
• Mounting type: wall-mounted
• Protection rating: IP20
• Door: glass
• Side panels: removable
• Ventilation slots: yes
• Mounting profiles: yes
• Materials: metal, glass
• Color: grey
• Shade: RAL 7035
• Country of origin: Turkey
• Warranty: 36 months
• Included items: side panels, top panel, documentation, rear panel, mounting profiles, bottom panel, feet 4 pcs, glass door, posts 4 pcs

Who it's for

• For system administrators organizing a wall-mounted network node
• For engineers installing 19" network and patching equipment
• For structured cabling and telecommunication infrastructure integrators
• For IT departments in offices, stores, warehouses and educational institutions
• For service specialists installing switches, patch panels, routers and media converters
• For organizations that need a grey 12U wall cabinet with 600 mm depth

Conclusion

MIRSAN MR.WTC12U60DE.02 is a grey 19" 12U wall-mounted cabinet for network, telecommunication and server equipment. The 600x600 mm size, load capacity up to 80 kg, glass door, removable side panels, ventilation slots and IP20 protection make the model a practical base for a compact network node.
