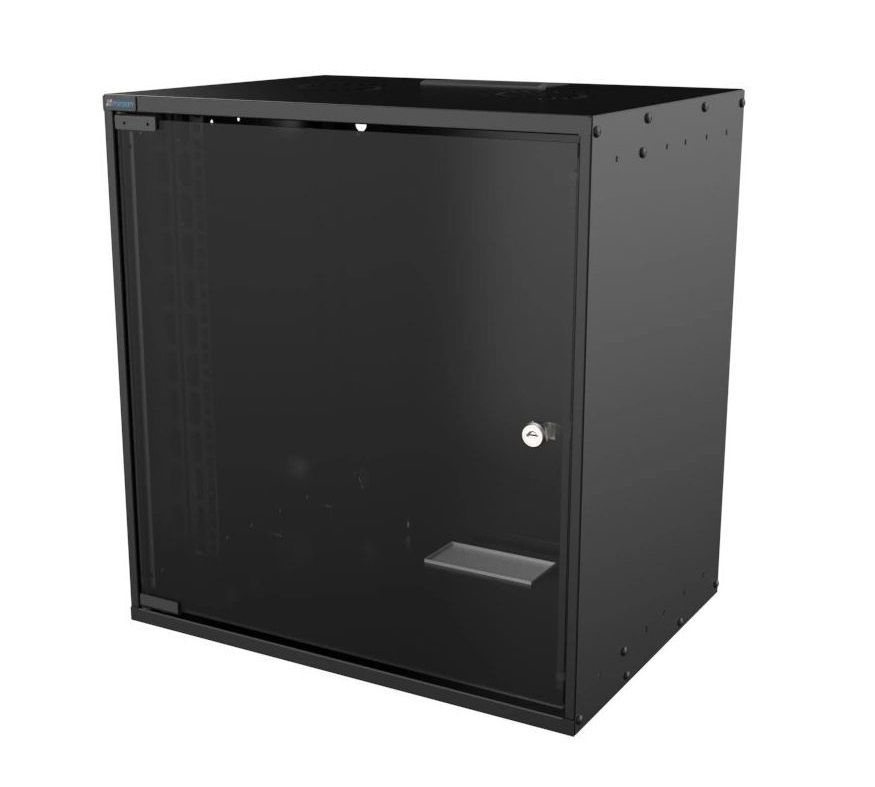

12U W=535MM D=400MM WALL TYPE UNASSEMBLED SOHO CABINET BLACK

Features

The 19" 12U SOHO wall-mounted cabinet is designed for organizing telecommunications nodes in small offices and technical rooms. A depth of 400 mm allows installation of standard network devices without excessive wall projection.

Supplied in flat-pack form, the structure simplifies transportation and on-site assembly. Structural rigidity is ensured by solid side panels and a steel rear panel with mounting holes.

The front glass door features a single-point lock. The transparent panel allows visual monitoring of installed equipment without opening the cabinet.

The top panel includes a brush-type cable entry, while the bottom panel provides a cable opening with a PVC cover. This layout supports structured cable routing and tidy internal organization.

Powder-coated surfaces with textured finish and aluzinc mounting rails improve resistance to wear and corrosion.

Technologies (used)

• 19" mounting standard
• 12U vertical rack configuration
• Brush-type cable entry system
• Bottom cable opening with PVC cover
• Aluzinc mounting rails
• Textured powder coating
• IP20 protection rating according to EN 60529

Technical specifications

• Type: wall-mounted rack cabinet
• Mounting format: 19"
• Height: 12U
• Dimensions (H×W×D): 535 × 400 mm
• Maximum load capacity: 30 kg
• Frame material: steel
• Front door: glass with single-point lock
• Side panels: solid, load-bearing
• Rear panel: steel with mounting holes
• Mounting rails: aluzinc
• Protection rating: IP20
• Color: black (RAL 9005)
• Delivery format: flat-pack

Who it's for

• Small offices
• Internet service providers
• System integrators
• Retail locations
• Educational facilities

Conclusion

The MIRSAN 19", 12U SOHO cabinet provides a compact wall-mounted solution for structured network equipment installation with practical design elements and reliable load capacity.
