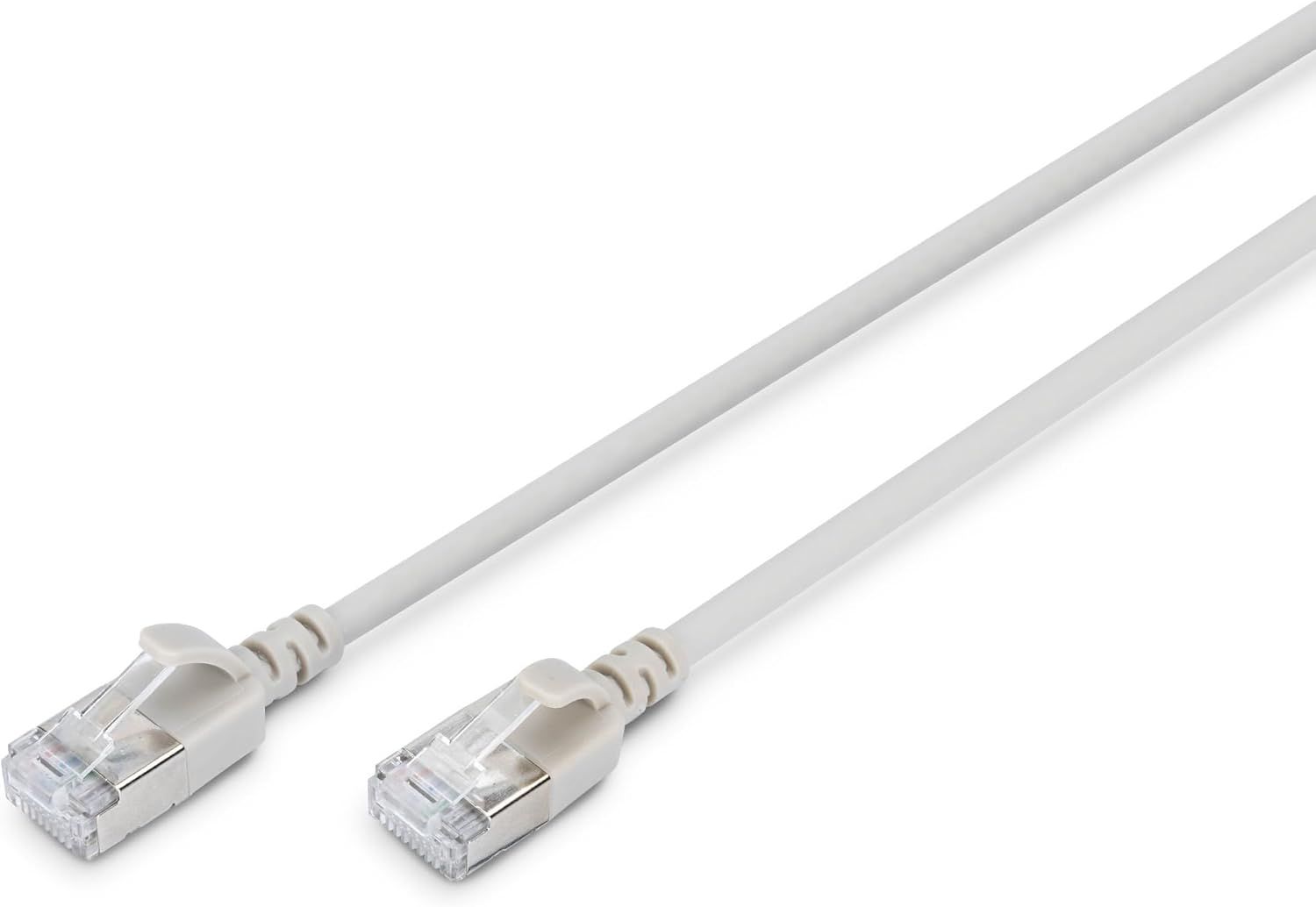

DIGITUS CAT 6A F-FTP Slim Patch cord, Cu, LSZH AWG 32/7, length 2m, Grey

Features

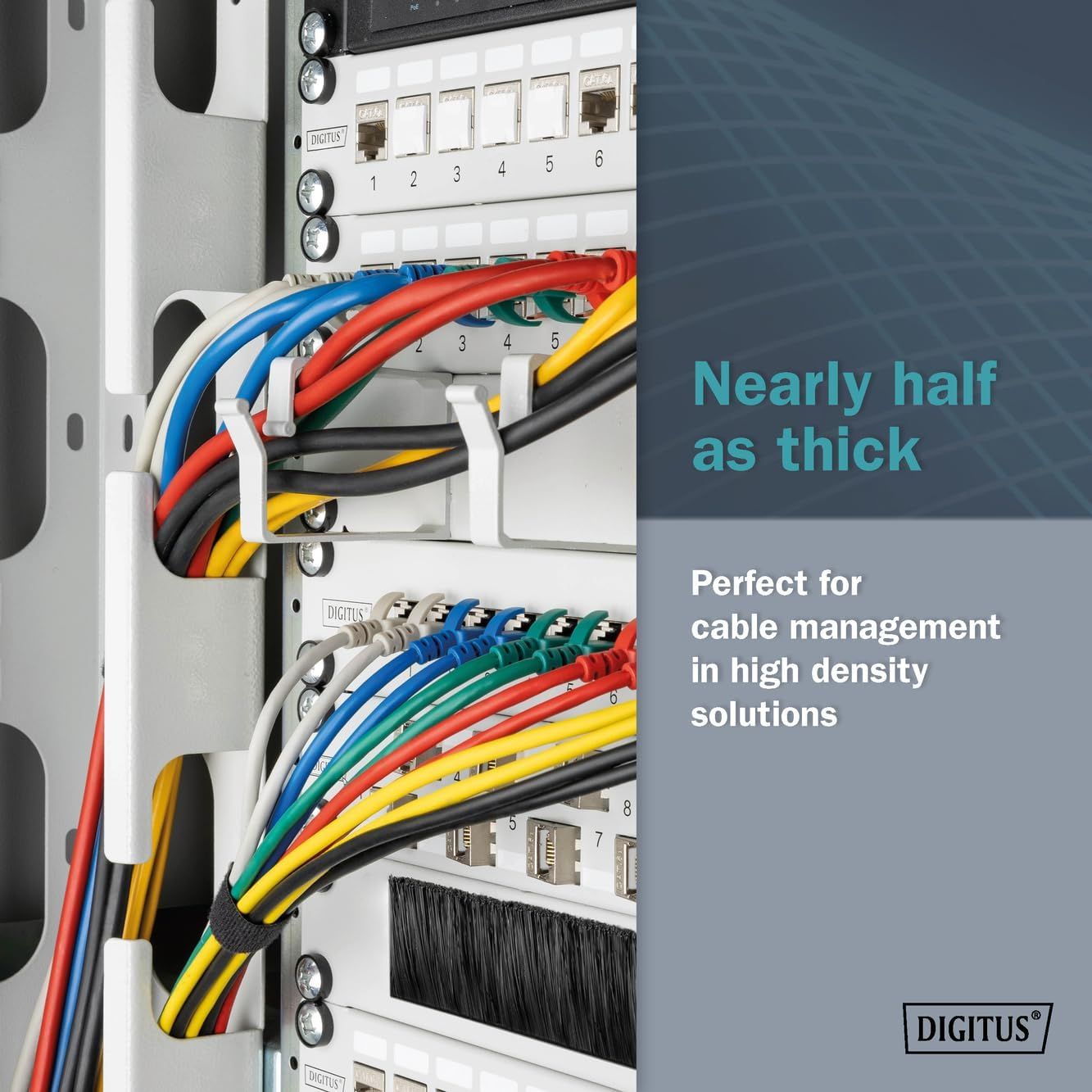

A slim outer diameter of approximately 3.8 mm enables efficient cable management in racks and confined installations. The compact design reduces congestion in structured cabling systems.

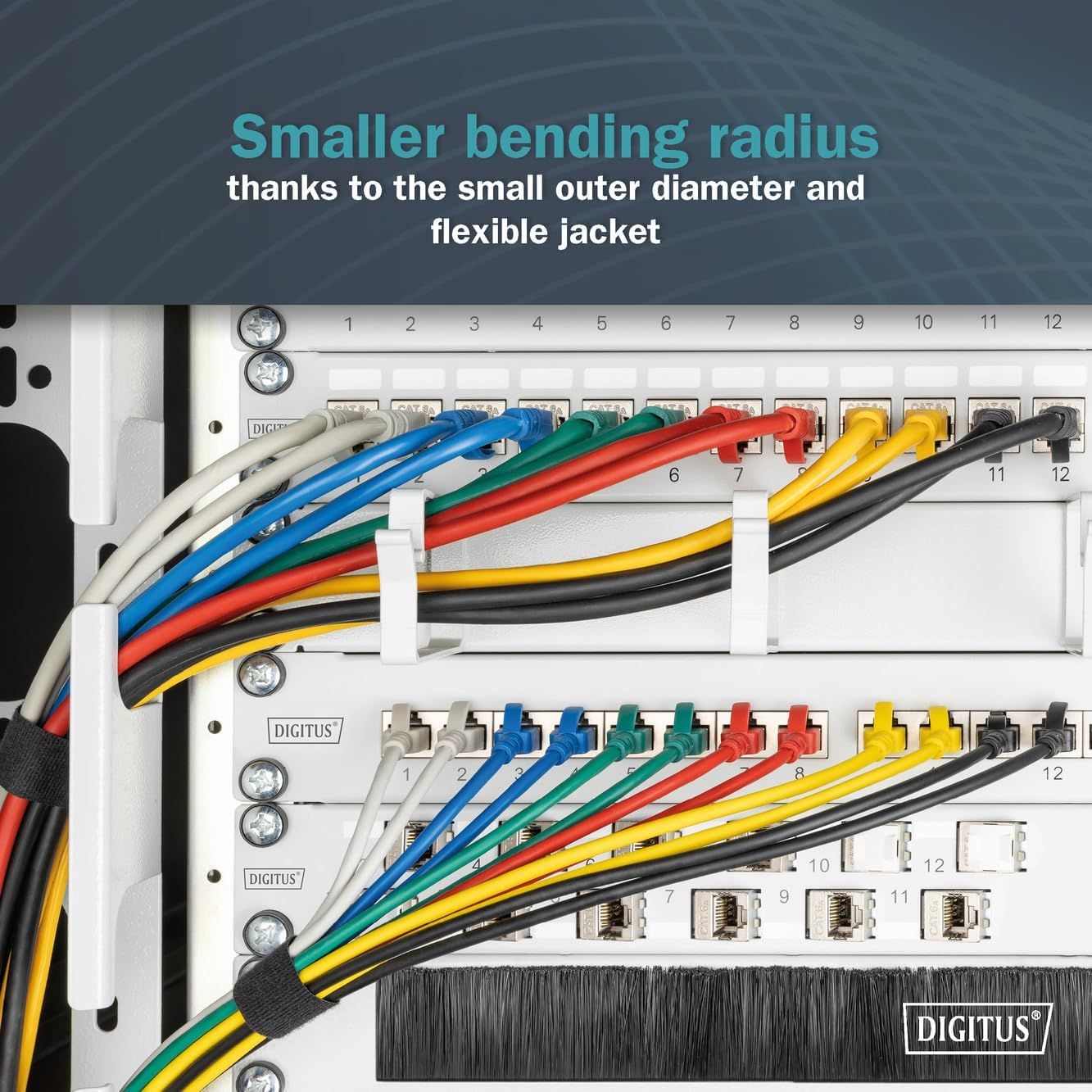

The flexible jacket maintains cable integrity under repeated bending. Optimized bend radius minimizes mechanical stress during installation.

F-FTP shielding combines an overall foil with individually shielded pairs. This structure reduces crosstalk and enhances signal stability in electrically noisy environments.

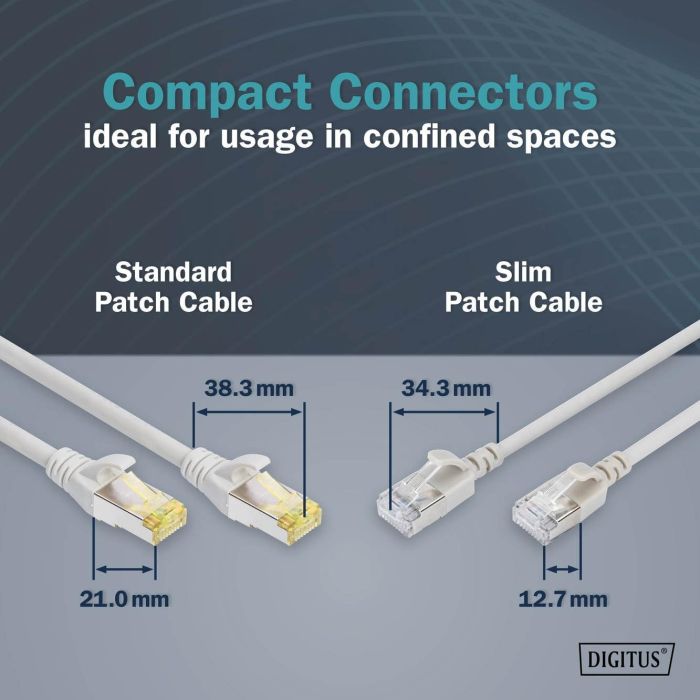

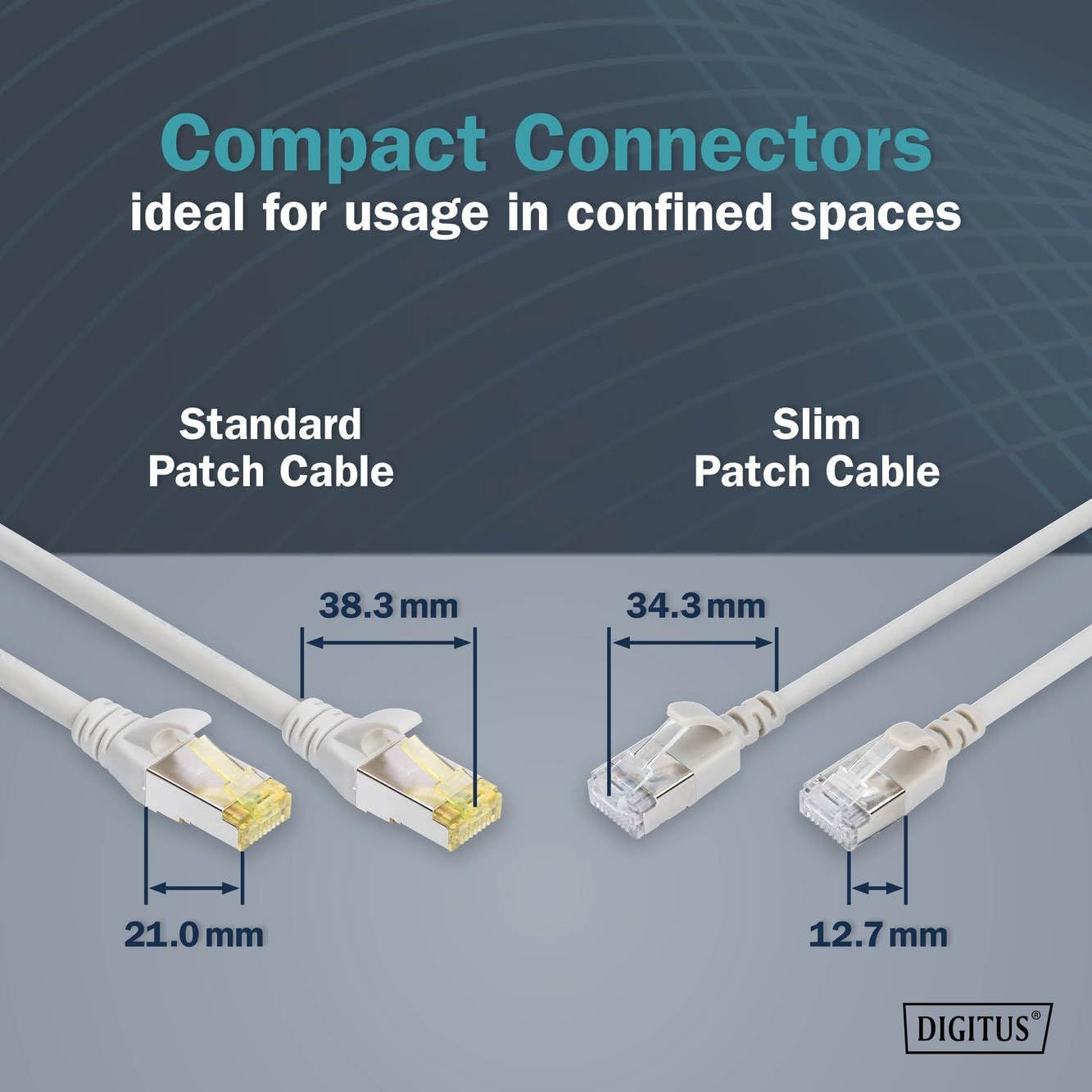

Molded connectors with bend protection and latch guard improve durability. The design protects the locking mechanism during frequent use.

Compliance with ISO/IEC 11801-1, EN 50173 and ANSI/TIA 568-C standards ensures reliable operation in Gigabit Ethernet environments.

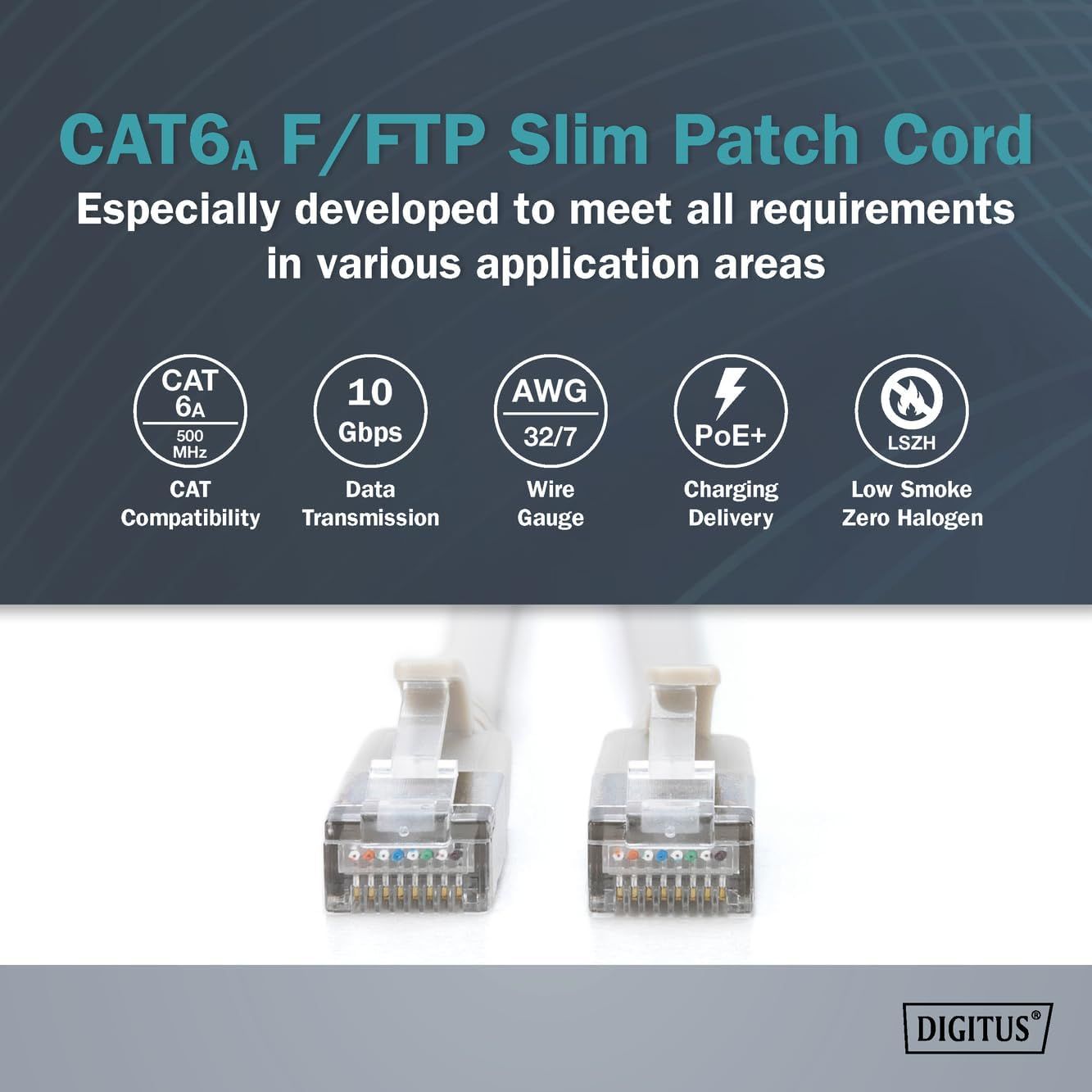

Technologies (used)

• CAT 6A up to 500 MHz
• F-FTP shielding
• Bare copper conductor
• Slim cable design
• LSZH jacket
• EIA/TIA 568B wiring
• Bend and latch protection

Technical specifications

• Type: twisted pair patch cord
• Category: CAT 6A
• Length: 2.0 m
• Color: grey
• Conductor: AWG 32/7 copper

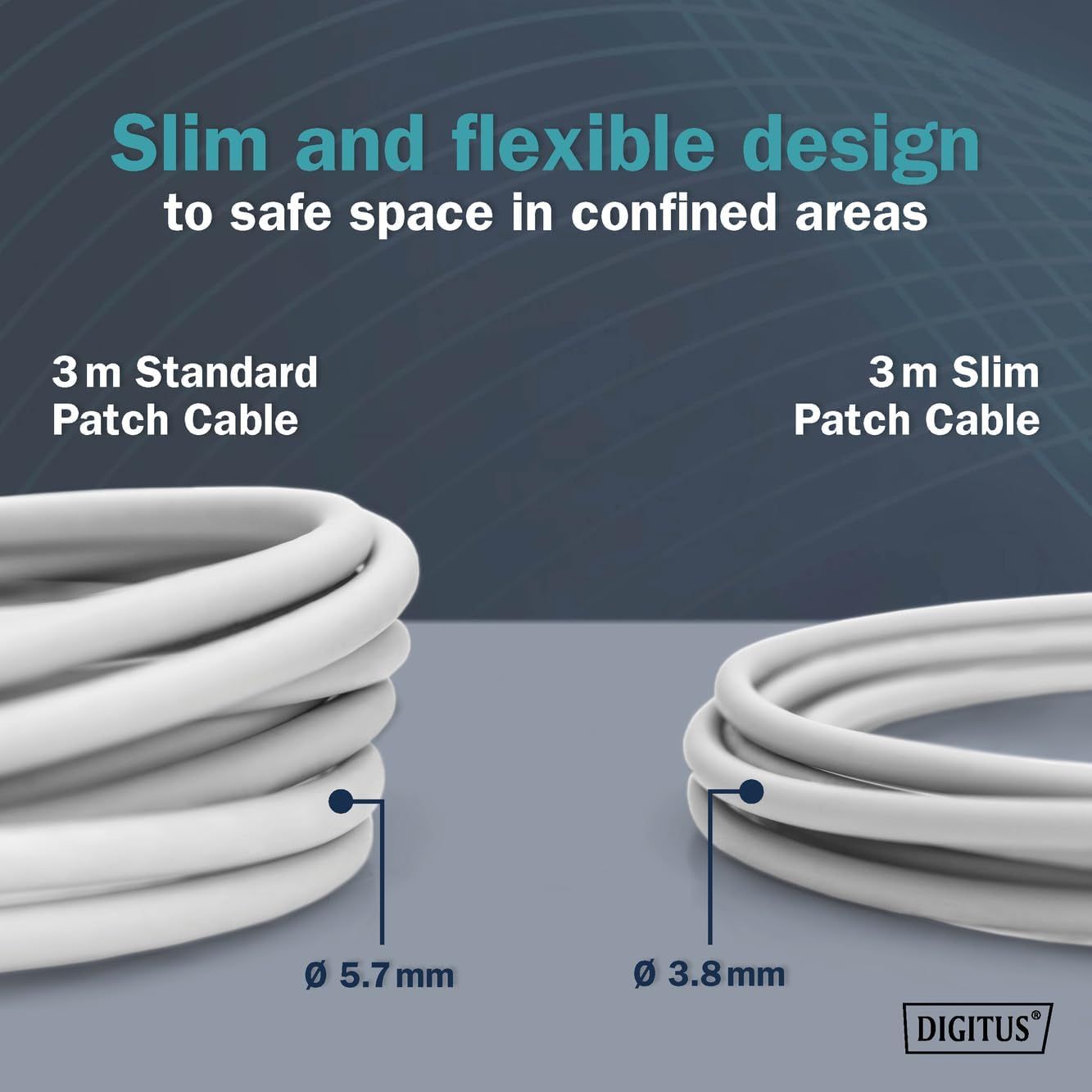

• Cable diameter: 3.8 mm ± 0.15 mm
• Shielding: F-FTP
• Insulation: HD-PE
• Jacket: LSZH
• Connectors: RJ45 (8P8C)
• Configuration: 1:1
• Standards: ISO/IEC 11801-1, EN 50173, ANSI/TIA 568-C
• Operating temperature: -20 °C to +60 °C
• Fire resistance: IEC 60332-1
• Smoke emission: IEC 61034
• Mating cycles: up to 750

Who it's for

• Network engineers
• System administrators
• Structured cabling installers
• Data centers
• Office infrastructure environments

Conclusion

The CAT 6A Slim patch cord combines reduced size, effective shielding, and standards compliance, supporting stable data transmission in high-density network installations.
