ASUS Notebook Zenbook S14 UX5406SA-QJ475W 14" WUXGA OLED, Intel Ultra 5 226V, 16GB, F1TB, UMA, Win11, White

Features

The ASUS Zenbook S14 UX5406SA-QJ475W is powered by an Intel Core Ultra 5 226V processor with 8 cores and 8 threads. The processor operates at 2.1 GHz and reaches up to 4.5 GHz, with 8 MB of cache. The Intel AI Boost NPU delivers up to 40 TOPS.

The 14-inch OLED display has a resolution of 1920 x 1200 pixels and a 16:10 aspect ratio. Brightness reaches 400 nits and DCI-P3 color gamut coverage is rated at 100%. The anti-glare and low-reflection surface reduces reflections from surrounding light sources.

The configuration includes 16 GB of LPDDR5X memory and a 1 TB M.2 NVMe PCIe 4.0 SSD. Integrated Intel Arc Graphics handles graphics processing. Windows 11 Home is included.

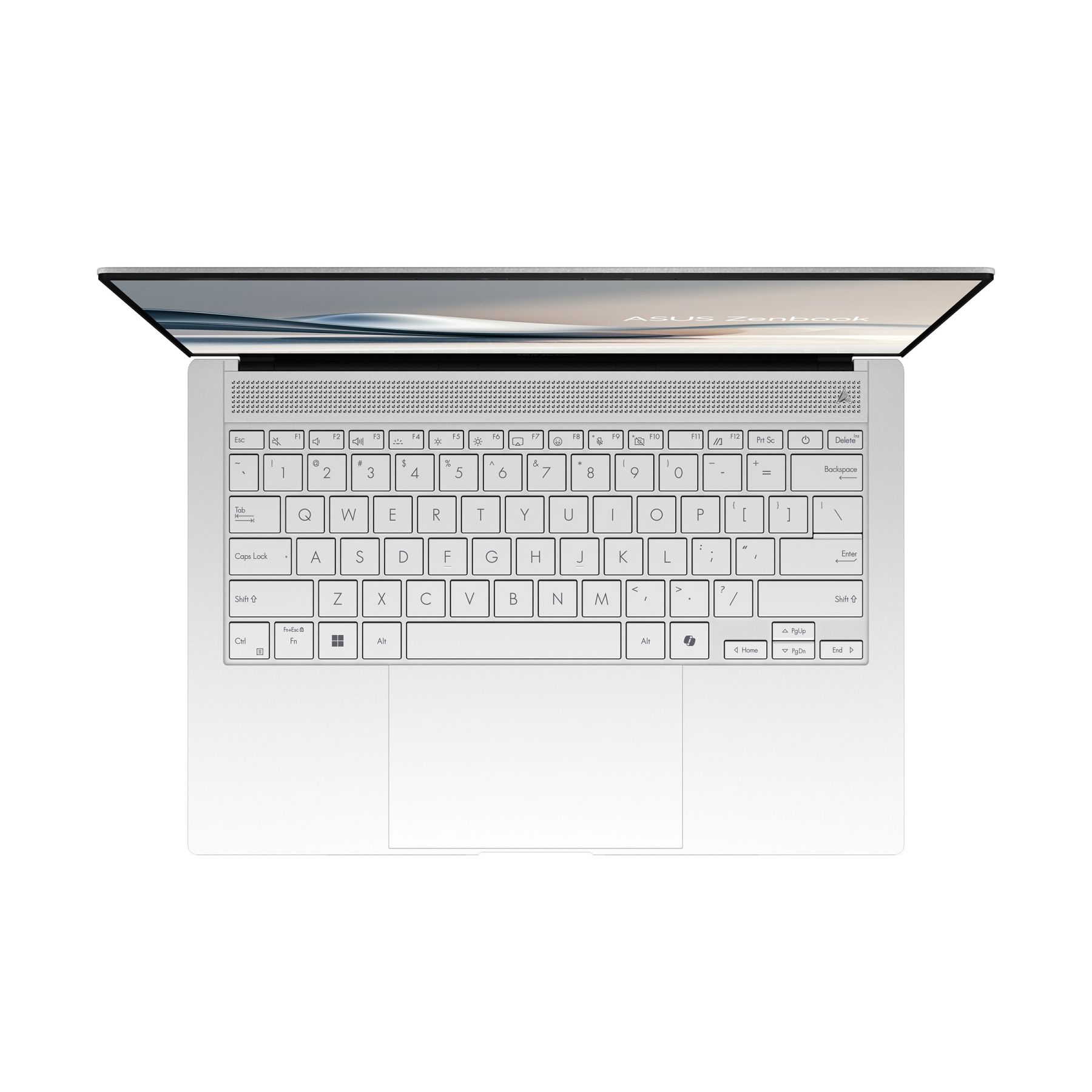

The FHD camera includes IR functionality for Windows Hello. The backlit Chiclet keyboard incorporates a dedicated Copilot key. The audio system includes Smart Amp Technology, a built-in speaker and a built-in array microphone.

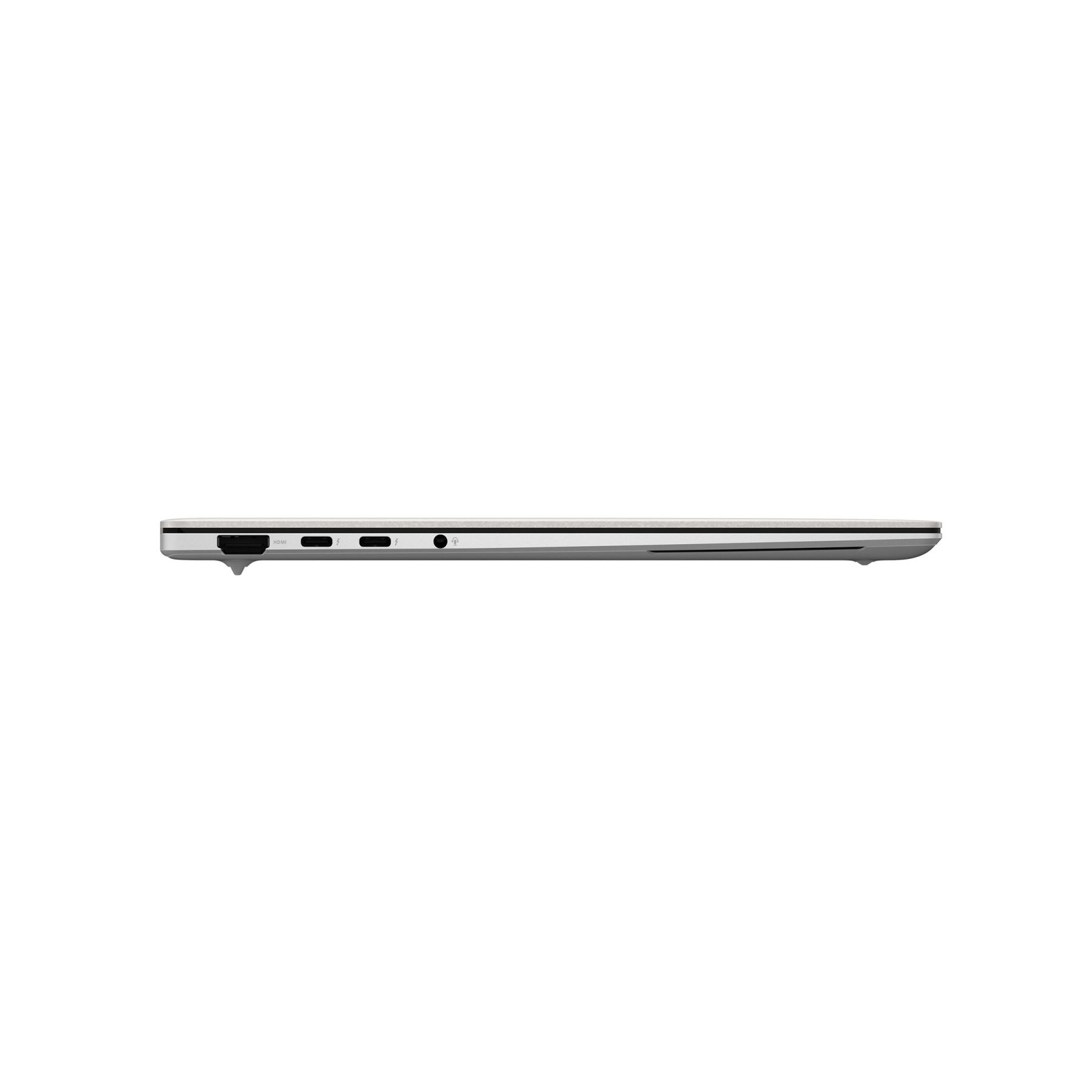

Connectivity includes one USB 3.2 Gen 2 Type-A port, two Type-C ports with Thunderbolt 4, HDMI 2.1 TMDS and a 3.5 mm combo audio jack. Thunderbolt 4 supports data transfer rates up to 40 Gbps, display output and Power Delivery. Wireless connectivity is provided by Wi-Fi 7 and Bluetooth 5.4.

The laptop uses a 72 Wh battery and a 65 W USB Type-C compact power adapter. Chassis thickness ranges from 1.19 to 1.29 cm and weight is 1.20 kg. Package contents include a sleeve.

Technologies (used)

• Intel Core Ultra
• Intel AI Boost NPU
• Intel Arc Graphics
• OLED
• LPDDR5X
• PCIe 4.0 NVMe
• Wi-Fi 7
• Bluetooth 5.4
• Windows Hello
• Thunderbolt 4
• USB Power Delivery
• Display output over Type-C
• HDMI 2.1 TMDS
• Smart Amp Technology

Technical specifications

• Device type: laptop
• Series: ASUS Zenbook S14
• Color: white
• Operating system: Windows 11 Home
• Processor: Intel Core Ultra 5 226V
• Processor frequency: 2.1 GHz
• Maximum processor frequency: up to 4.5 GHz
• Processor cores: 8
• Processor threads: 8
• Processor cache: 8 MB
• Neural processing unit: Intel AI Boost NPU
• NPU performance: up to 40 TOPS
• Graphics adapter: Intel Arc Graphics
• Graphics type: integrated
• Display size: 14"
• Display type: OLED
• Display resolution: 1920 x 1200
• Resolution format: WUXGA
• Aspect ratio: 16:10
• Brightness: 400 nits
• Color gamut: DCI-P3 100%
• Display surface: anti-glare and low-reflection
• System memory: 16 GB
• Memory type: LPDDR5X
• Memory configuration: on package
• Storage: 1 TB SSD
• Storage form factor: M.2
• Storage interface: NVMe PCIe 4.0
• Keyboard: Chiclet
• Keyboard backlight: included
• Copilot key: included
• Camera: FHD
• IR camera function: included
• Camera support for Windows Hello: included
• Wireless network: Wi-Fi 7 802.11be, Triple Band, 2 x 2
• Bluetooth: 5.4
• USB Type-A: 1 x USB 3.2 Gen 2
• USB Type-A data rate: up to 10 Gbps
• Thunderbolt 4 Type-C: 2
• Thunderbolt 4 data rate: up to 40 Gbps
• Thunderbolt 4 functions: display output, Power Delivery
• HDMI: 1 x HDMI 2.1 TMDS
• Audio connector: 1 x 3.5 mm combo audio jack
• Audio technology: Smart Amp Technology
• Speaker: built-in
• Microphone: built-in array microphone
• Battery capacity: 72 Wh
• Battery type: 4-cell Li-ion
• Power adapter output: 65 W
• Power adapter type: USB Type-C
• Power adapter output parameters: 20 V DC, 3.25 A
• Power adapter input: 100-240 V AC, 50/60 Hz
• USB Type-C cable rating: 240 W
• Dimensions: 31.03 x 21.47 x 1.19-1.29 cm
• Weight: 1.20 kg
• Package contents: sleeve

Who it's for

• Office professionals working with multitasking applications
• Specialists using software that supports NPU-based processing
• Creative professionals requiring 100% DCI-P3 color gamut coverage
• Students requiring a lightweight laptop for study and mobile work
• Professionals connecting external displays and peripherals through Thunderbolt 4

Conclusion

The ASUS Zenbook S14 UX5406SA-QJ475W combines an Intel Core Ultra 5 226V processor, Intel AI Boost NPU delivering up to 40 TOPS, 16 GB of LPDDR5X memory and a 1 TB SSD. The WUXGA OLED display with 100% DCI-P3 coverage, two Thunderbolt 4 ports, Wi-Fi 7, 72 Wh battery and 1.20 kg weight provide a configuration suited to mobile work, study and NPU-based computing tasks.
