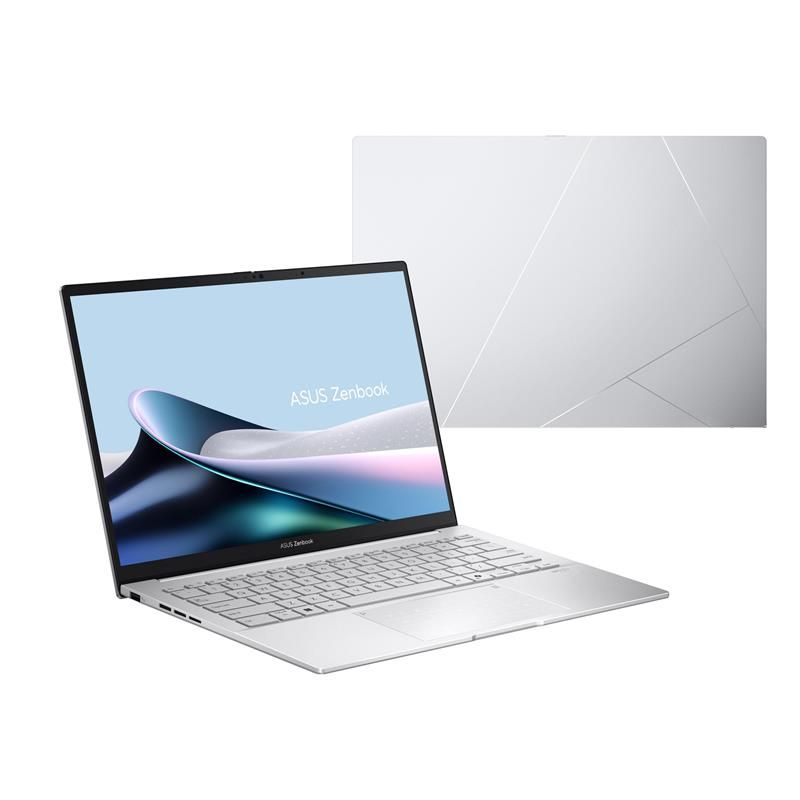

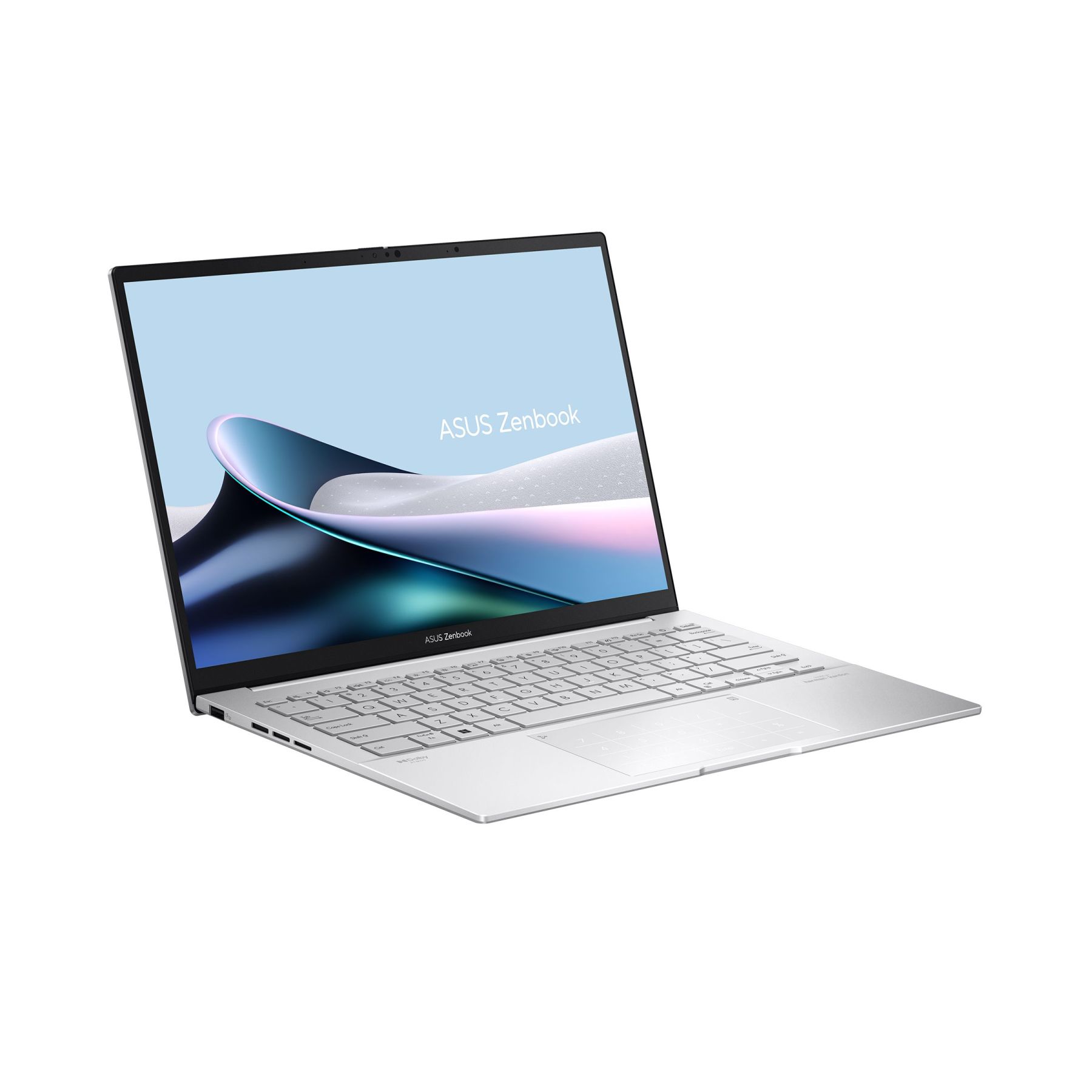

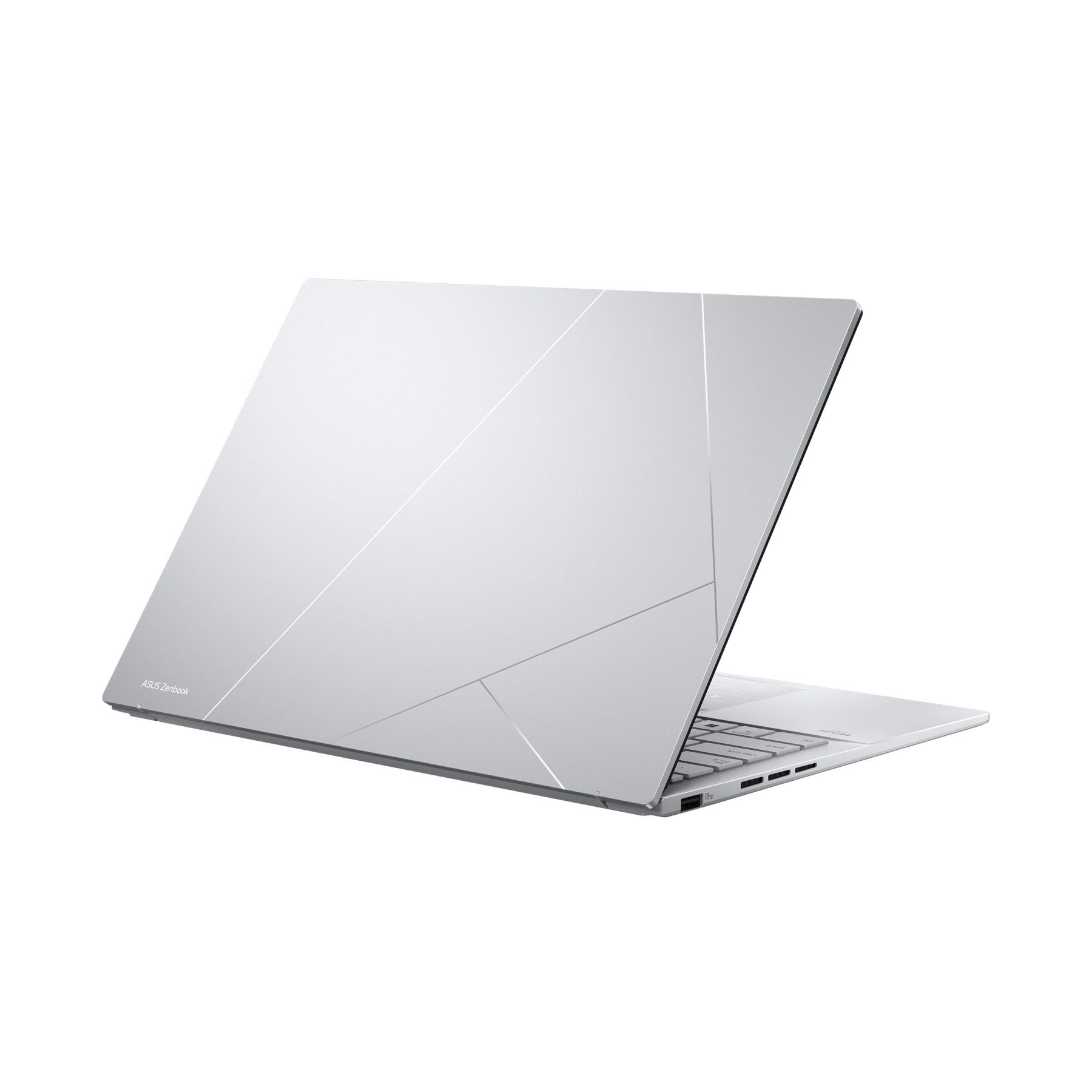

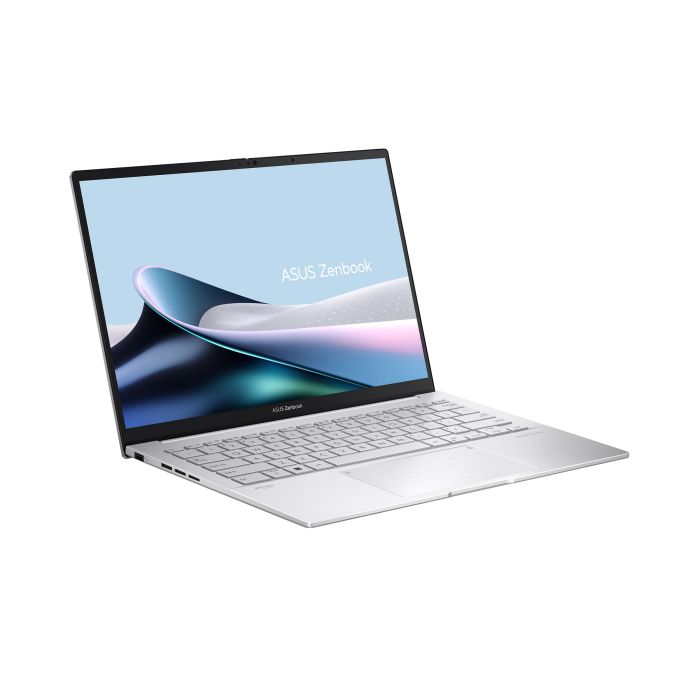

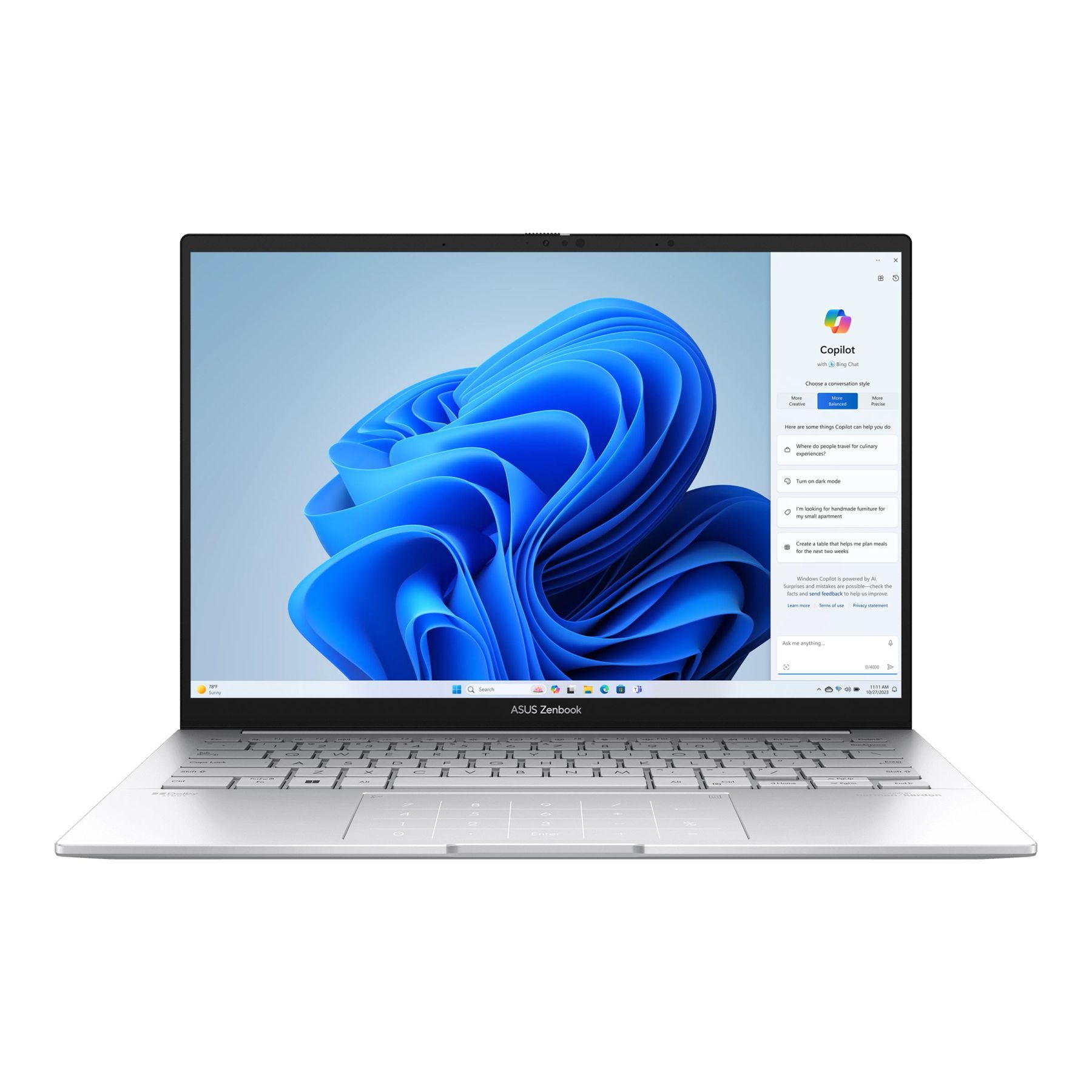

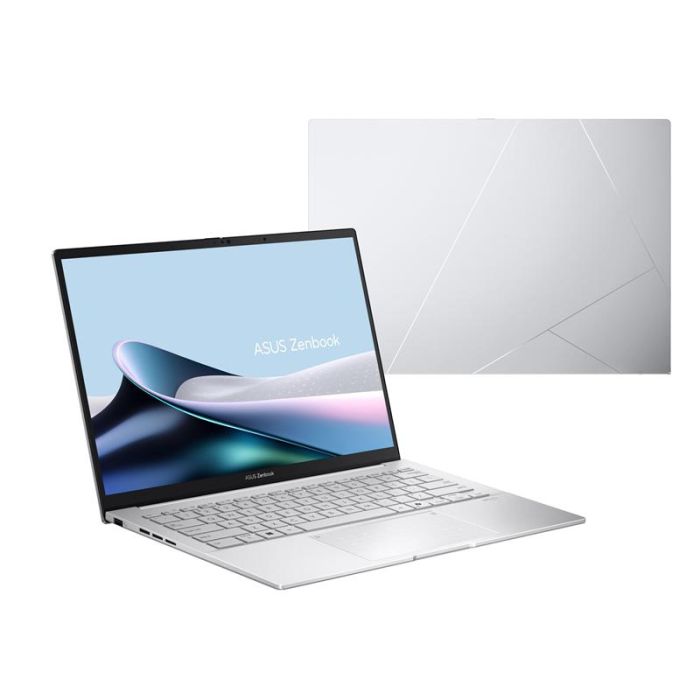

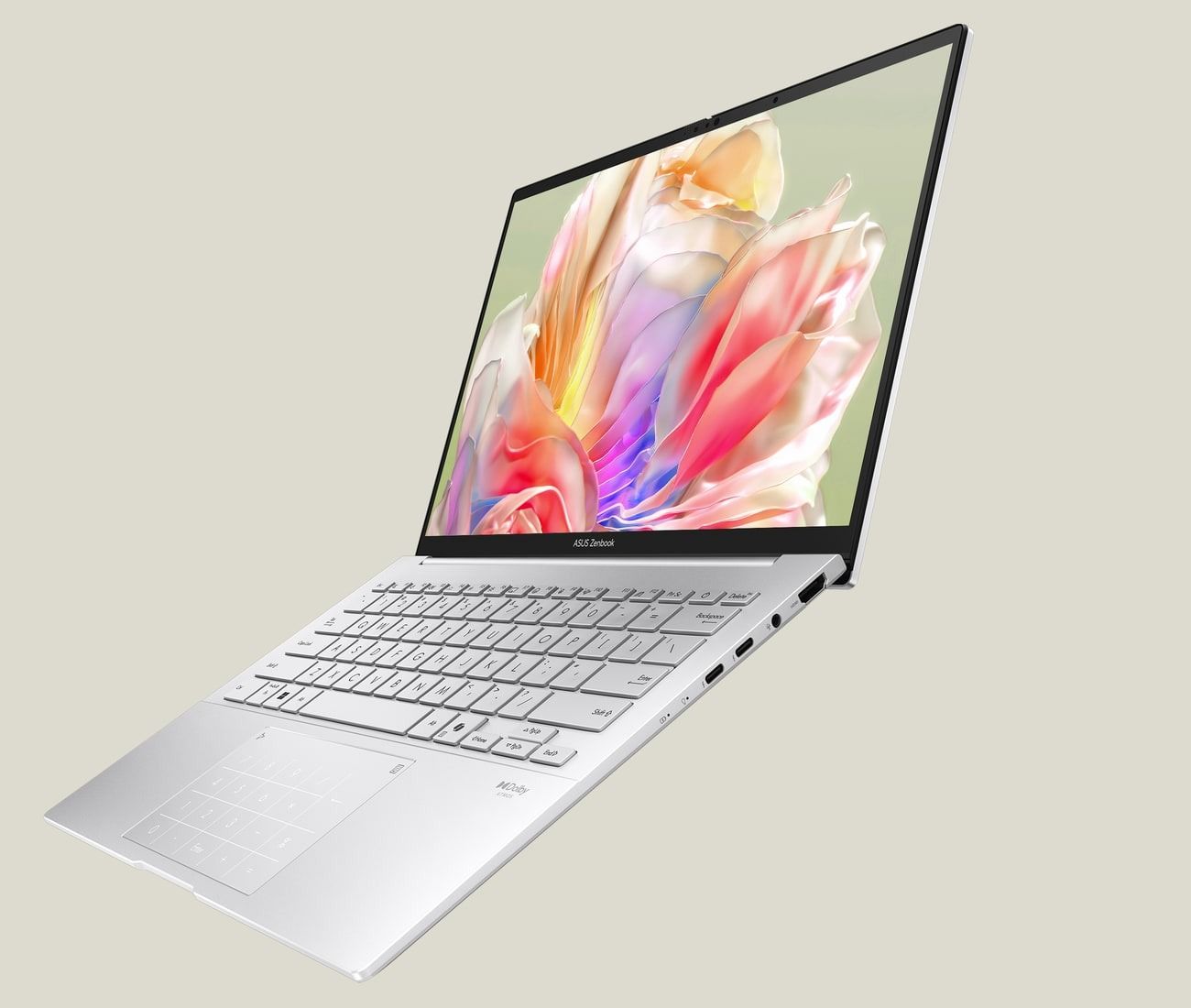

ASUS Notebook Zenbook A14 UX3405CA-QL291 14" WUXGA Touch OLED, Intel Ultra 9 285H, 32GB, F1TB, UMA, NoOS, Silver

Features

The ASUS Zenbook A14 UX3405CA-QL291 is powered by an Intel Core Ultra 9 285H processor with 16 cores and 16 threads. The processor operates at 2.9 GHz and reaches up to 5.4 GHz, with 24 MB of cache. An Intel AI Boost NPU handles neural processing workloads.

The 14-inch OLED touchscreen has a resolution of 1920 x 1200 pixels and a 16:10 aspect ratio. Brightness reaches 400 nits and DCI-P3 color gamut coverage is rated at 100%. The display has a glossy surface and supports touch input.

The configuration includes 32 GB of onboard LPDDR5X memory and a 1 TB M.2 NVMe PCIe 4.0 SSD. Integrated Intel Arc Graphics handles graphics processing. The laptop is supplied without an operating system.

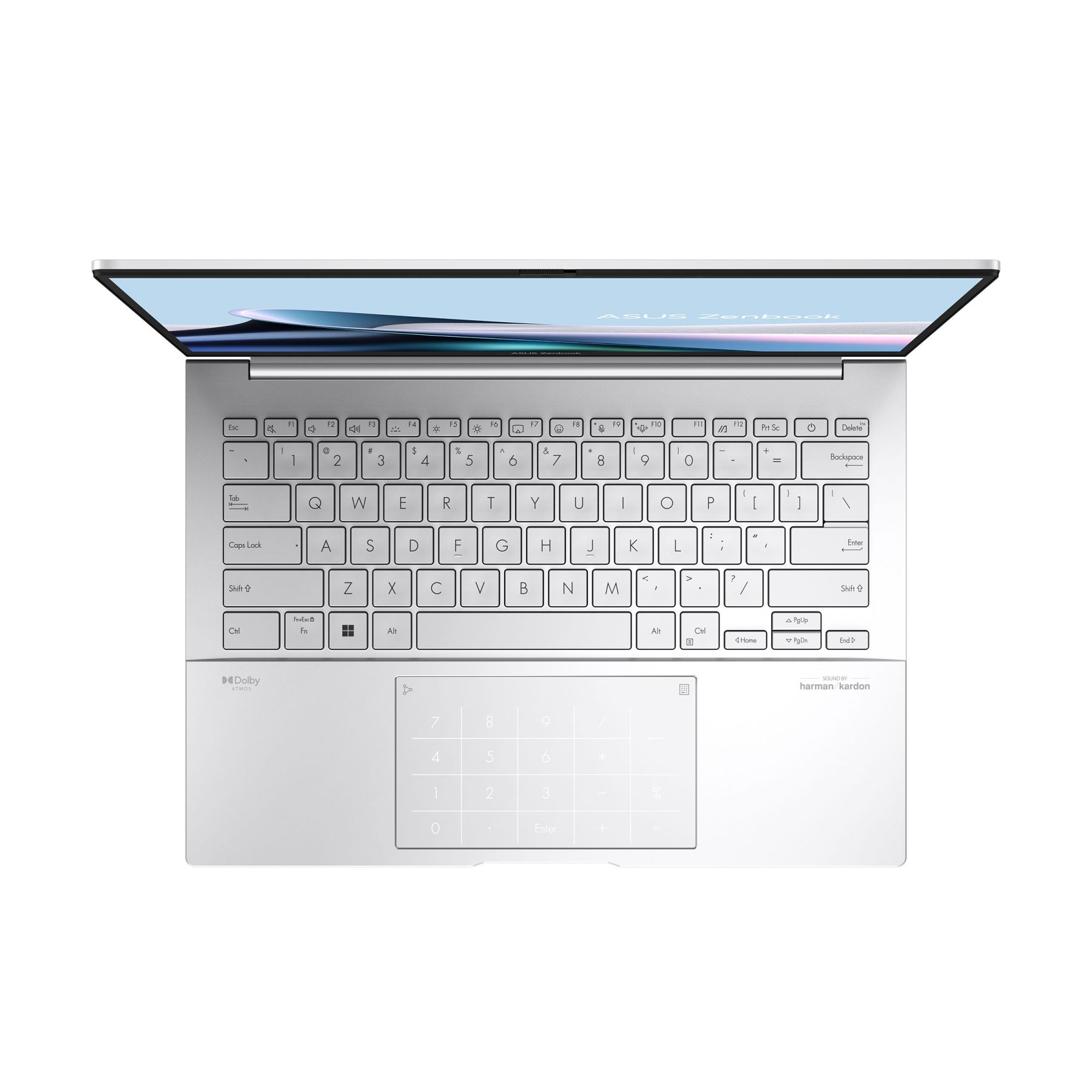

The FHD camera includes IR functionality for Windows Hello and a physical privacy shutter. The Chiclet keyboard features backlighting. The audio system includes Smart Amp Technology, a built-in speaker and a built-in array microphone.

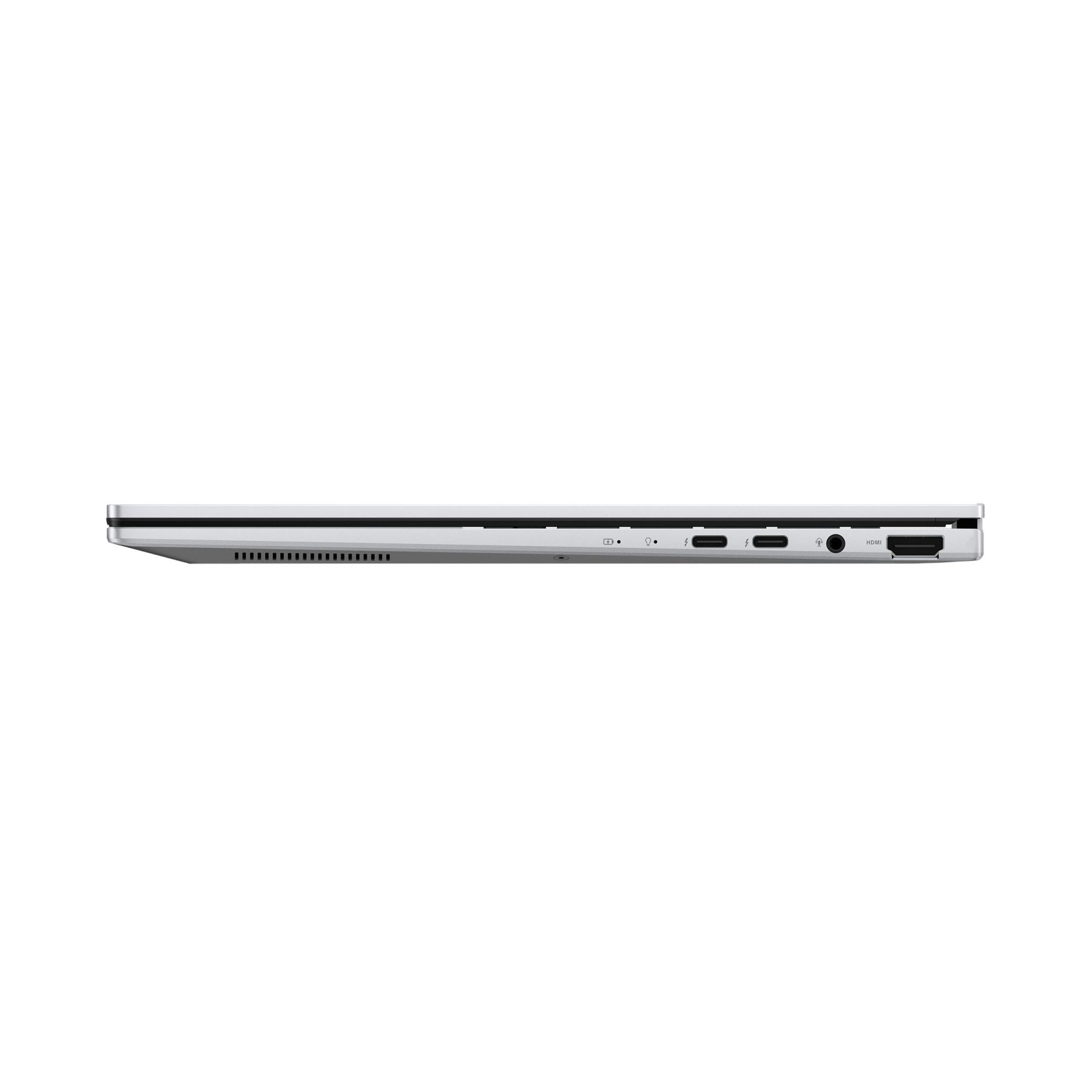

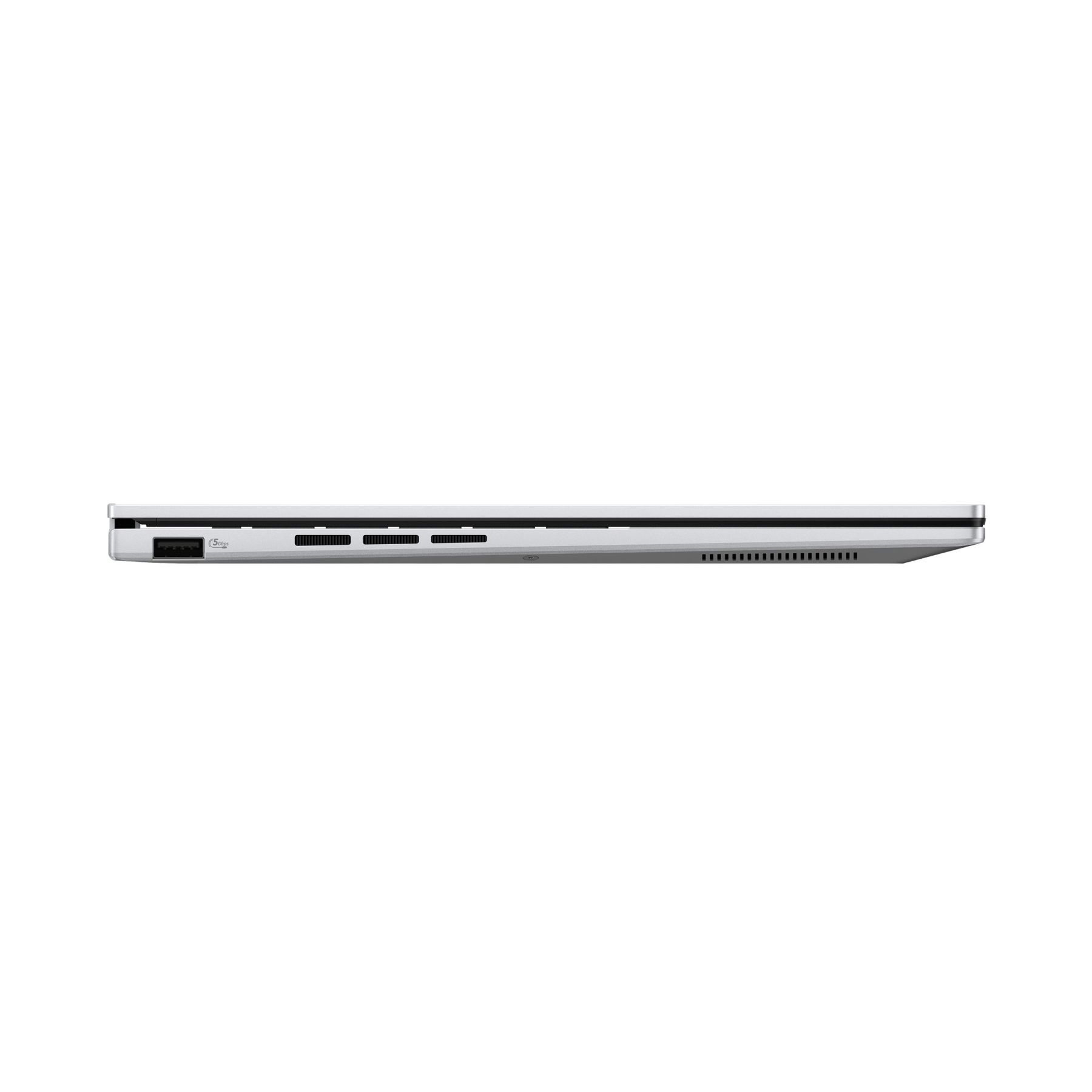

Wired connectivity includes one USB 3.2 Gen 1 Type-A port, two Type-C ports with Thunderbolt 4, HDMI 2.1 TMDS and a 3.5 mm combo audio jack. Thunderbolt 4 supports data transfer rates up to 40 Gbps, display output and Power Delivery. Wireless connectivity is provided by Wi-Fi 7 and Bluetooth 5.4.

The laptop uses a 75 Wh battery and a 65 W USB Type-C power adapter. Chassis dimensions are 31.24 x 22.01 x 1.49 cm and weight is 1.28 kg. Package contents include an ASUS Pen SA203H stylus with MPP 2.0 support, a sleeve and a USB-A to RJ45 Gigabit Ethernet adapter.

Technologies (used)

• Intel Core Ultra
• Intel AI Boost NPU
• Intel Arc Graphics
• OLED
• Touchscreen
• LPDDR5X
• PCIe 4.0 NVMe
• Wi-Fi 7
• Bluetooth 5.4
• Windows Hello
• Thunderbolt 4
• USB Power Delivery
• Display output over Type-C
• HDMI 2.1 TMDS
• Smart Amp Technology
• MPP 2.0

Technical specifications

• Device type: laptop
• Series: ASUS Zenbook A14
• Color: silver
• Operating system: without OS
• Processor: Intel Core Ultra 9 285H
• Processor frequency: 2.9 GHz
• Maximum processor frequency: up to 5.4 GHz
• Processor cores: 16
• Processor threads: 16
• Processor cache: 24 MB
• Neural processing unit: Intel AI Boost NPU
• Graphics adapter: Intel Arc Graphics
• Graphics type: integrated
• Display size: 14"
• Display type: OLED
• Touchscreen: included
• Display resolution: 1920 x 1200
• Resolution format: WUXGA
• Aspect ratio: 16:10
• Brightness: 400 nits
• Color gamut: DCI-P3 100%
• Display surface: glossy
• System memory: 32 GB
• Memory type: LPDDR5X
• Memory configuration: onboard
• Storage: 1 TB SSD
• Storage form factor: M.2
• Storage interface: NVMe PCIe 4.0
• Keyboard: Chiclet
• Keyboard backlight: included
• Camera: FHD
• IR camera function: included
• Camera support for Windows Hello: included
• Camera privacy shutter: included
• Wireless network: Wi-Fi 7 802.11be, Tri-band, 2 x 2
• Bluetooth: 5.4
• USB Type-A: 1 x USB 3.2 Gen 1
• USB Type-A data rate: up to 5 Gbps
• Thunderbolt 4 Type-C: 2
• Thunderbolt 4 data rate: up to 40 Gbps
• Thunderbolt 4 functions: display output, Power Delivery
• HDMI: 1 x HDMI 2.1 TMDS
• Audio connector: 1 x 3.5 mm combo audio jack
• Audio technology: Smart Amp Technology
• Speaker: built-in
• Microphone: built-in array microphone
• Battery capacity: 75 Wh
• Battery type: 4-cell Li-ion
• Power adapter output: 65 W
• Power adapter type: USB Type-C
• Power adapter output parameters: 20 V DC, 3.25 A
• Power adapter input: 100-240 V AC, 50/60 Hz
• Dimensions: 31.24 x 22.01 x 1.49 cm
• Weight: 1.28 kg
• Stylus: ASUS Pen SA203H
• Stylus support: MPP 2.0
• Package contents: stylus, sleeve, USB-A to RJ45 Gigabit Ethernet adapter

Who it's for

• Office professionals working with multitasking applications
• Creative professionals using touch input and a stylus
• Specialists requiring 100% DCI-P3 color gamut coverage
• Students working with study materials and handwritten notes
• Professionals connecting external displays and peripherals through Thunderbolt 4

Conclusion

The ASUS Zenbook A14 UX3405CA-QL291 combines an Intel Core Ultra 9 285H processor, 32 GB of LPDDR5X memory, a 1 TB SSD and integrated Intel Arc Graphics. The WUXGA OLED touchscreen with 100% DCI-P3 coverage, two Thunderbolt 4 ports, Wi-Fi 7, 75 Wh battery and included stylus provide a configuration for document workflows, graphics content and touch-based input.
