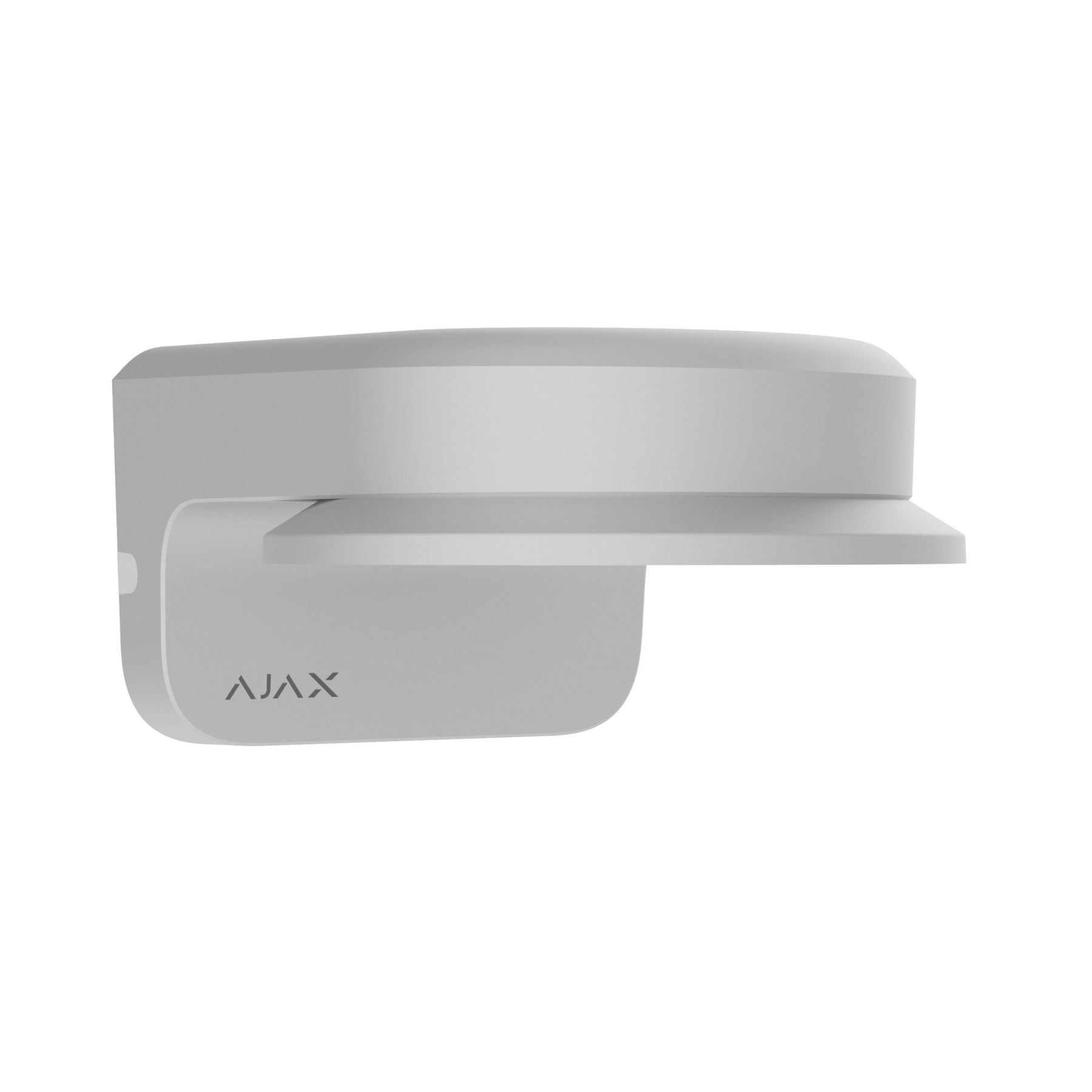

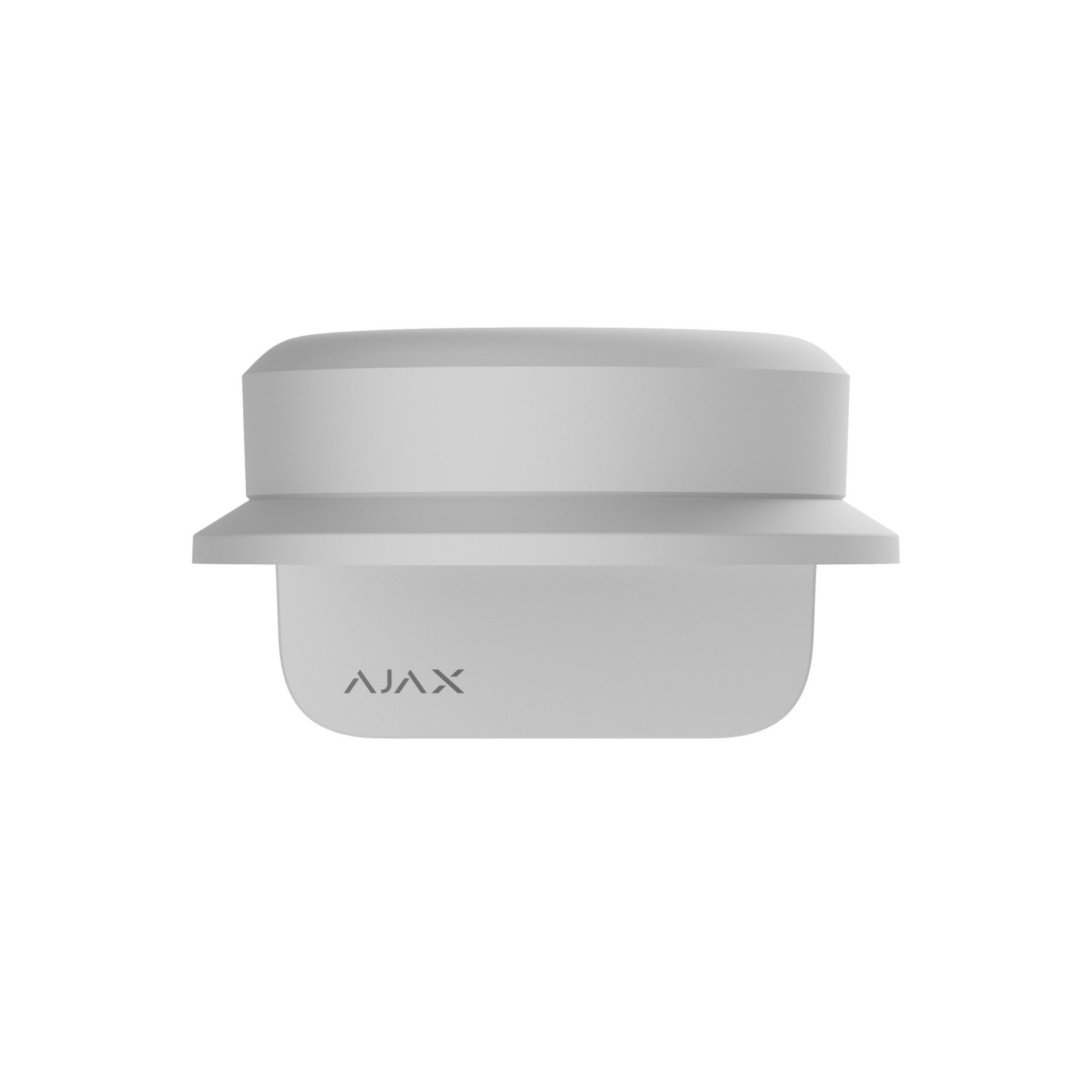

Wall bracket Ajax MountCam A2 white, 174 mm, for varifocal IP cameras, white, 147753.371.WH1

Features

Ajax MountCam A2 white is designed for wall mounting of compatible wired Ajax IP cameras indoors and in outdoor areas. The bracket helps position the camera on a stable base and keeps the cable section neat after installation.

The 174 mm construction is suitable for compact camera offset from a wall, facade, column or pole. This format is useful under canopies, near projections, on narrow walls and in places where building elements may partly enter the field of view.

The main difference between the A2 version and A1 is the adapter for cameras with a motorized varifocal lens. This makes the bracket suitable for Ajax TurretCam HLVF, Ajax DomeCam HLVF and compatible Superior HLVF models.

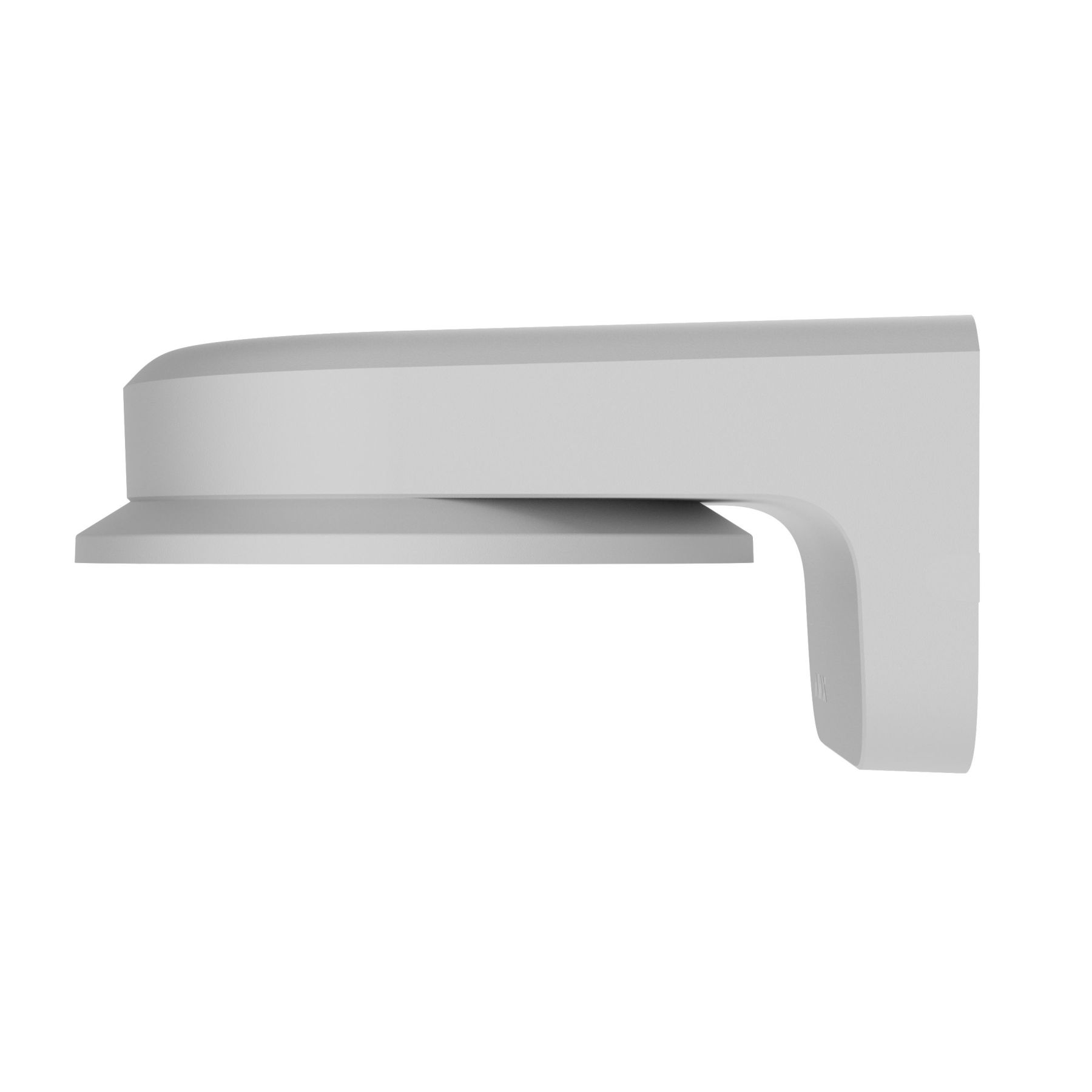

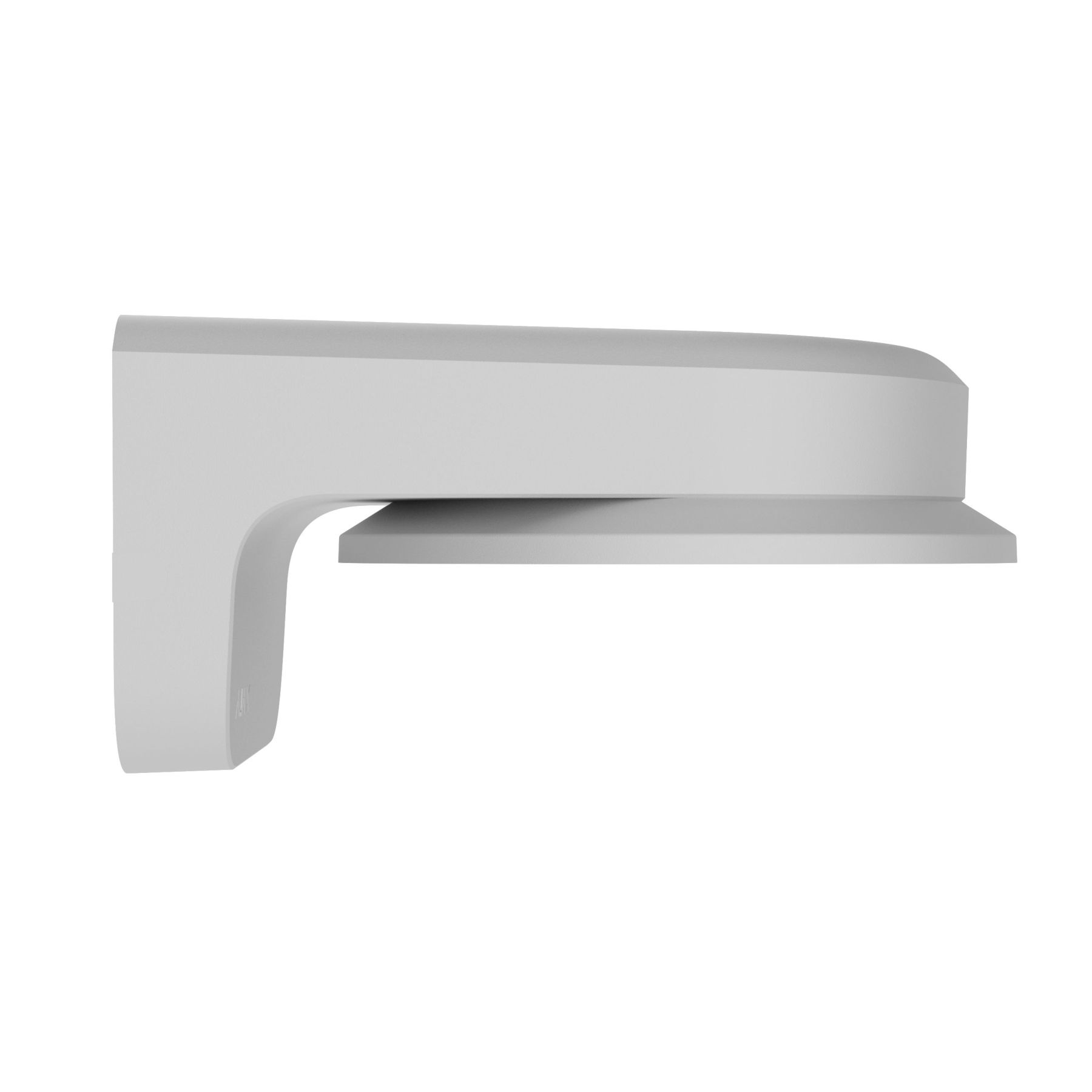

The L-shaped form allows the camera to be installed at the required angle to the surface. Internal space is provided for cable routing, so wires can be organized inside the housing without exposed external placement.

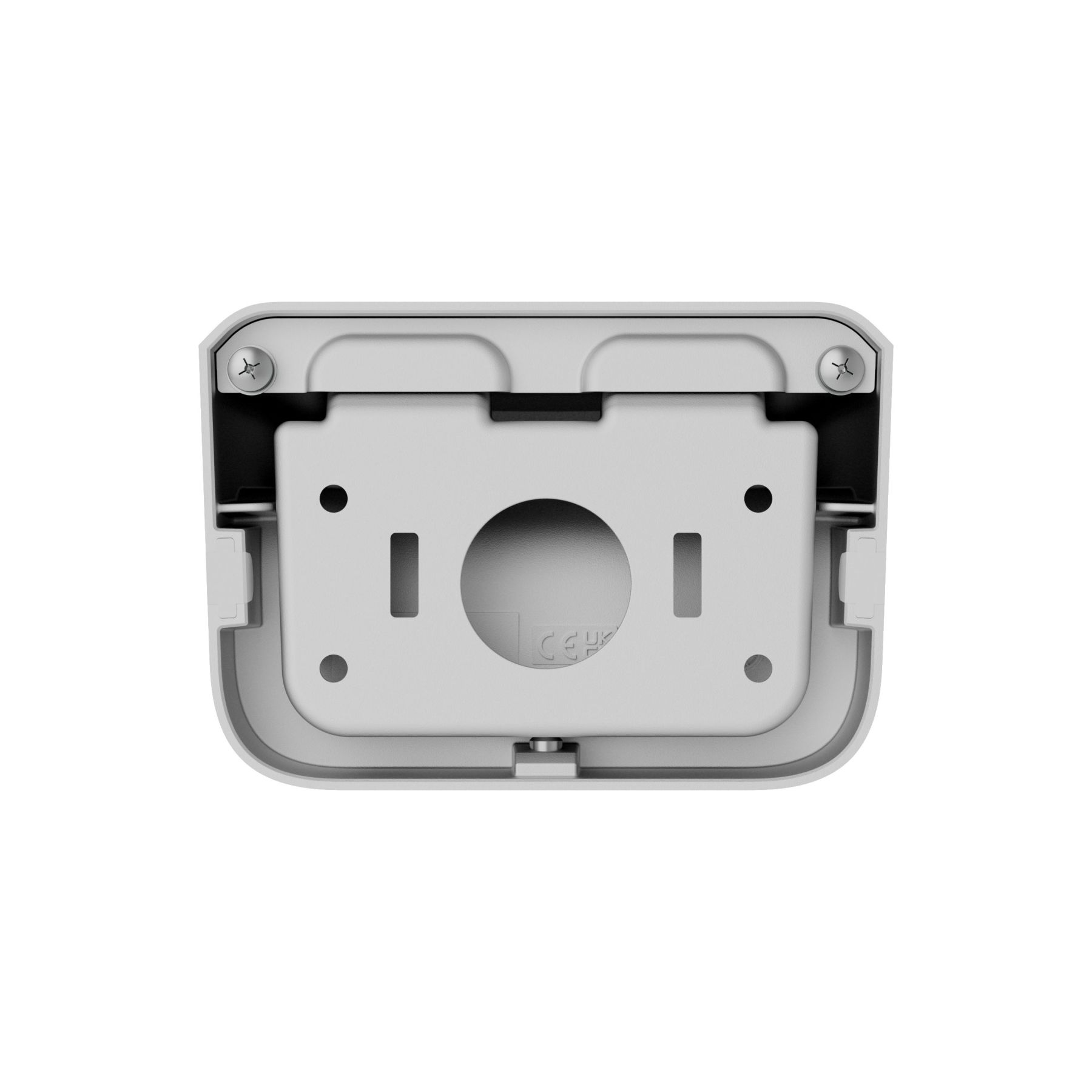

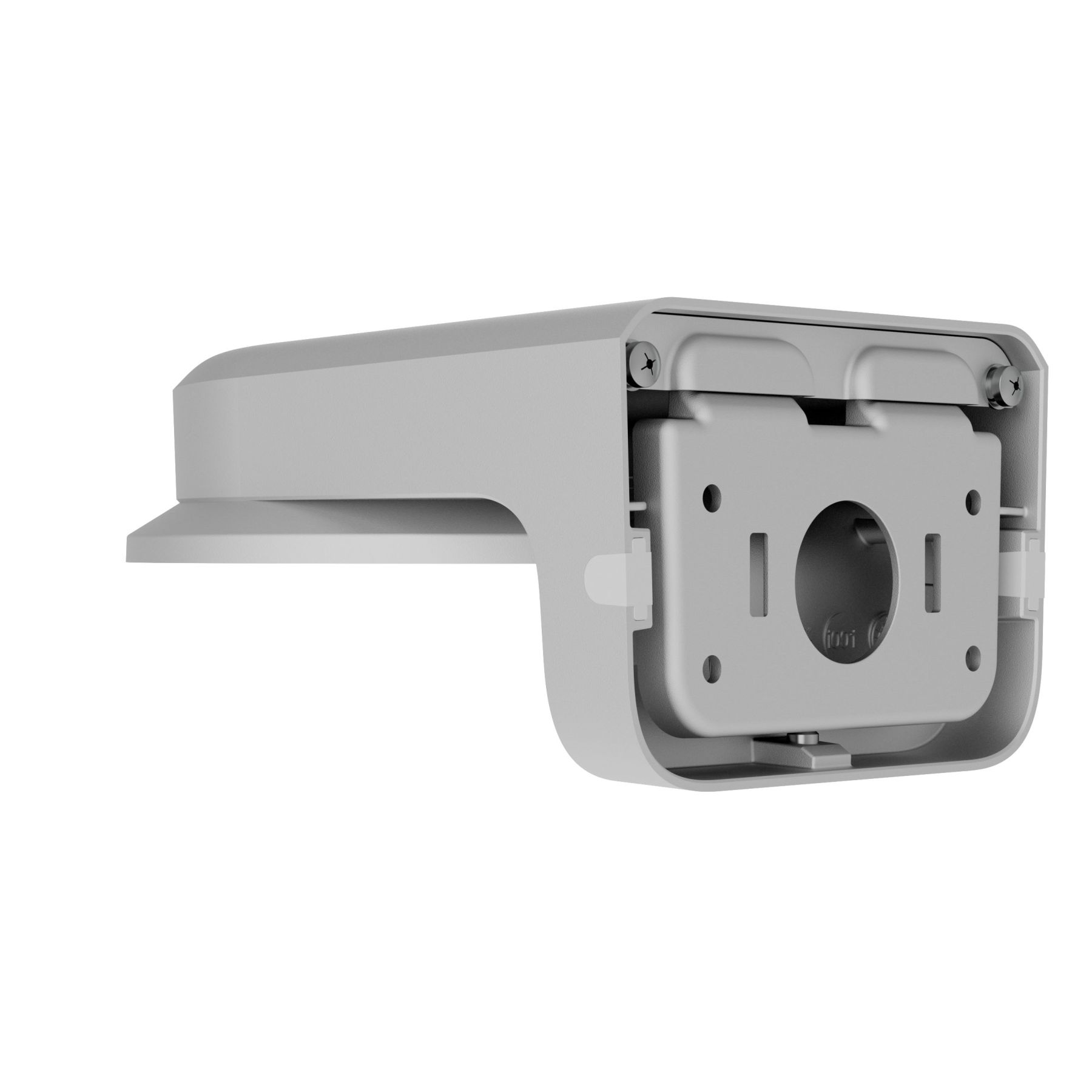

The mounting construction includes prepared mounting points, threaded inserts, a locking screw and slots for mounting ties. When required, the bracket can be installed on a pole, while the cable can be routed from the side through removable housing elements.

The white color matches white Ajax cameras and suits installations where visual consistency of equipment matters. The bracket requires no regular maintenance and is designed for indoor and outdoor installation.

Technologies (used)

• L-shaped wall mount
• Compact 174 mm arm for moving the camera away from the surface
• Adapter for cameras with a motorized varifocal lens
• Internal cable space
• Side cable entry through removable housing elements
• Prepared mounting points
• Threaded inserts
• Locking screw
• Slots for mounting ties
• Wall or pole installation

Technical specifications

• Device type: wall bracket for IP cameras
• Brand: Ajax
• Model: MountCam A2 white
• Color: white
• Purpose: mounting a wired Ajax IP camera on a wall or pole
• Mounting type: wall-mounted
• Mounting format: L-shaped wall bracket
• Bracket length: 174 mm
• Number of cameras: for one IP camera
• Adapter for HLVF cameras: yes
• For cameras with a motorized varifocal lens: yes
• Compatibility with standard cameras: Ajax BulletCam, Ajax TurretCam, Ajax DomeCam Mini
• Compatibility with HL cameras: Ajax BulletCam HL, Ajax TurretCam HL, Ajax DomeCam Mini HL
• Compatibility with HLVF: Ajax TurretCam HLVF, Ajax DomeCam HLVF
• Compatibility with Superior HLVF: Superior BulletCam HLVF, Superior TurretCam HLVF, Superior DomeCam HLVF
• Compatibility with BulletCam HLVF: no
• Indoor installation: yes
• Outdoor installation: yes
• Cable space: available
• Side cable entry: yes, through removable housing elements
• Surface mounting: through prepared mounting points
• Pole mounting: possible with ties through special slots
• Pre-prepared holes: yes
• Threaded inserts: yes
• Locking screw: yes
• Installation by one installer: yes
• Maintenance: no regular maintenance required
• Material: not specified
• Dimensions: 86 x 136 x 174 mm
• Weight: 630 g
• Package contents: MountCam A2 bracket, adapter for cameras with a motorized varifocal lens, mounting template, mounting kit, hex key, quick start guide
• Warranty: 24 months

Who it's for

• video surveillance system installers
• Ajax IP camera installers
• system integrators
• site security specialists
• service technicians
• facade camera installation contractors
• video surveillance project engineers

Conclusion

Ajax MountCam A2 white is a compact wall bracket with an adapter for compatible Ajax cameras with a motorized varifocal lens. The 174 mm construction, internal cable space and side cable entry option make the model suitable for neat installation on a wall or pole.
