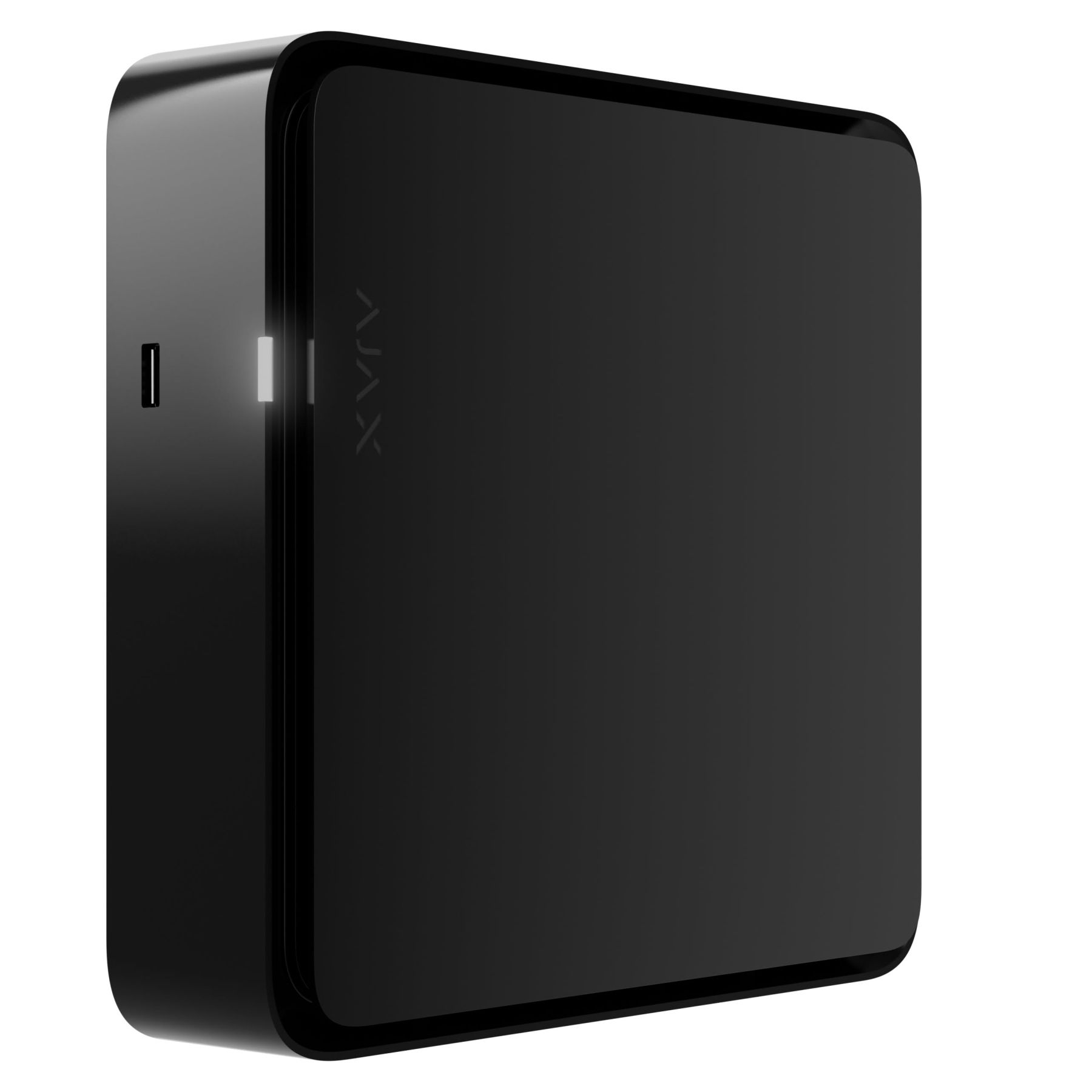

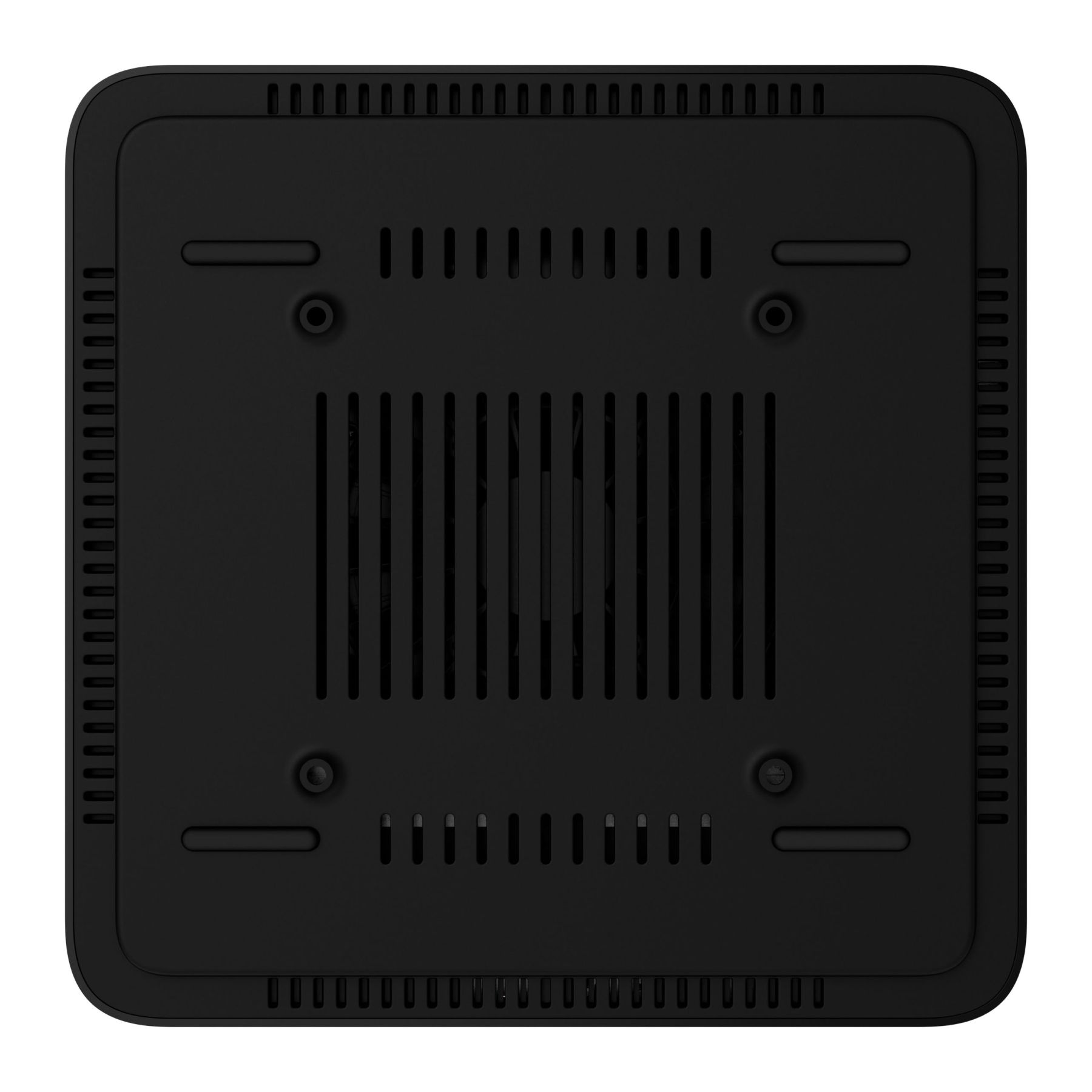

Network video recorder Ajax NVR HDC 16 black, HDMI, 12V, 16 channels, black, 140351.122.BL1
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
Features
The network video recorder is designed for surveillance systems with a high number of channels. It supports connection of up to sixteen IP cameras, including Ajax devices and third-party cameras via ONVIF and RTSP.
Video processing is performed up to 4K resolution. H.265, H.264, and JetSparrow codecs help reduce data size and optimize storage usage.
Local viewing is available via HDMI output with monitor connection. Control is possible through applications or locally using USB input devices.
Storage is handled by a 3.5-inch SATA drive up to 16 TB. Motion detection and activity zones simplify searching within recorded data.
The 8–16 V power input allows operation with backup or autonomous power systems. A built-in accelerometer detects changes in device position.
Technologies (used)
- H.265 H.264 JetSparrow codecs
- ONVIF Profile S T RTSP support
- Motion detection and activity zones
- Ajax system integration
- Accelerometer
Technical specifications
- Type network video recorder
- Channels 16
- Recording resolution up to 8 MP 4K
- Incoming bandwidth up to 80 Mbps
- Outgoing bandwidth up to 40 Mbps

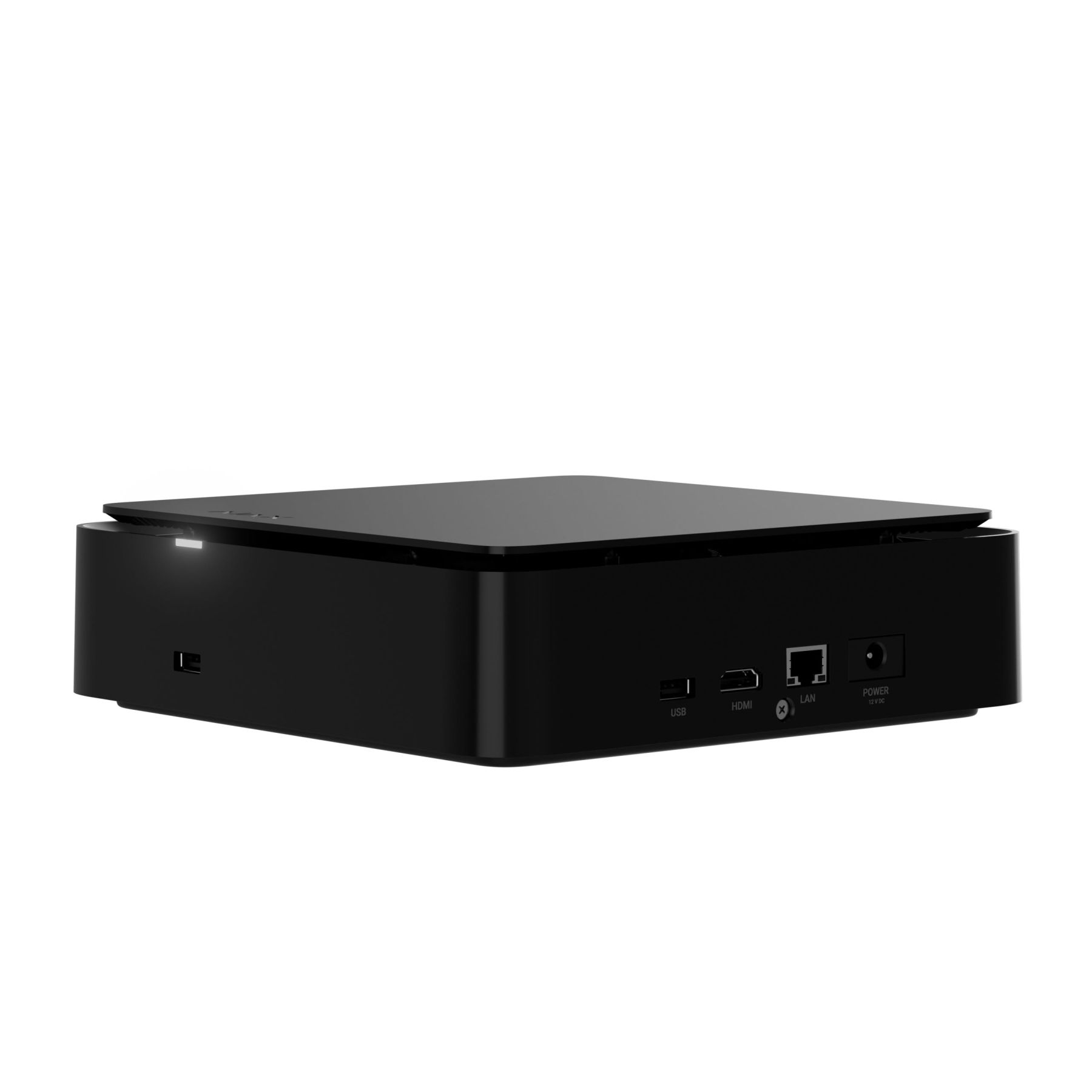

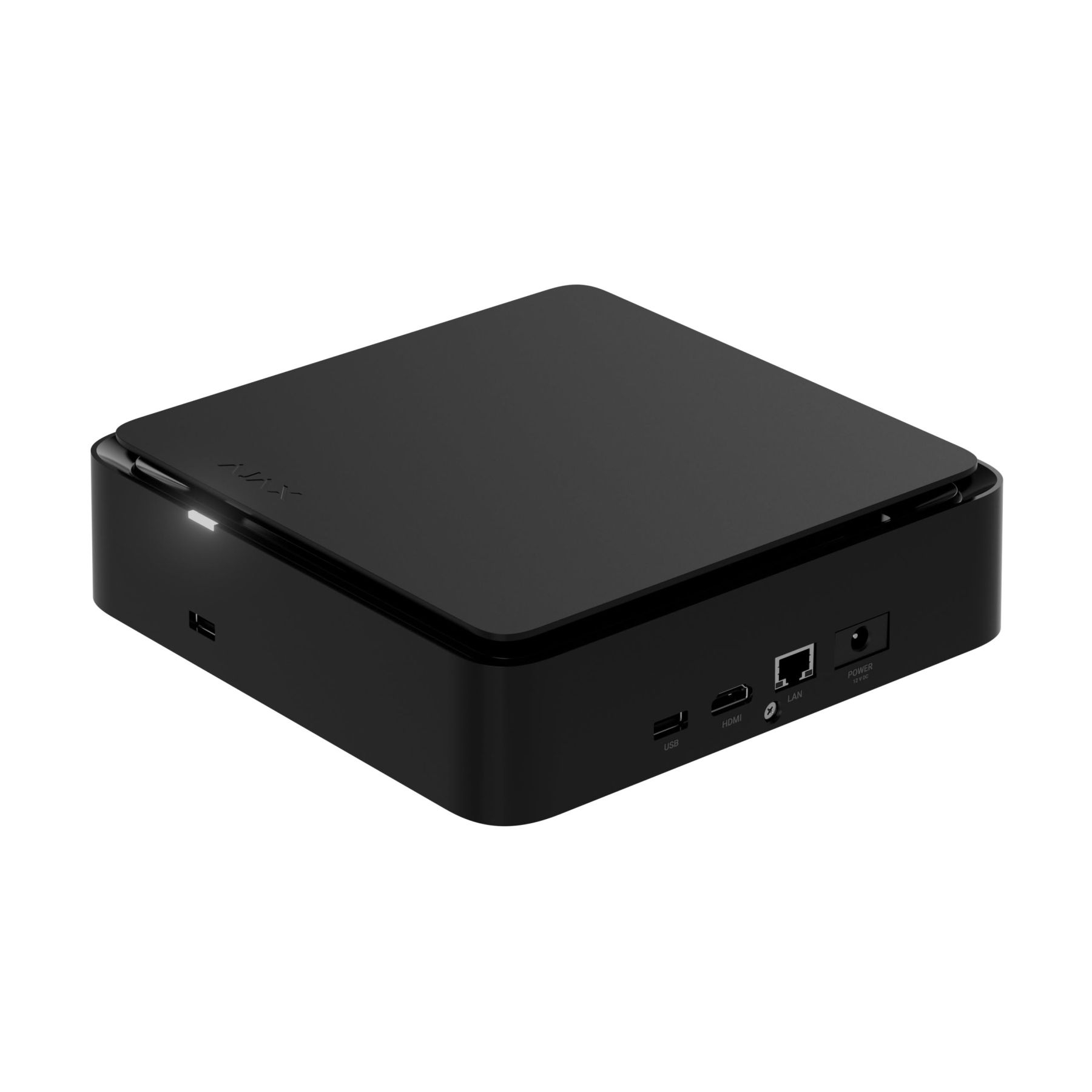

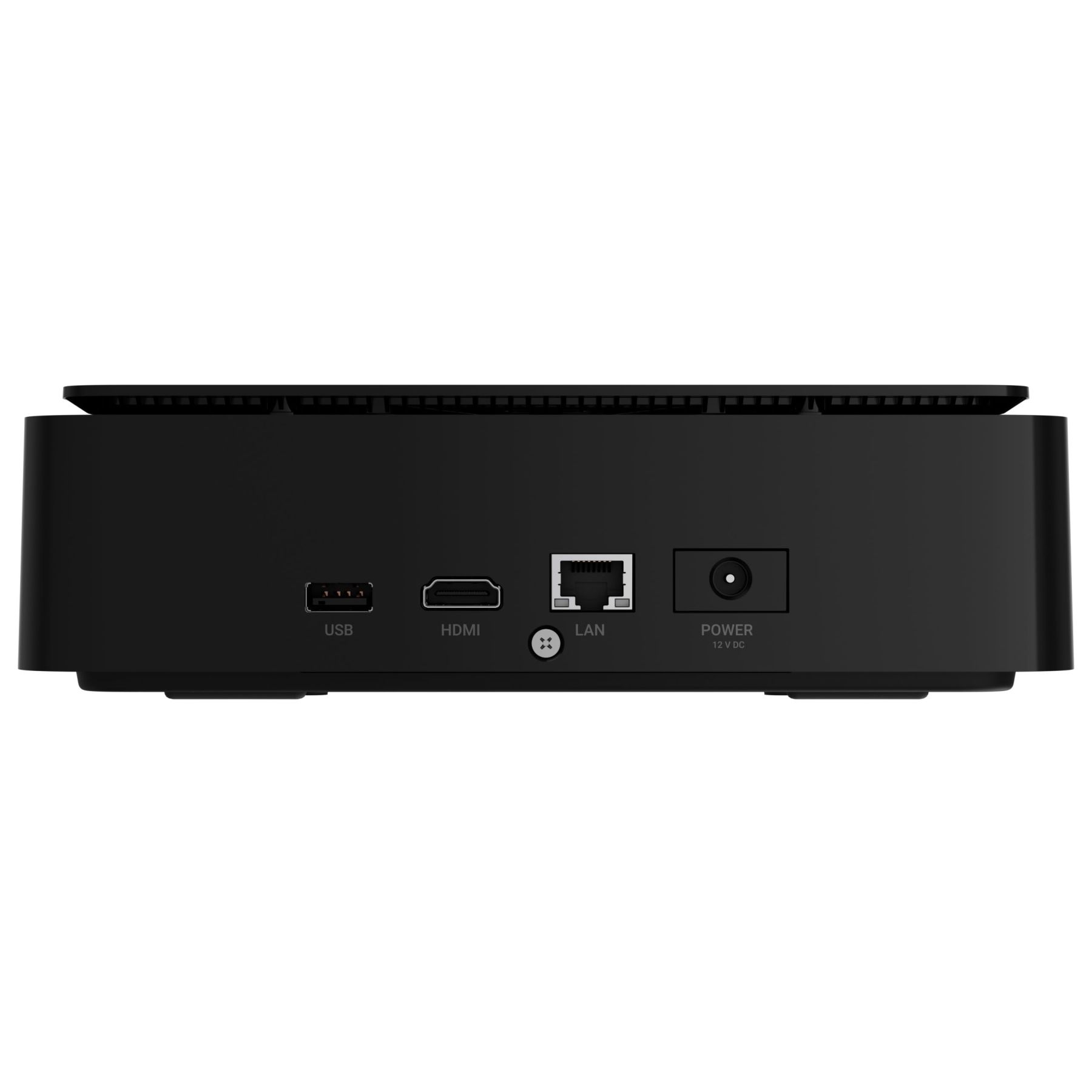

- Video output HDMI

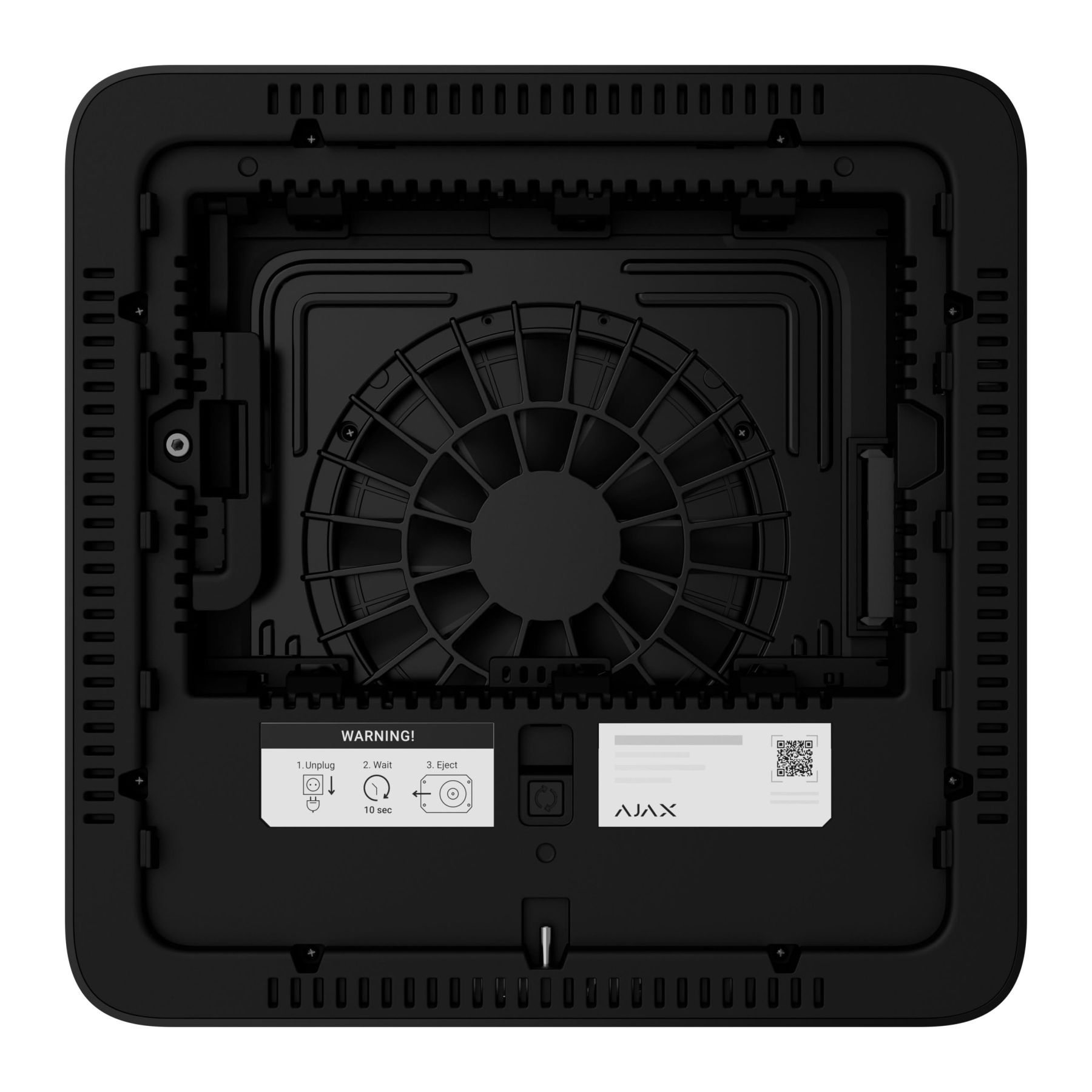

- Storage 1 SATA 3.5 inch up to 16 TB
- Ethernet RJ-45 10/100
- USB 2 USB 2.0
- Power supply 8–16 V up to 4 A
- Power consumption up to 24 W
- Operating temperature 0 to +40 °C
Who it's for
- Owners of large residential properties
- Office complex staff
- Retail space owners
- Warehouse personnel
- Security system technicians
Conclusion
The device combines multi-channel support, high-resolution video processing, and flexible power input. Suitable for scalable surveillance system deployment.
-
:75
-
Weight g:752
-
Type:мережевий відеореєстратор
-
Category:video surveillance
-
Network interface:Rj45
-
Operating temperature:0 - 40°C
-
Power supply:8–16 В
-
Additional information:remote setup, RJ45 connector, керування через застосунок Ajax, вхідна пропускна здатність: до 80 Мбіт/с; вихідна пропускна здатність: до 40 Мбіт/с
-

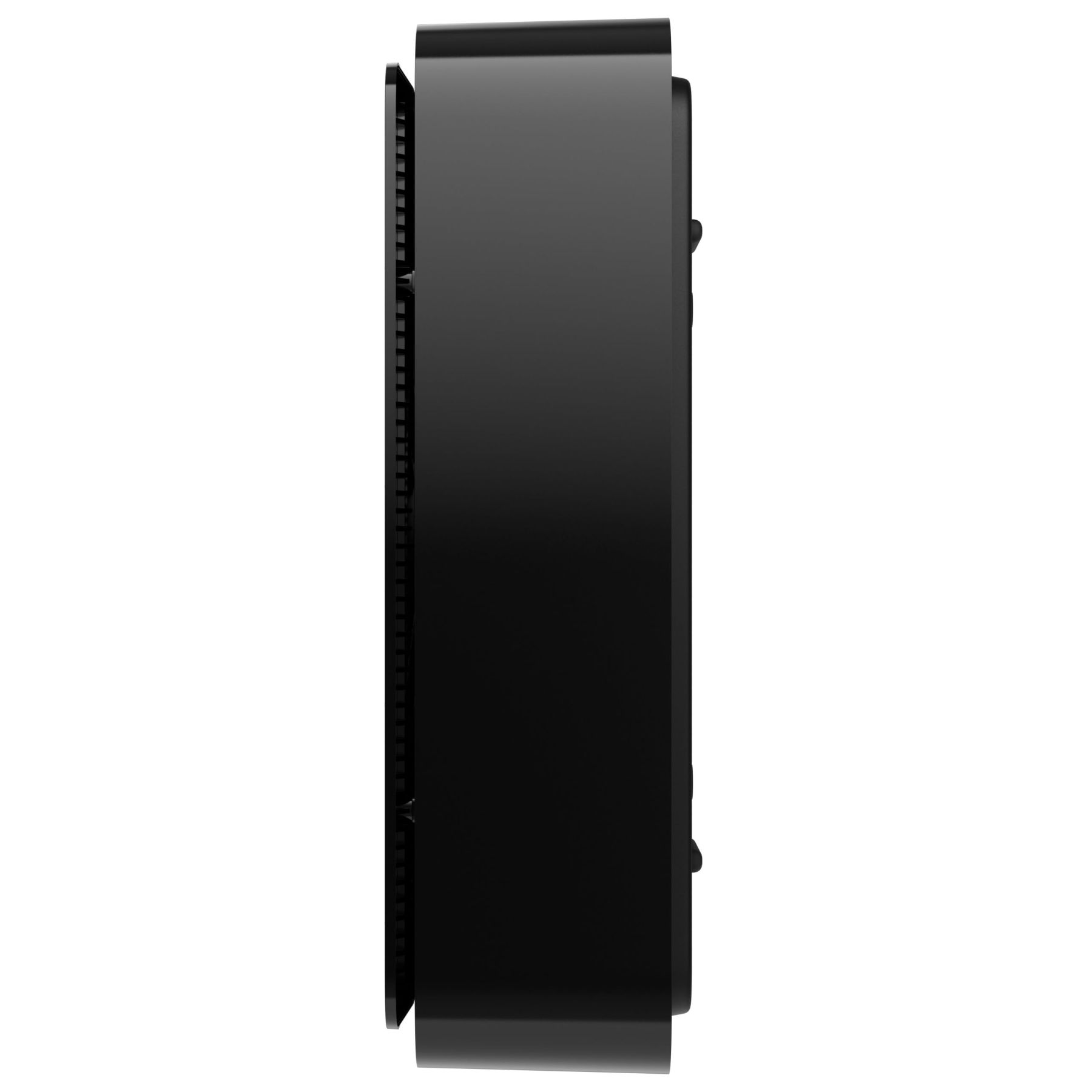

Dimensions:212 x 212 x 64 mm
-
Colour:black
-
Installation type:indoors
-

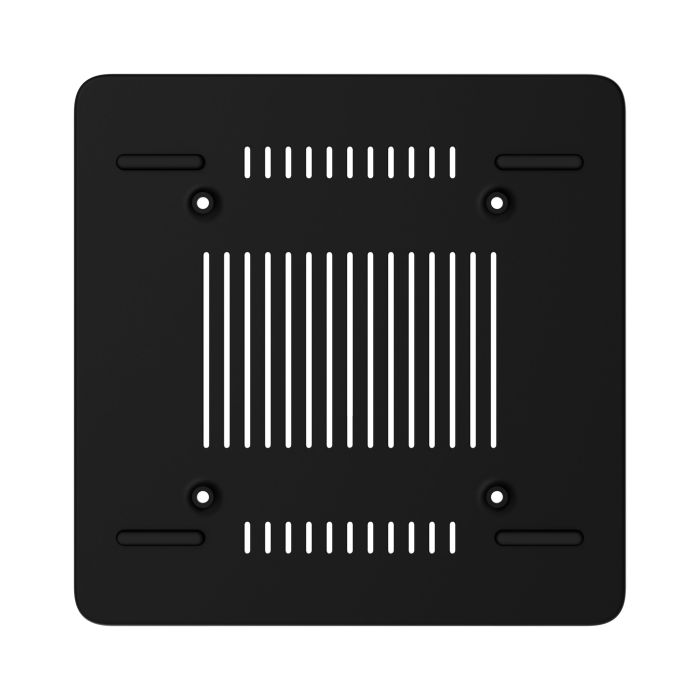

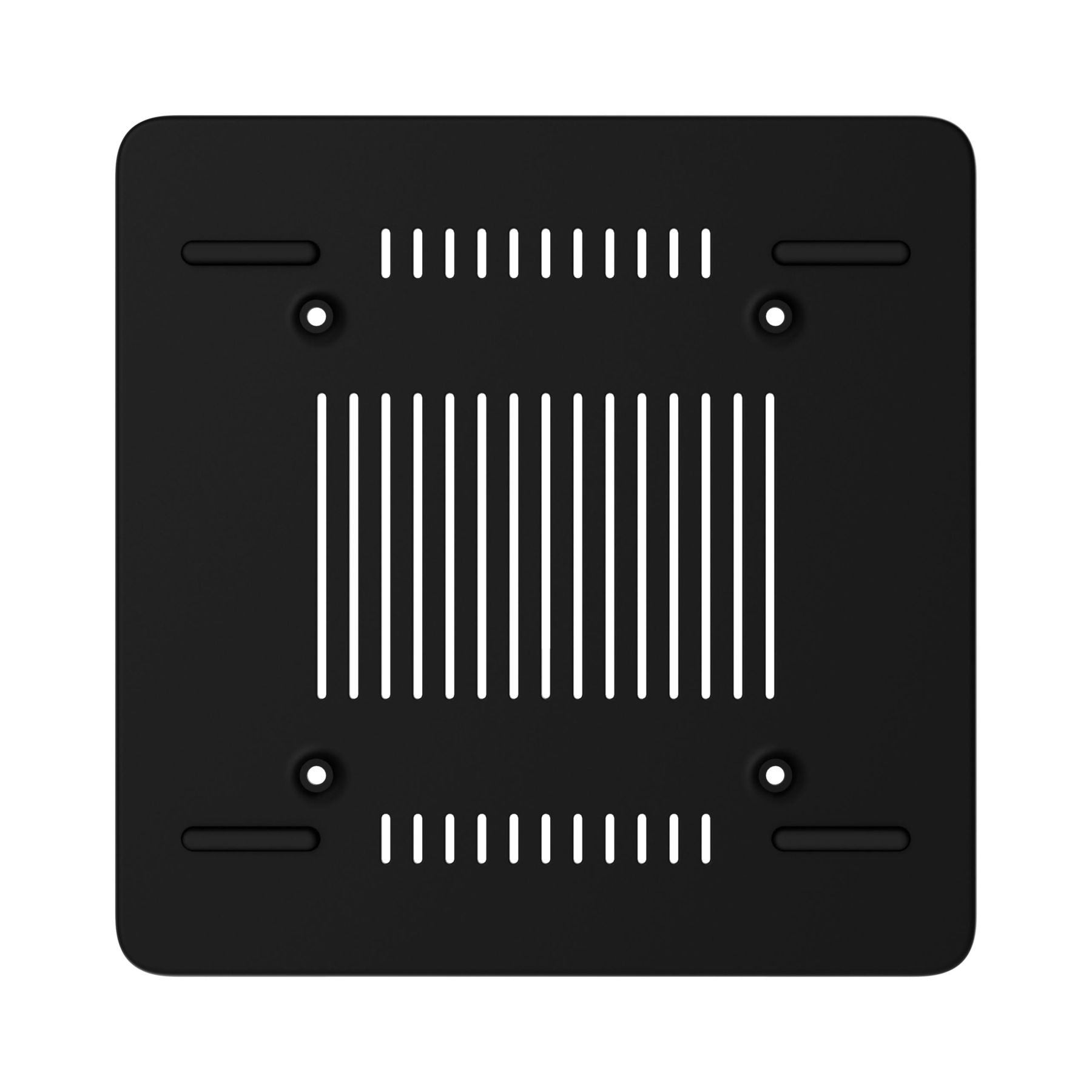

Package Contents:мережевий відеореєстратор, кріплення SmartBracket
-
Max. number of connected cameras :16
-
HDD:16 Тб
-
Features:the ability to simultaneously view all cameras in the application, built-in motion detector, detection zones, recording scenarios, instant access to the archive and events through a mobile or desktop application, Videowall support, notifications about the state of the hard disk (HDD) and sabotage attempts (tamper), LAN port, USB ports, вбудований акселерометр для сповіщень про зміщення пристрою, роздільна здатність до 4K, RTSP потік від камер, підтримувані протоколи: ONVIF Profile S/T, RTSP, HDMI-вихід для локального перегляду відео, кодеки H.265, H.264, JetSparrow, виявлення руху в кадрі та налаштування зон активності, відеостіна, таймлайн і фільтри подій у застосунках Ajax, робота з IP-камерами Ajax і сторонніми камерами, підтримувані формати: 8 Мп, 6 Мп, 5 Мп, 4 Мп, 3 Мп, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
-
Case/housing:plastic
-
Country of manufacture:Ukraine
-
Communication channels:Ethernet
-
Power W:24
