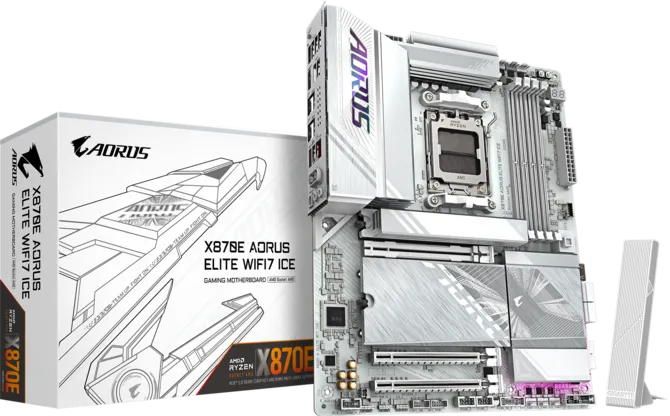

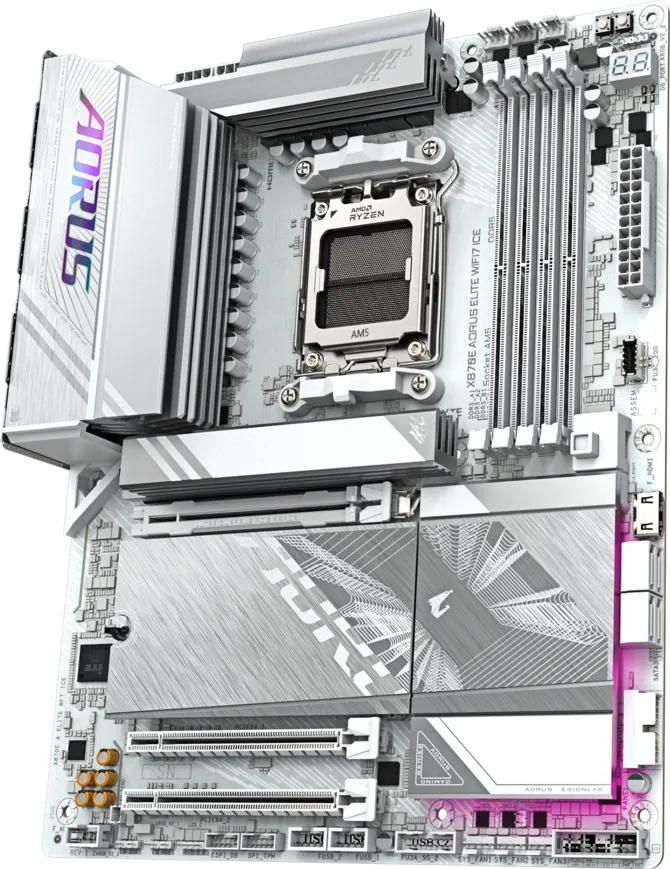

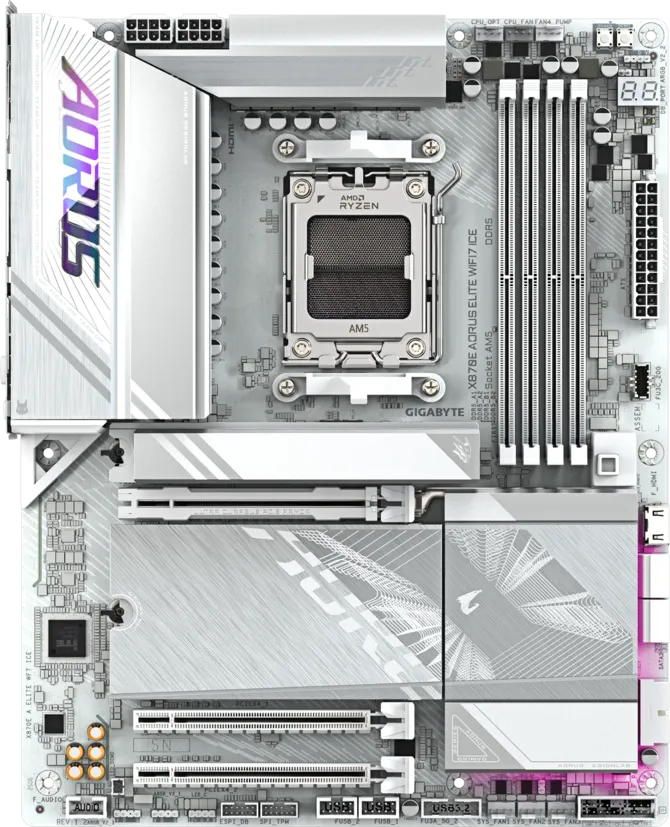

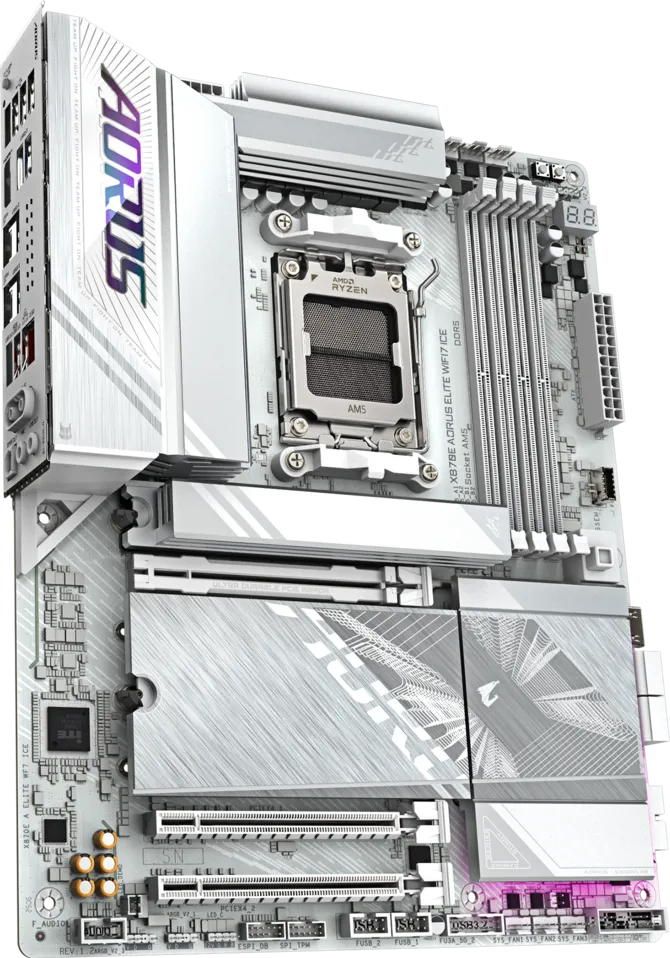

GIGABYTE Motherboard X870E AORUS ELITE WIFI7 ICE sAM5 X870 4xDDR5 M.2 Wi-Fi BT HDMI Typc-C ATX White
Article:
X870E_A_ELITE_WIFI7_ICE
Super price
Leave review
Out of stock
Shipping methods
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
Payment methods
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
Features
This ATX motherboard is a flagship solution engineered to fully unleash the potential of multi-core AMD Ryzen 9000, 8000, and 7000 series processors. A defining element of this model is its premium all-white ICE aesthetics, making it an ideal choice for conceptual, light-themed PC builds. A robust digital power delivery system paired with massive cooling heatsinks guarantees stable system operation under prolonged intensive workloads and extreme hardware overclocking. The platform boasts an expanded connectivity layout, featuring high-speed ports both on the rear I/O panel and directly on the printed circuit board.
The platform provides unprecedented storage expansion capabilities with four M.2 slots for high-speed solid-state drives, three of which support the cutting-edge PCIe 5.0 x4 standard. For the graphics subsystem, a reinforced PCI Express x16 slot with PCIe 5.0 support is present, delivering maximum bandwidth for next-generation flagship graphics cards. The motherboard also features a rich set of internal headers for connecting liquid cooling systems, fans, and second-generation addressable RGB LED strips. Furthermore, a unique internal HDMI port is integrated directly onto the PCB, designed to output hardware telemetry or custom graphics to accessory LCD screens inside the chassis.
Peripheral connectivity is elevated to a new level through the integration of the ASMedia USB4 controller. The rear panel hosts two fully-functional USB4 Type-C ports with data transfer speeds up to 40 Gbps, supporting high-definition DisplayPort video output. To connect the computer case external interfaces, a modern high-speed USB Type-C header supporting the USB 3.2 Gen 2x2 standard is embedded on the board. The networking subsystem is represented by an ultra-fast Wi-Fi 7 wireless module and a wired 2.5GbE LAN controller, ensuring minimal latency in online games and instantaneous large file downloads. The premium Realtek ALC1220 audio codec with optical S/PDIF out support guarantees crystal-clear, cinematic sound quality.
Technologies (used)
- AMD EXPO™ / XMP — automatic overclocking profiles for DDR5 memory modules up to 8200 MT/s.
- USB4® Controller — twin Type-C ports providing up to 40 Gbps data transfer rates and supporting 4K displays at 240 Hz.
- Wi-Fi 7 (802.11be) — next-generation wireless connectivity on the 6 GHz band with 160 MHz channel bandwidth and Bluetooth 5.4.
- Q-Flash Plus — BIOS firmware updating via a dedicated button without needing a CPU or RAM installed.
- Smart Detection — intelligent tracking of voltage, temperature, fan speeds, and liquid cooling flow rates.
Technical specifications
- Model/Article: X870E AORUS ELITE WIFI7 ICE
- CPU Socket: AMD Socket AM5
- Chipset: AMD X870E
- Memory Support: 4 x DDR5 DIMM, up to 256 GB, dual-channel architecture, up to 8200(OC) MT/s
- Expansion Slots: 1 x PCIe 5.0 x16 (from CPU), 1 x PCIe 4.0 x16 (runs at x4), 1 x PCIe 3.0 x16 (runs at x4)
- Storage Interfaces: 3 x M.2 PCIe 5.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s
- RAID Support: NVMe (RAID 0/1/5/10), SATA (RAID 0/1/10)
- Network Interfaces: Realtek 2.5GbE LAN, Realtek Wi-Fi 7 RTL8922AE + Bluetooth 5.4
- Audio Subsystem: Realtek ALC1220 High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out

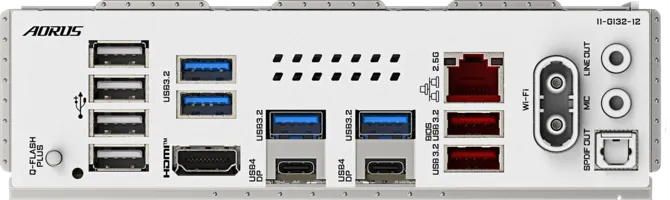

- Rear Panel Ports: 2 x USB4® Type-C (with DP), 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x HDMI 2.1, 1 x RJ-45, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF Out, Q-Flash Plus button
- Onboard Connectors: 1 x USB Type-C® USB 3.2 Gen 2x2 header, 2 x USB 3.2 Gen 1 headers (up to 4 ports), 2 x USB 2.0/1.1 headers (up to 4 ports), 1 x internal HDMI 1.4 port, 4 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x CPU fan header, 1 x CPU fan/pump header, 3 x system fan headers, 1 x system fan/pump header, 3 x Addressable RGB Gen2 headers, 1 x RGB LED header, 1 x front panel audio, 1 x front panel header, 1 x TPM header, 1 x power button, 1 x reset button, Clear CMOS and Reset jumpers, 1 x 24-pin ATX main power, 2 x 8-pin ATX 12V
- Form Factor & Dimensions: ATX Form Factor (30.5 cm x 24.4 cm)
Who it's for
- For enthusiasts and gamers assembling uncompromising gaming rigs featuring a white or silver color scheme.
- For professional content creators requiring maximum PCIe 5.0 storage speeds and USB4 ports for heavy 4K/8K video processing.
- For overclockers focused on fine-tuning Ryzen processors and pushing next-gen DDR5 memory modules to their limits.
Conclusion
The GIGABYTE X870E AORUS ELITE WIFI7 ICE serves as a high-tech foundation for a modern computer, offering uncompromising speeds across PCIe 5.0 and USB4 interfaces. Its aesthetic white design paired with the advanced Wi-Fi 7 wireless standard and a vast array of internal and external connectivity options makes this motherboard a future-proof choice for years to come.
-
Towards:gaming (overclocking)
-
Form Factor:ATX
-
For processors:AMD
-
Connection type:AM5
-
Processor compatibility:AMD Ryzen 9000/8000/7000
-
Northbridge (chipset):AMD X870E
-
Connector type:DDR5
-
Maximum operating frequency MHz:8200
-
The maximum amount of memory GB:256
-
Graphical interface:PCI-E x16 4.0, PCI-E x16 3.0, PCI-E x16 5.0
-
HDMI Output:Yes
-
Sound:7.1
-
Connection interface:SATA 3, M.2
-
SATA3 (6 Gb / s):4 ports
-
LAN (RJ-45):2.5 Gbps
-
M.2 connector:1, 3
-
Support software RAID:Yes
-
Аudiochip:Realtek ALC1220
-
3.5 mm jack (mini-Jack) pcs:2
-
Dimensions (HxW):305 x 244 mm
-
S/P-DIF:Yes
-
DDR5:4 slots
-
Wi-Fi:Yes
-
Bluetooth:Yes
-
USB pcs:21
-
Support for XMP:Yes
-
Support ECC:Yes
