Features

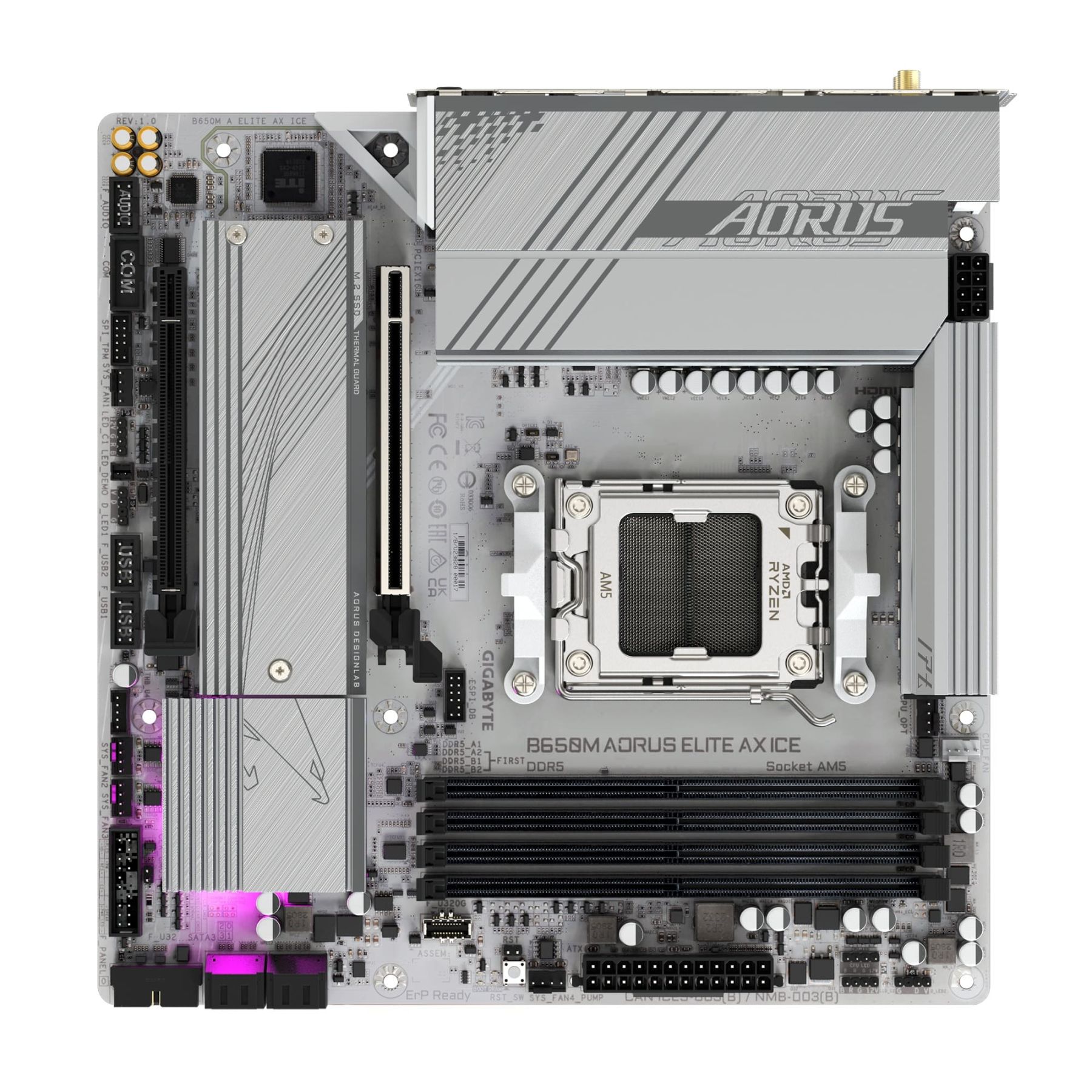

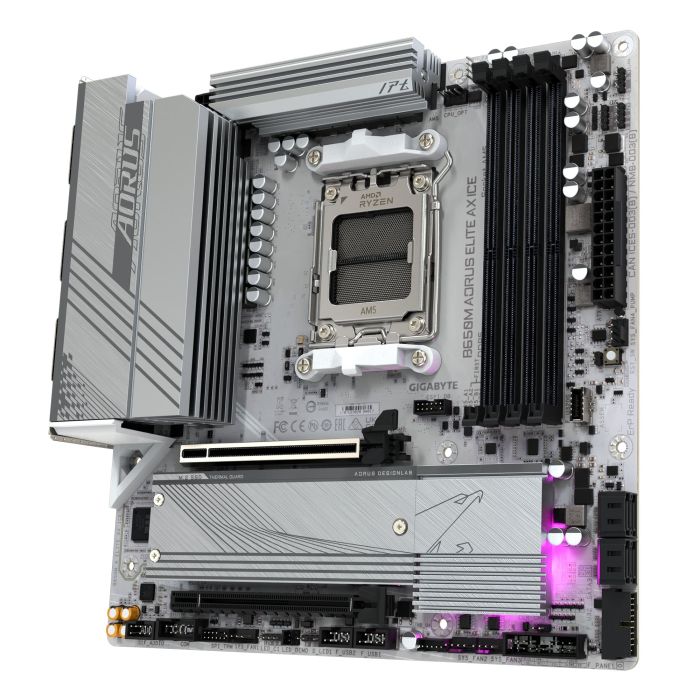

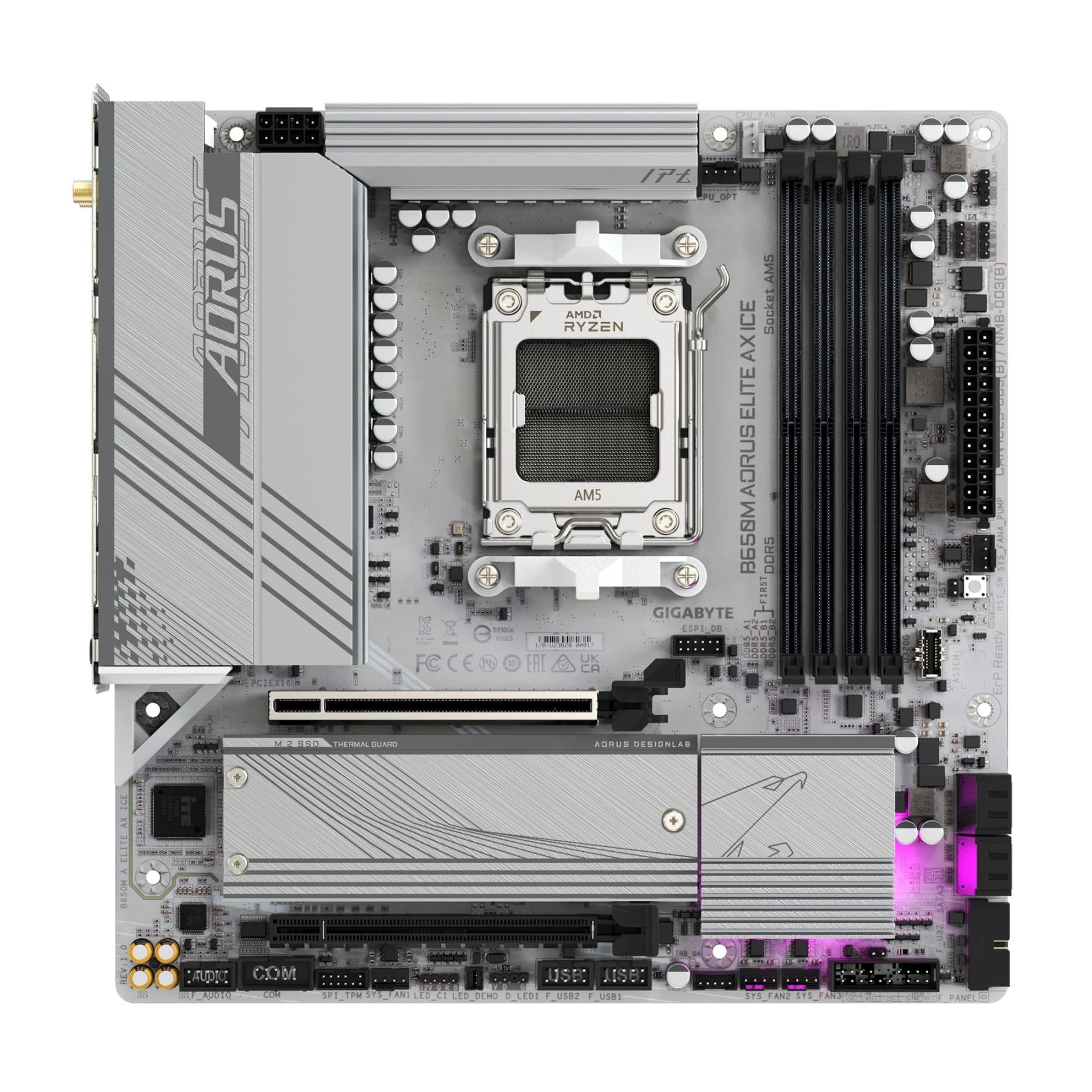

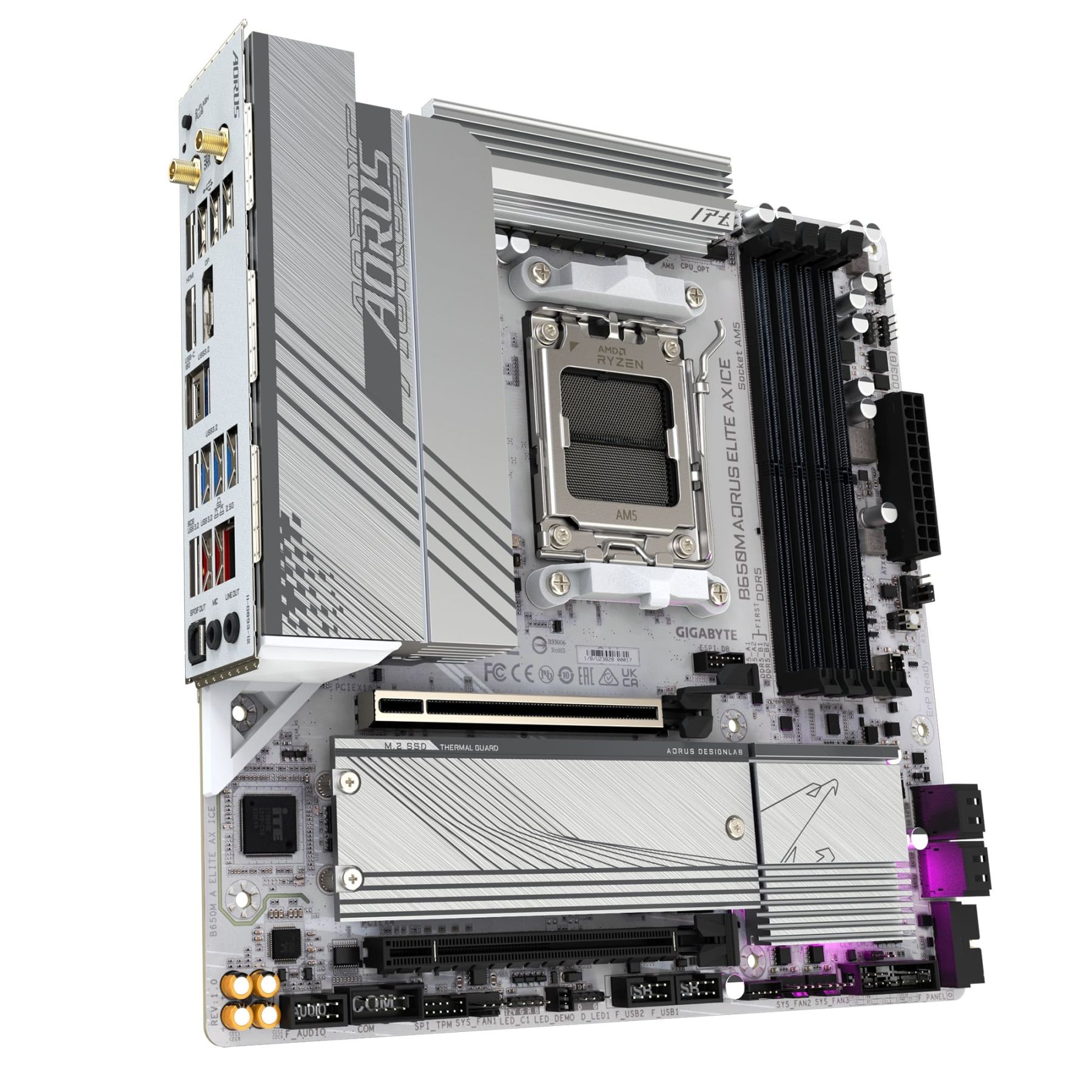

The GIGABYTE B650M A ELITE AX ICE motherboard is based on the AMD B650 chipset and compatible with Ryzen 7000, 8000, and 9000 series processors. It features four DDR5 slots supporting up to 256 GB of memory with speeds up to 8000 MT/s in overclock mode. Dual-channel memory architecture and support for AMD EXPO and XMP profiles allow performance optimization based on configuration.

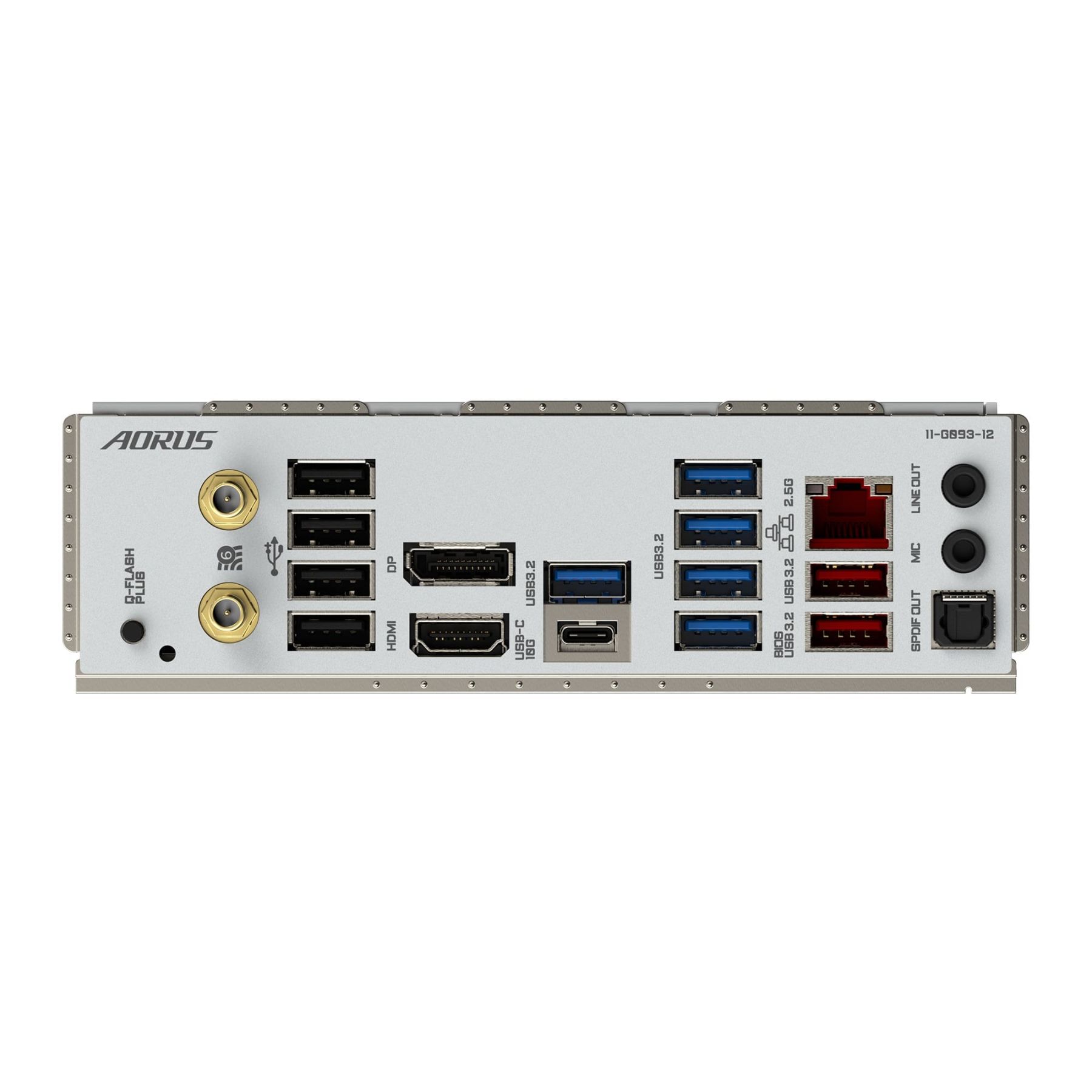

Integrated Radeon graphics provide output via DisplayPort at 3840x2160@144 Hz and HDMI at 4096x2160@60 Hz. The Realtek audio codec supports multi-channel sound up to 7.1, with S/PDIF Out for digital audio. Networking includes 2.5GbE LAN and Wi-Fi 6E with Bluetooth 5.3, covering 2.4/5/6 GHz bands for stable connectivity.
Expansion slots cover PCI Express x16 for graphics or NVMe SSD, with PCIe 5.0 support depending on the processor. Two M.2 connectors for SSDs enable PCIe 5.0 x4, while four SATA 6Gb/s support RAID 0, 1, 10. USB ports include Type-C with Gen 2x2, ensuring fast data transfer.
Onboard connectors accommodate coolers, LED strips, and front panels. Monitoring for voltage, temperature, and fan speed is integrated for system oversight. The 256 Mbit flash BIOS with Q-Flash Plus support simplifies updates without a processor.
Technologies (used)
- AMD EXtended Profiles for Overclocking (AMD EXPO™)
- Extreme Memory Profile (XMP)
- RAID 0, 1, 10 for storage devices
- Wi-Fi 6E with 160 MHz support
- Bluetooth 5.3
- Q-Flash Plus
- GIGABYTE Control Center (GCC)
- Realtek Audio CODEC for High Definition Audio
Technical specifications
- Processor socket: AM5
- Processor support: AMD Ryzen 7000/8000/9000
- Chipset: AMD B650
- Memory: 4x DDR5, up to 256 GB, speeds up to 8000 MT/s (OC)
- Graphics: Radeon Graphics, DisplayPort 1.4 (3840x2160@144 Hz), HDMI 2.1 (4096x2160@60 Hz)
- Audio: Realtek, 2/4/5.1/7.1-channel, S/PDIF Out
- Networking: Realtek 2.5GbE LAN, Wi-Fi 6E RTL8852CE
- Expansion slots: 1x PCIe x16 (up to 5.0), 1x PCIe x4
- Storage: 2x M.2 (up to PCIe 5.0 x4), 4x SATA 6Gb/s
- USB: 1x Type-C Gen 2x2, 2x Gen 2 Type-A, 9x Gen 1, 8x 2.0/1.1
- Form factor: Micro ATX (24.4x24.4 cm)
- BIOS: 256 Mbit AMI UEFI
Who it's for
- PC builders focusing on new-generation AMD Ryzen processors
- Users requiring fast Wi-Fi and LAN for online work
- Overclocking enthusiasts using EXPO and XMP for memory
- System developers with integrated graphics for multimedia
- Professionals working with RAID arrays for data storage
Conclusion
GIGABYTE B650M A ELITE AX ICE offers a balanced set of features for modern computer systems, emphasizing compatibility and expandability. This board facilitates component integration without compromises in performance or convenience.
-
Towards:gaming (overclocking)
-
Form Factor:micro-ATX
-
For processors:AMD
-
Connection type:AM5
-
Processor compatibility:AMD Ryzen 9000/8000/7000
-
Northbridge (chipset):AMD B650
-
UEFI BIOS:Yes
-
Connector type:DDR5
-
Maximum operating frequency MHz:8000
-
The maximum amount of memory GB:256
-
Graphical interface:PCI-E x16 4.0
-
HDMI Output:Yes
-
Sound:7.1, 5.1, 2, 4
-
Connection interface:SATA 3, M.2
-
SATA3 (6 Gb / s):4 ports
-
LAN (RJ-45):100/1000/2500 Mbps
-
Number of LAN-ports:1
-
LAN-Controller Model:Realtek®
-
USB 2.0 pcs:8
-
USB 3.2 Gen 1:7
-
USB 3.2 Gen 2:2
-
USB 3.2 Type-C pcs:2
-
M.2 connector:2
-
BIOS:UEFI
-
Support software RAID:Yes
-
Main power connector:24+8 -pin
-
Display Port:Yes
-
Dimensions (HxW):244 x 244
-
S/P-DIF:Yes
-
DDR5:4 slots
-
Wi-Fi:Yes
-
Bluetooth:Yes
-
Features:iTE I/O Controller Chip, Q-Flash utility, Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, CPU fan header, system fan headers, clear CMOS jumper, reset button, RGB LED strip header, Front Panel Header, Front panel audio connector, TPM Header, Support for Windows 10 64-bit, Support for Windows 11 64-bit, Internet Security, serial port header, Water cooling flow rate detection, LAN bandwidth management software, Утиліта Q-Flash Plus, SMA antenna connectors (2T2R), system fan/water cooling pump header, CPU cooler LED strip/RGB LED strip header
-
Support for XMP:Yes
