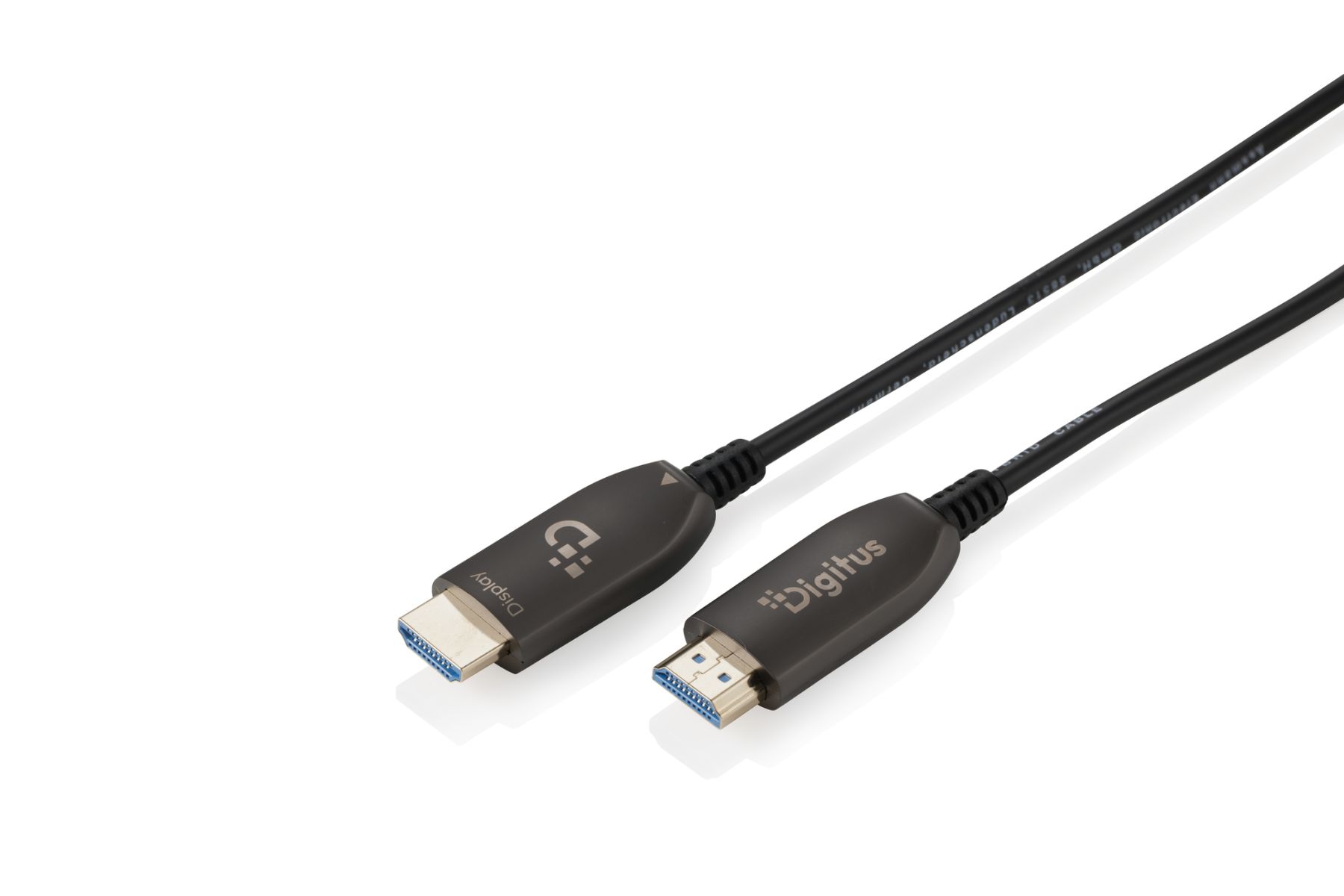

DIGITUS HDMI AOC Connection Cable, Type A M/M, 50m, Ultra HD, 8K@60 Hz, gold, bl

Features

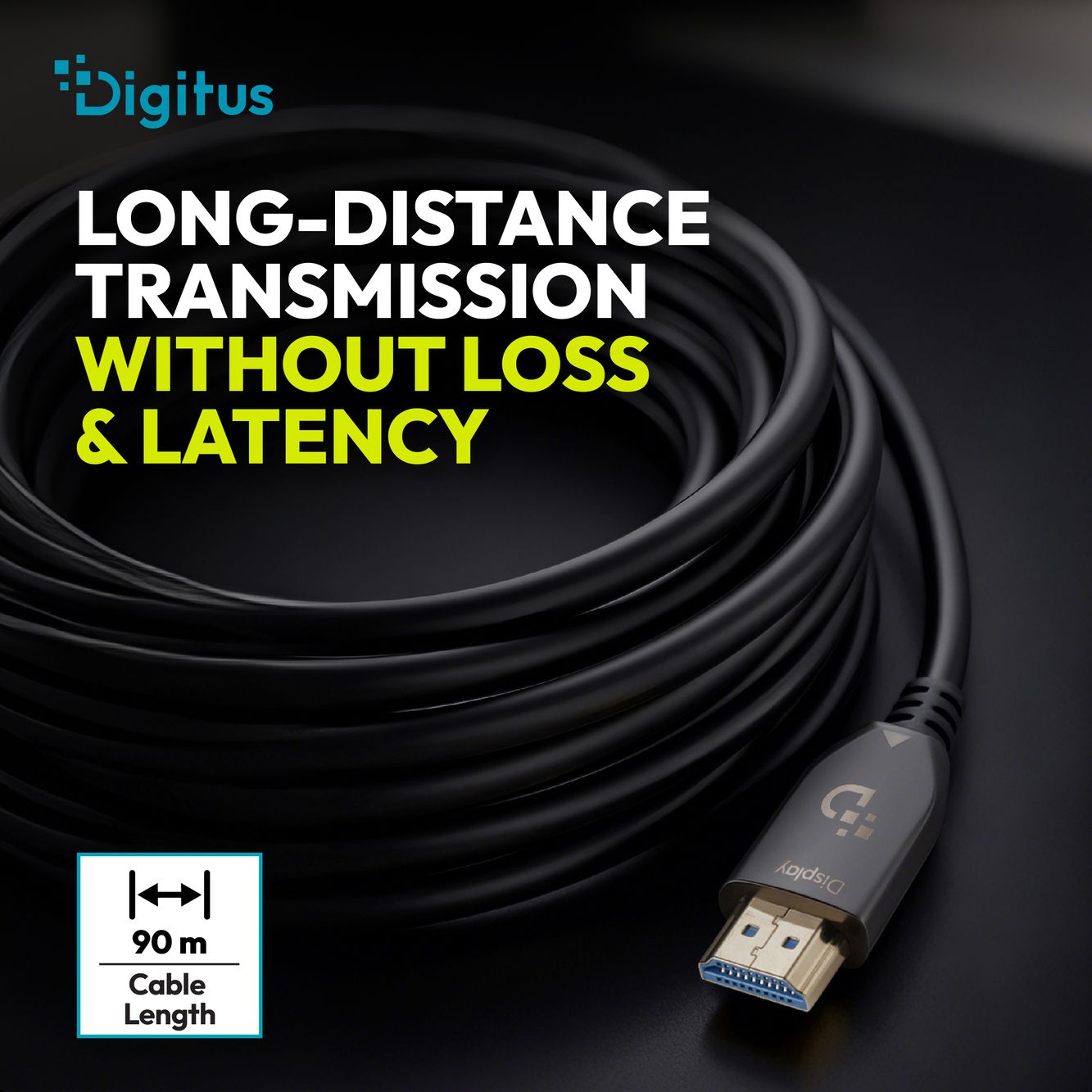

The hybrid HDMI AOC cable combines fiber optics and copper conductors for long-distance signal transmission. This design minimizes loss and maintains signal stability.

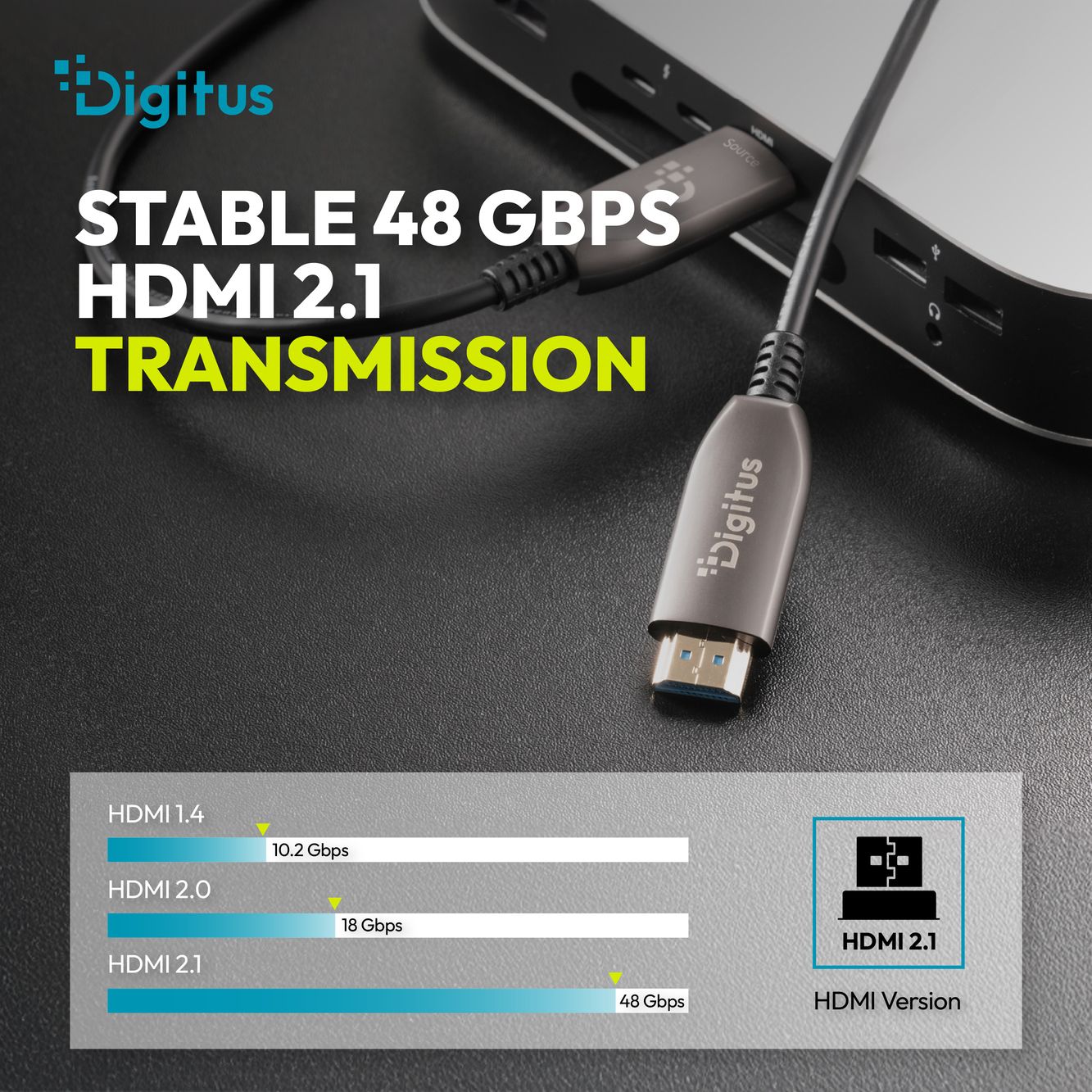

Support for up to 8K resolution at 60 Hz enables handling of highly detailed video content. A bandwidth of up to 48 Gbps ensures smooth and uninterrupted data flow.

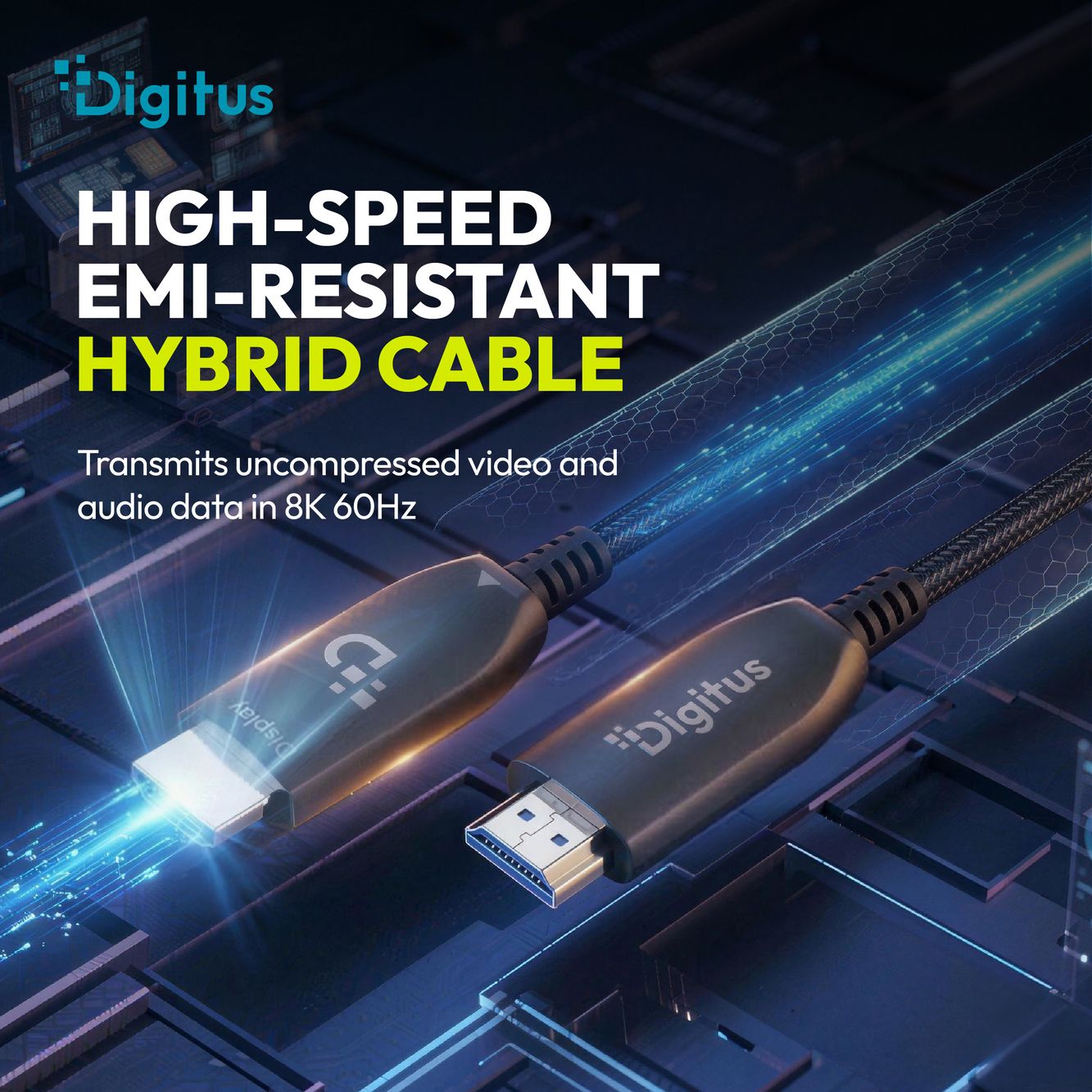

Fiber-based transmission provides strong resistance to electromagnetic interference. This is relevant for installations in environments with dense electronic equipment.

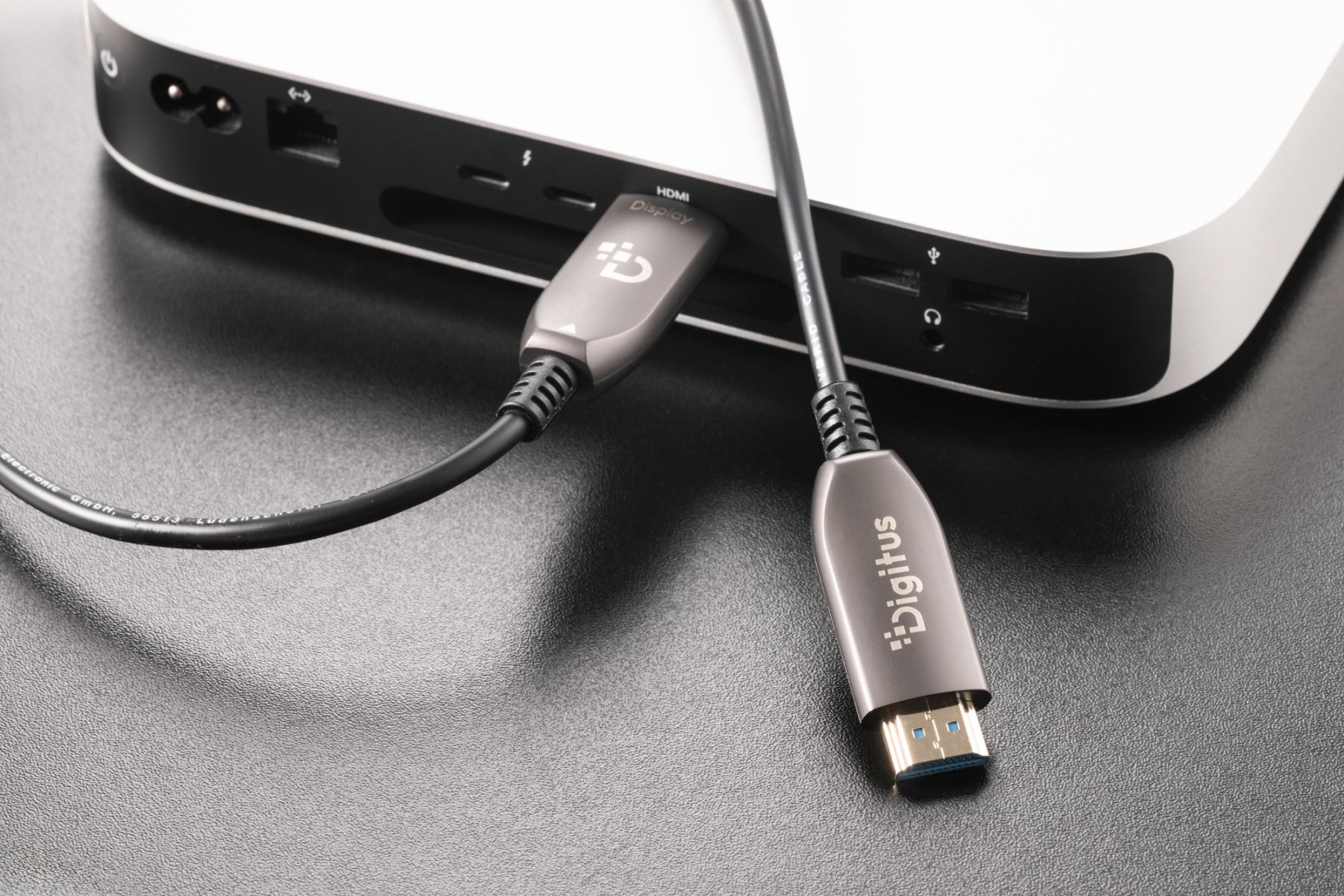

The cable is intended for fixed AV installations, including conference rooms, home theaters and digital signage systems.

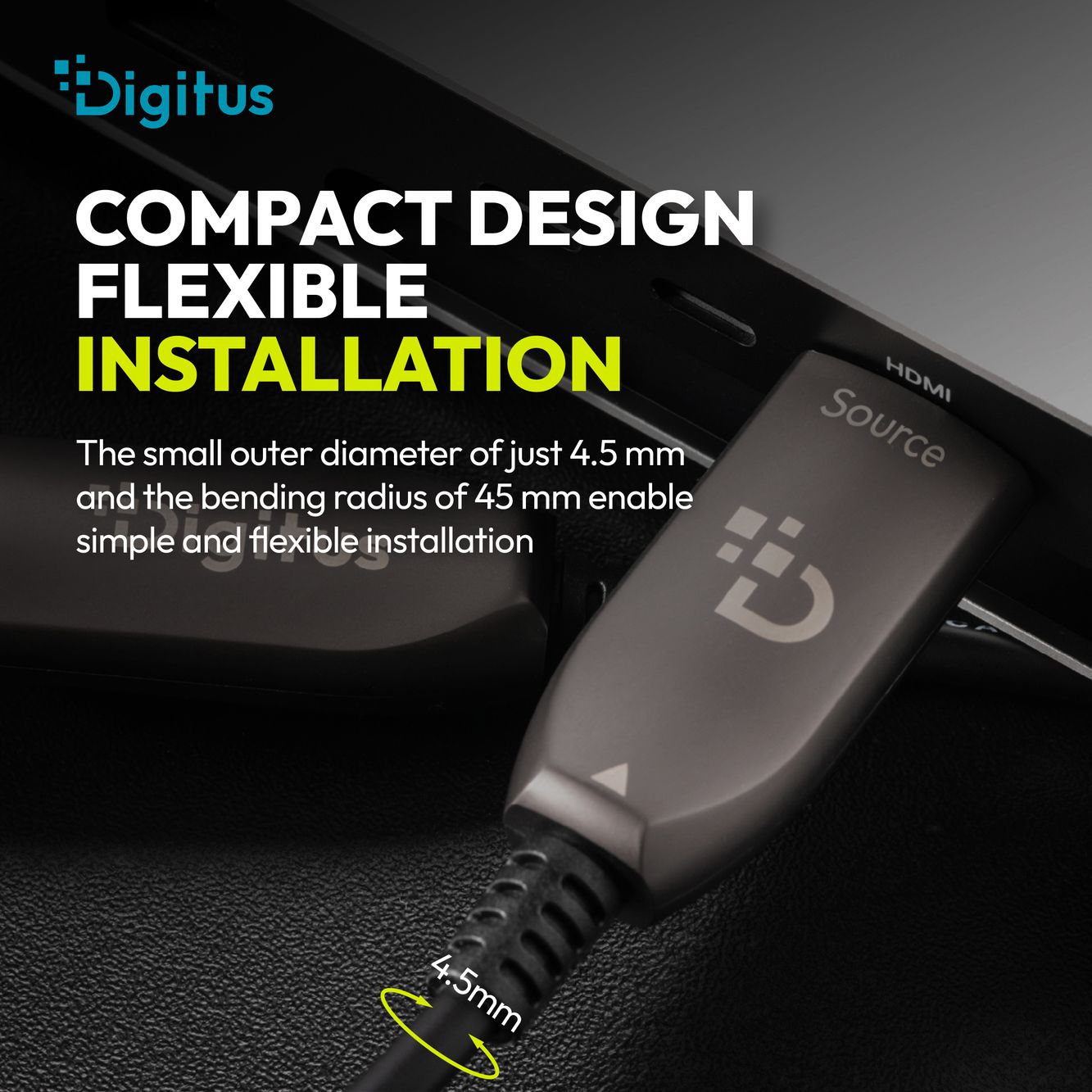

A slim outer diameter and a small bending radius allow flexible installation. Plug and play functionality eliminates the need for additional configuration.

Technologies (used)

• Hybrid AOC structure (fiber + copper, OM3)
• HDMI 2.1 support
• Bandwidth up to 48 Gbps
• HDR and BT.2020 color space
• eARC and up to 32-channel audio
• HDCP 2.2 and EDID 2.0
• Zero frame delay
• EMI resistance

Technical specifications

• Type: HDMI AOC cable
• HDMI version: 2.1
• Maximum resolution: 7680 × 4320 at 60 Hz
• Bandwidth: up to 48 Gbps
• Length: 50 m
• Connectors: HDMI Type A (male to male)
• Contact plating: gold-plated
• Structure: hybrid fiber and copper
• Cable diameter: 4.8 mm
• Bending radius: 20 mm
• Color depth: up to 48-bit
• Audio: LPCM 8-channel, Dolby TrueHD, DTS-HD Master Audio
• Operating temperature: -10 to +80 °C
• Humidity: 0–85%
• Power consumption: up to 400 mW
• Color: black

Who it's for

• AV system integrators
• Conference environments
• Home theater setups
• Digital signage systems
• Professional multimedia installations

Conclusion

The DIGITUS HDMI AOC 8K cable supports long-distance signal transmission with modern audio and video standards. The design is suited for fixed installations and demanding routing conditions.
