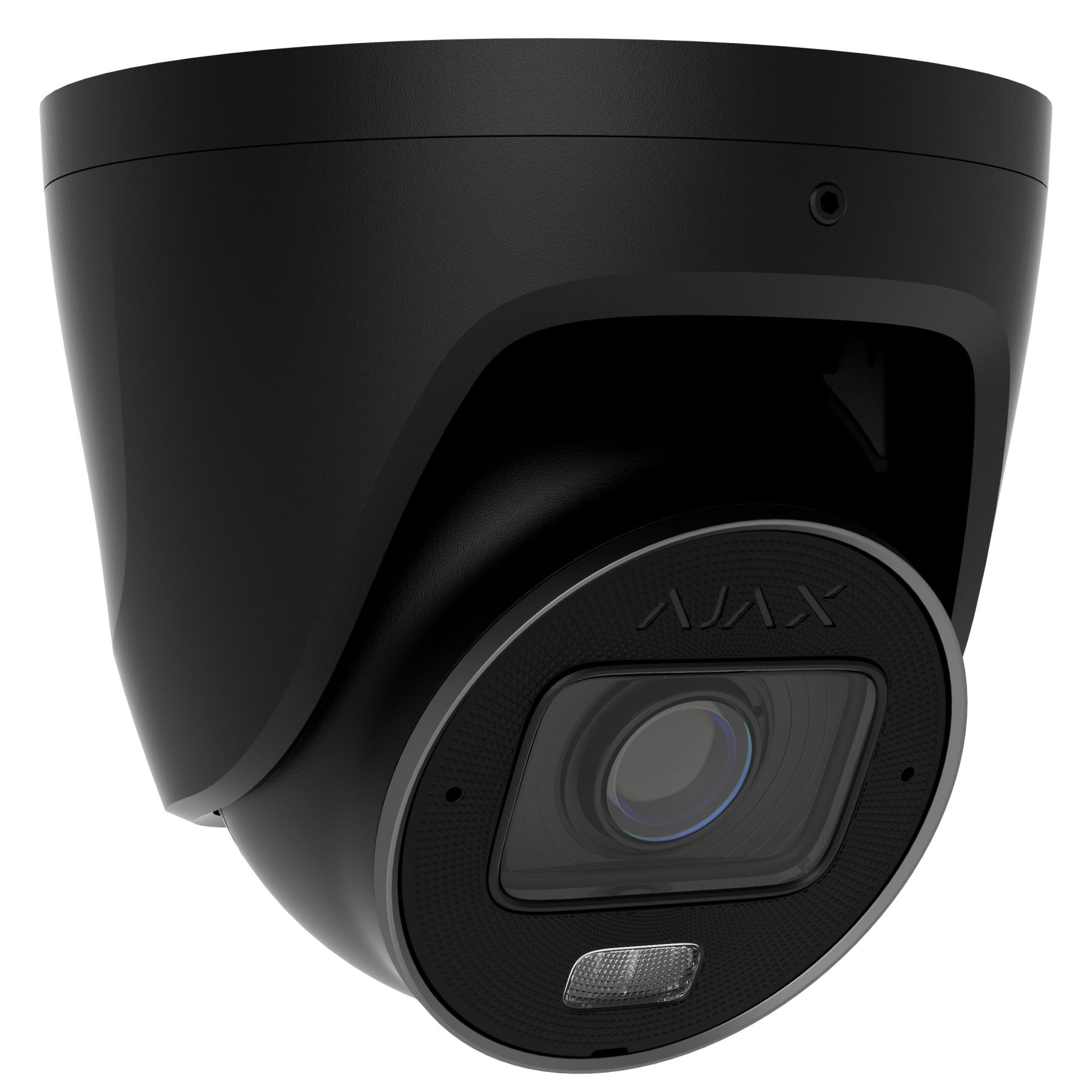

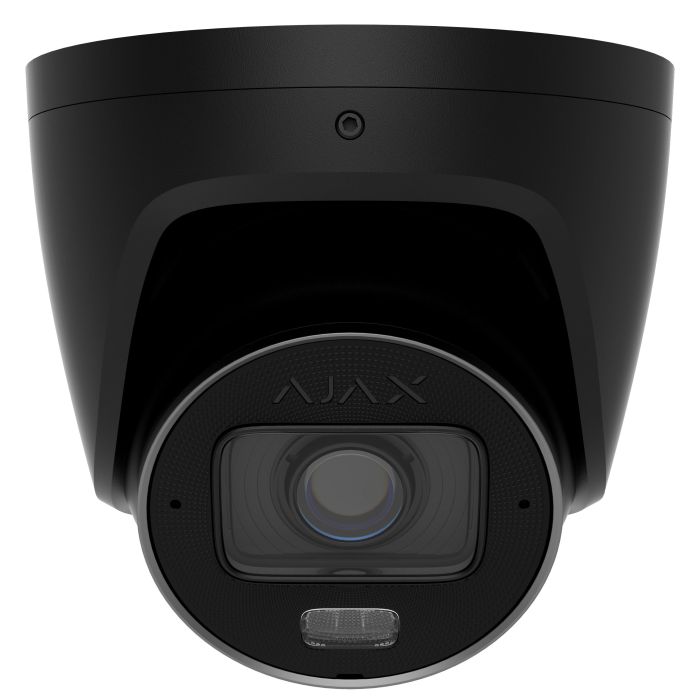

Wired IP camera Ajax TurretCam HLVF 5 MP Black, 2.8–12 mm, PoE, True WDR, IP67, IR 60 m, LED 40 m, audio, viewing angle from 31° to 111°, outdoor, black, 126280.197.BL1

Features

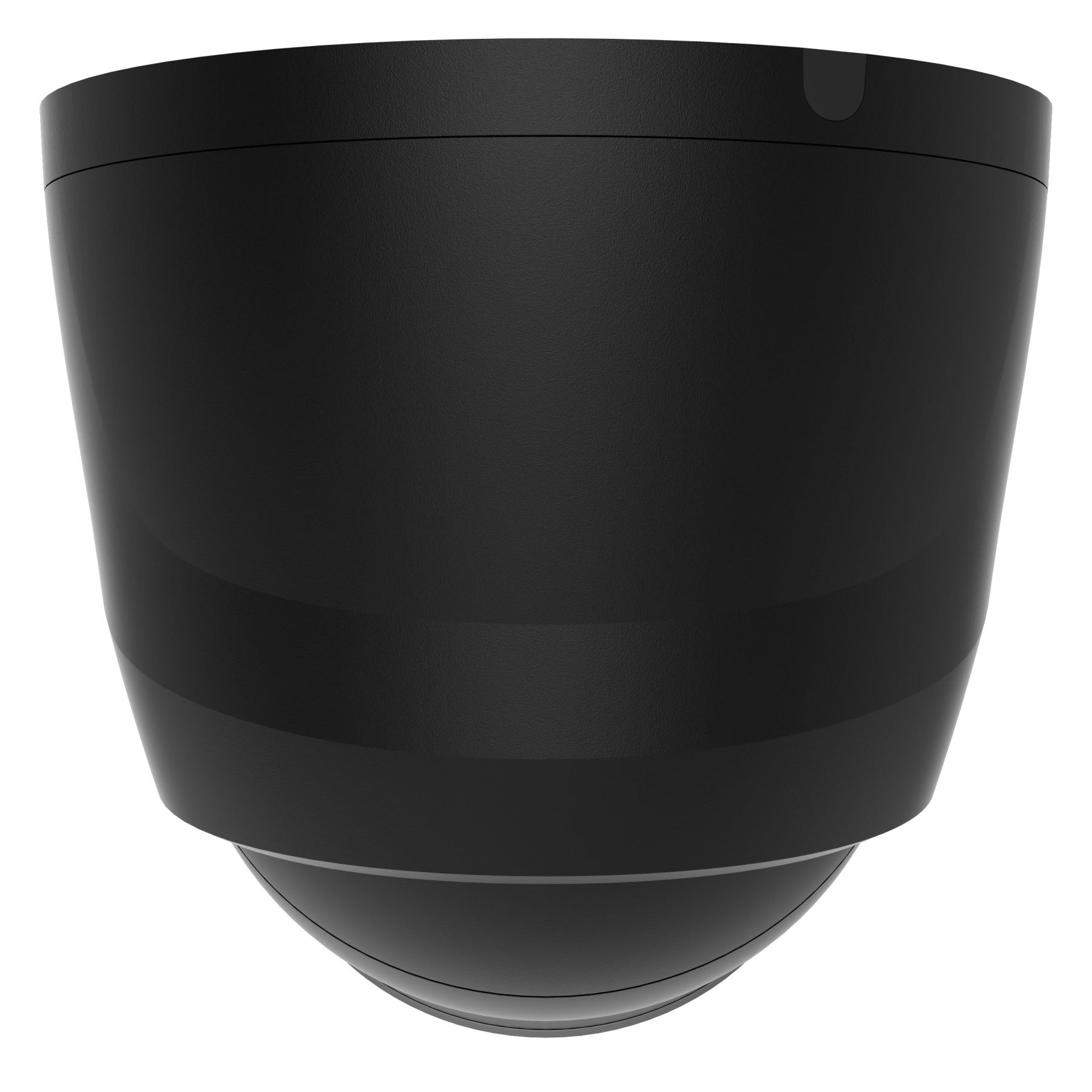

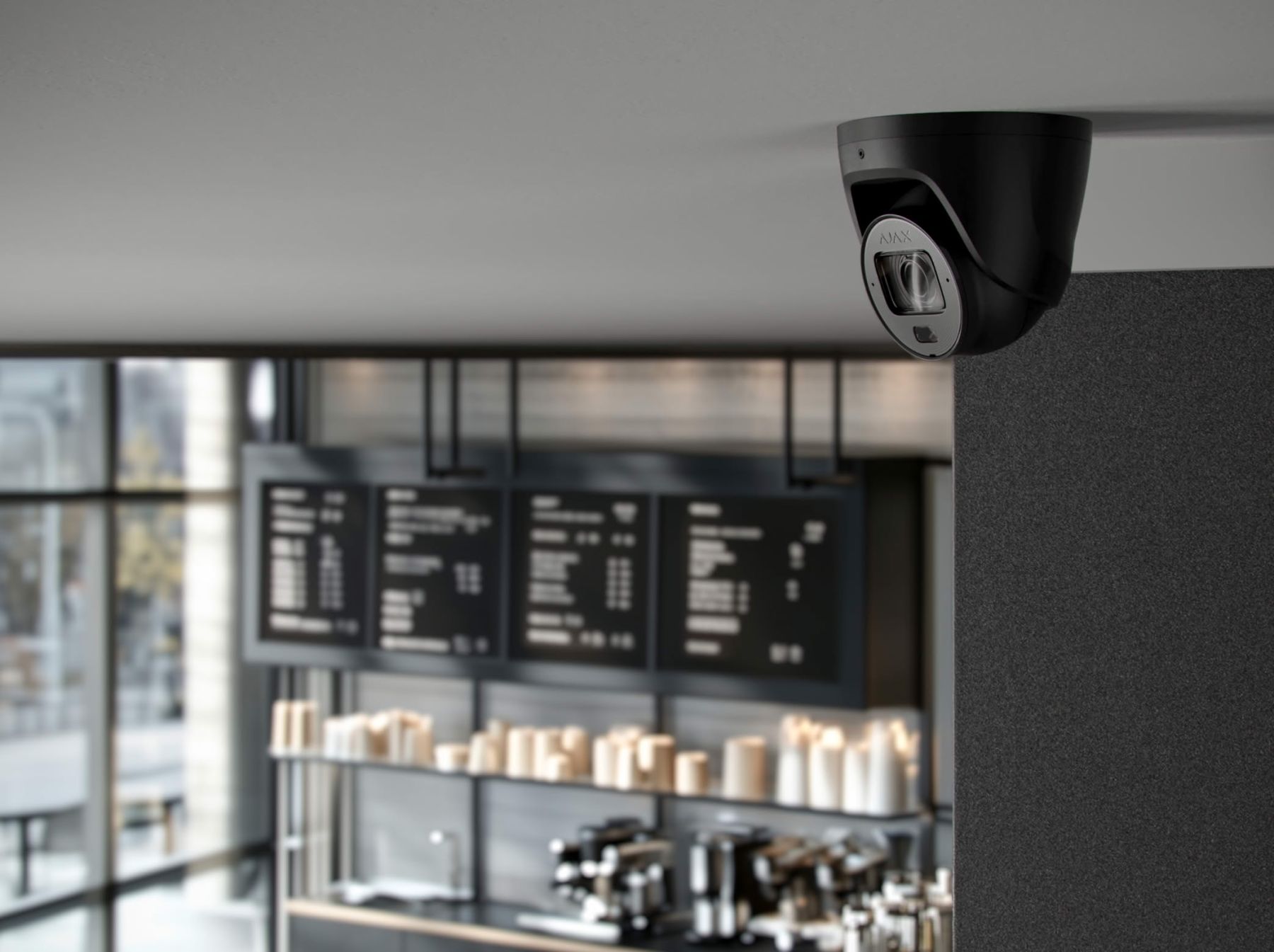

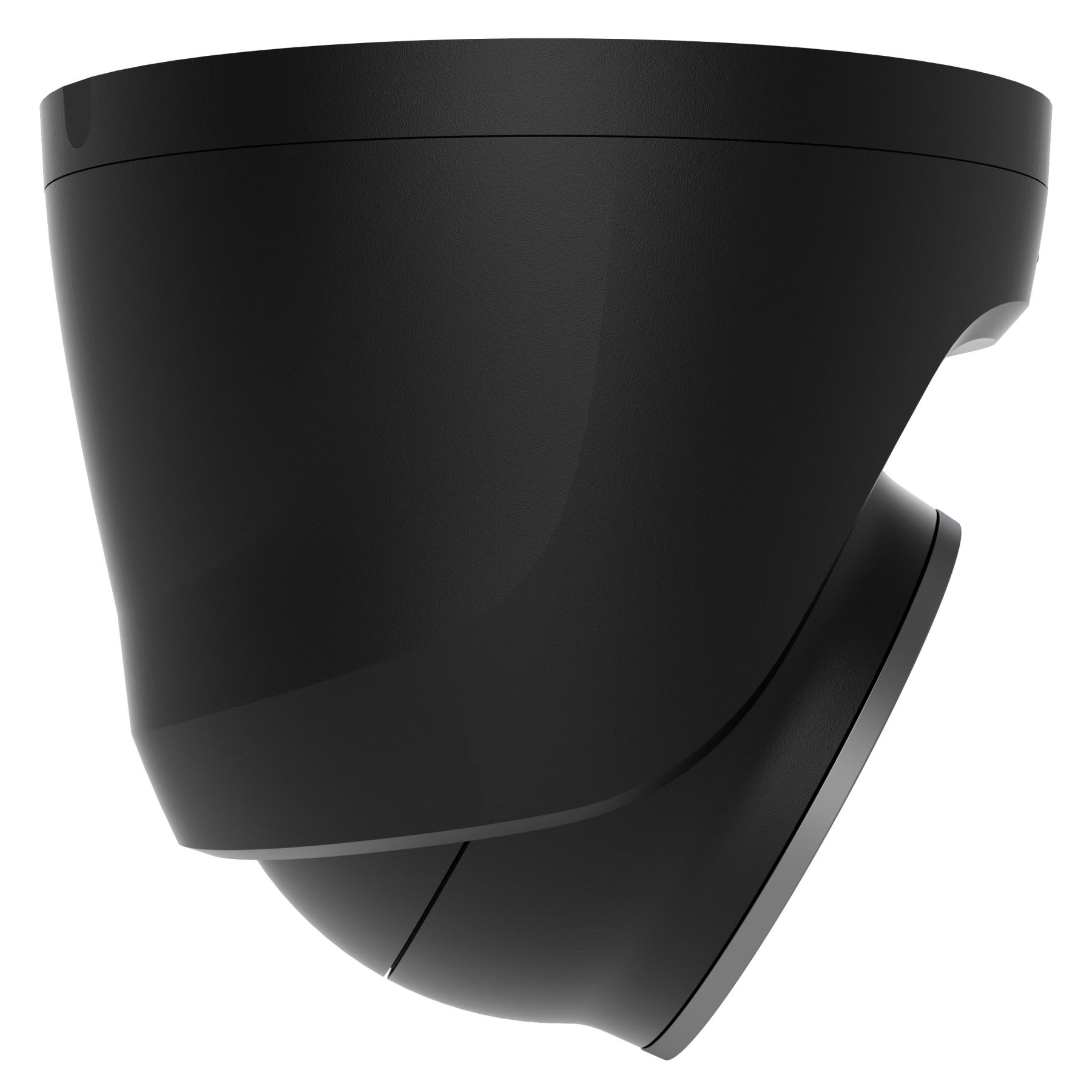

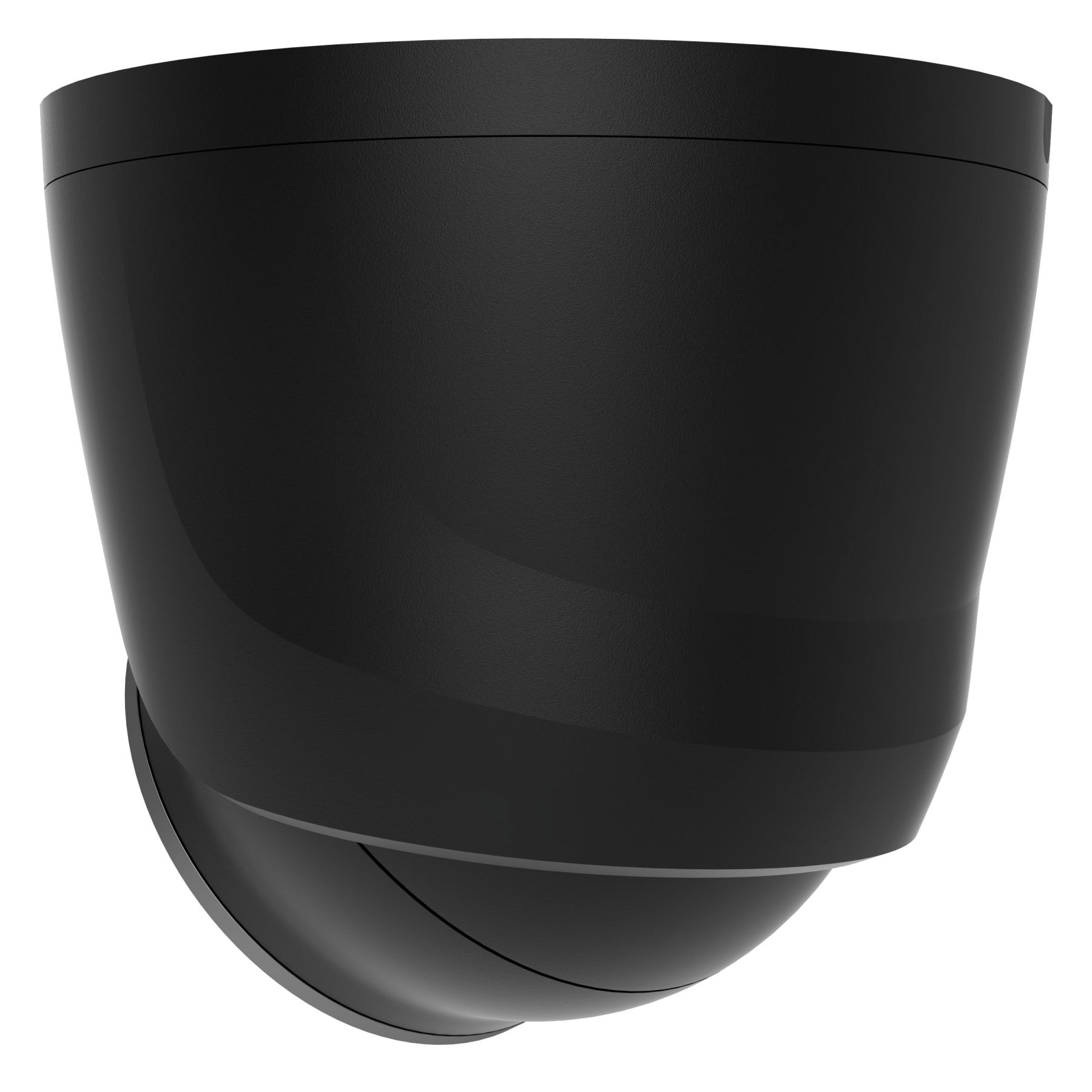

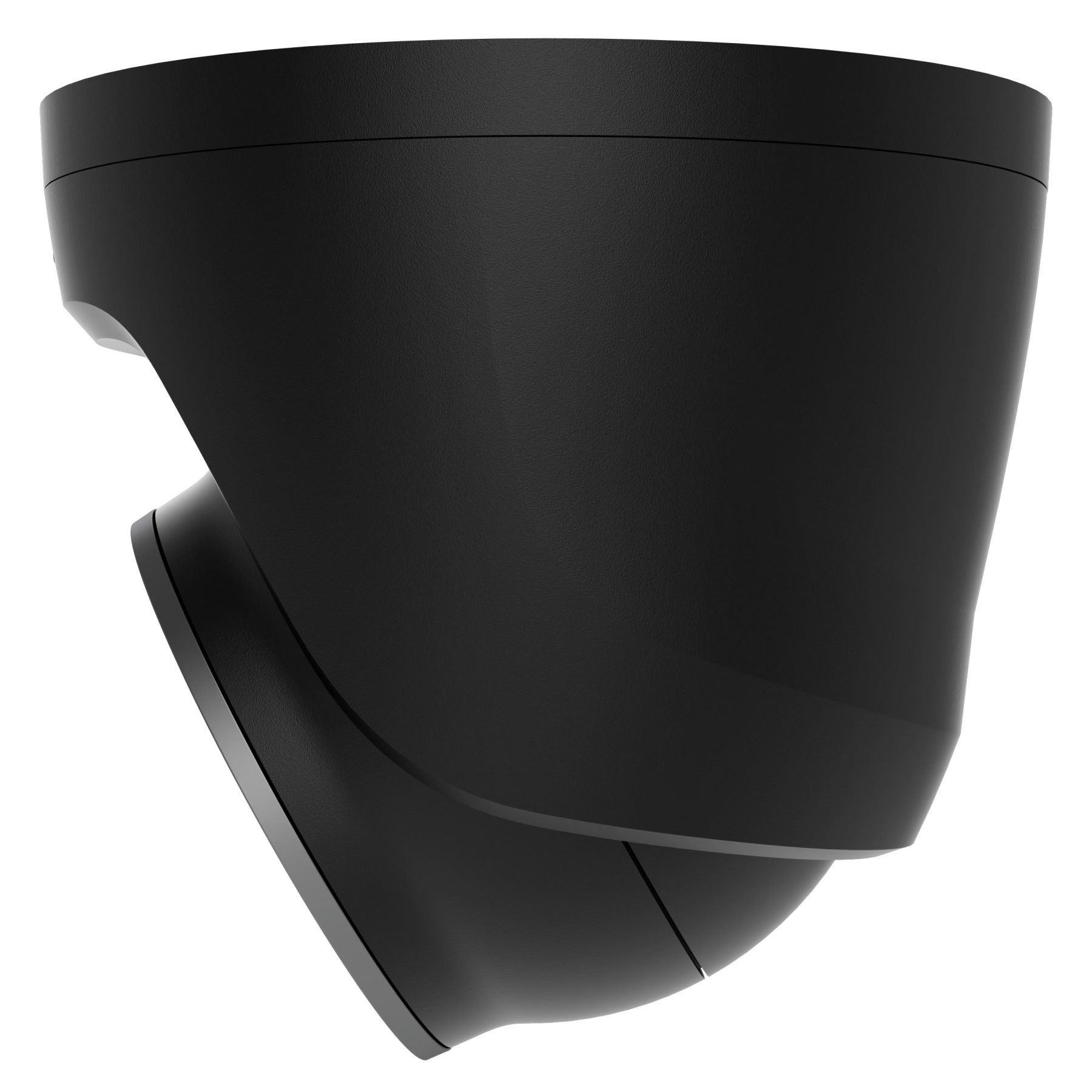

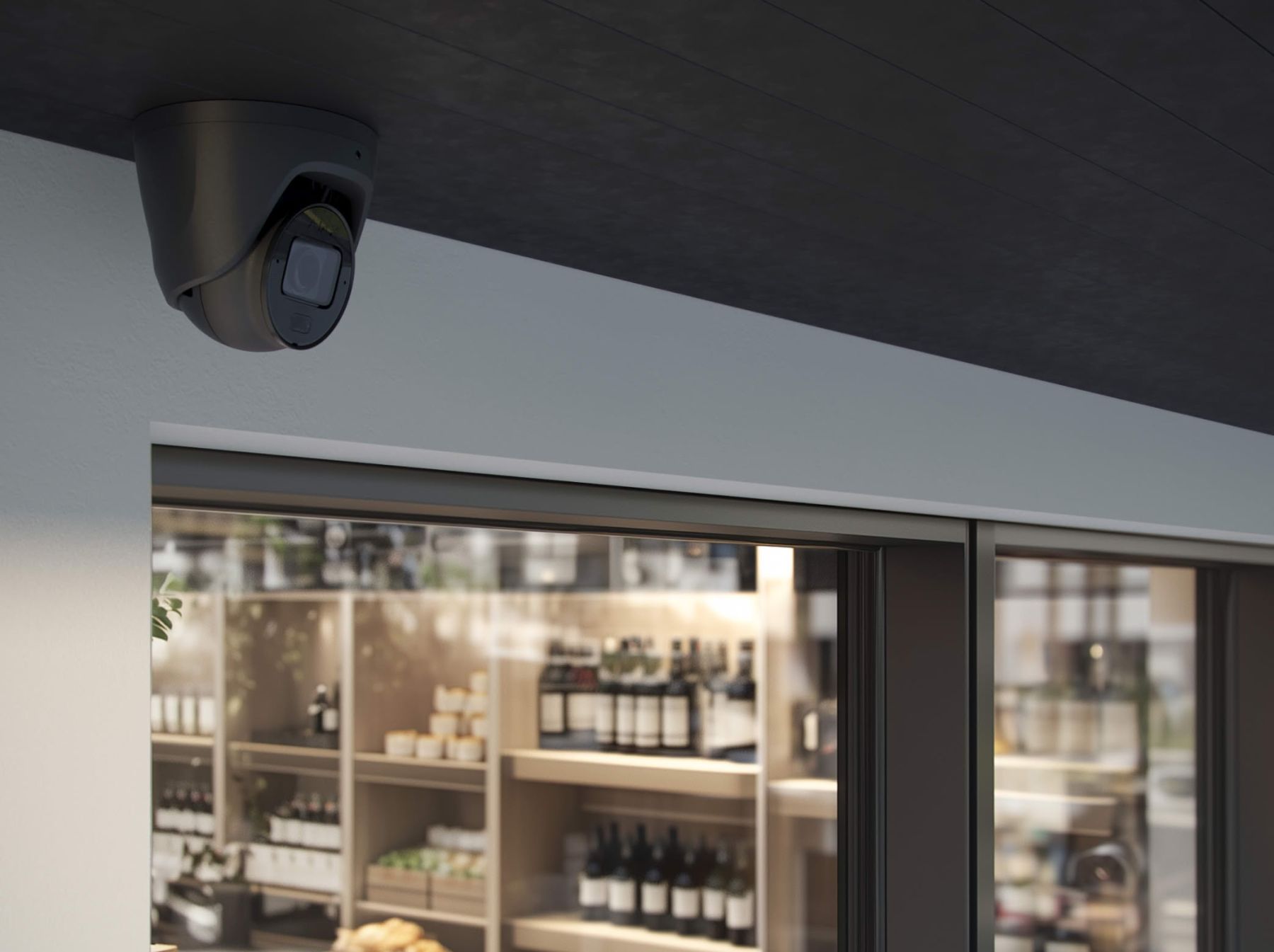

Ajax TurretCam HLVF 5 MP black is a wired IP surveillance camera designed for indoor and outdoor monitoring. The turret form factor allows installation on walls, ceilings, and other surfaces, while the black metal housing suits different installation environments.

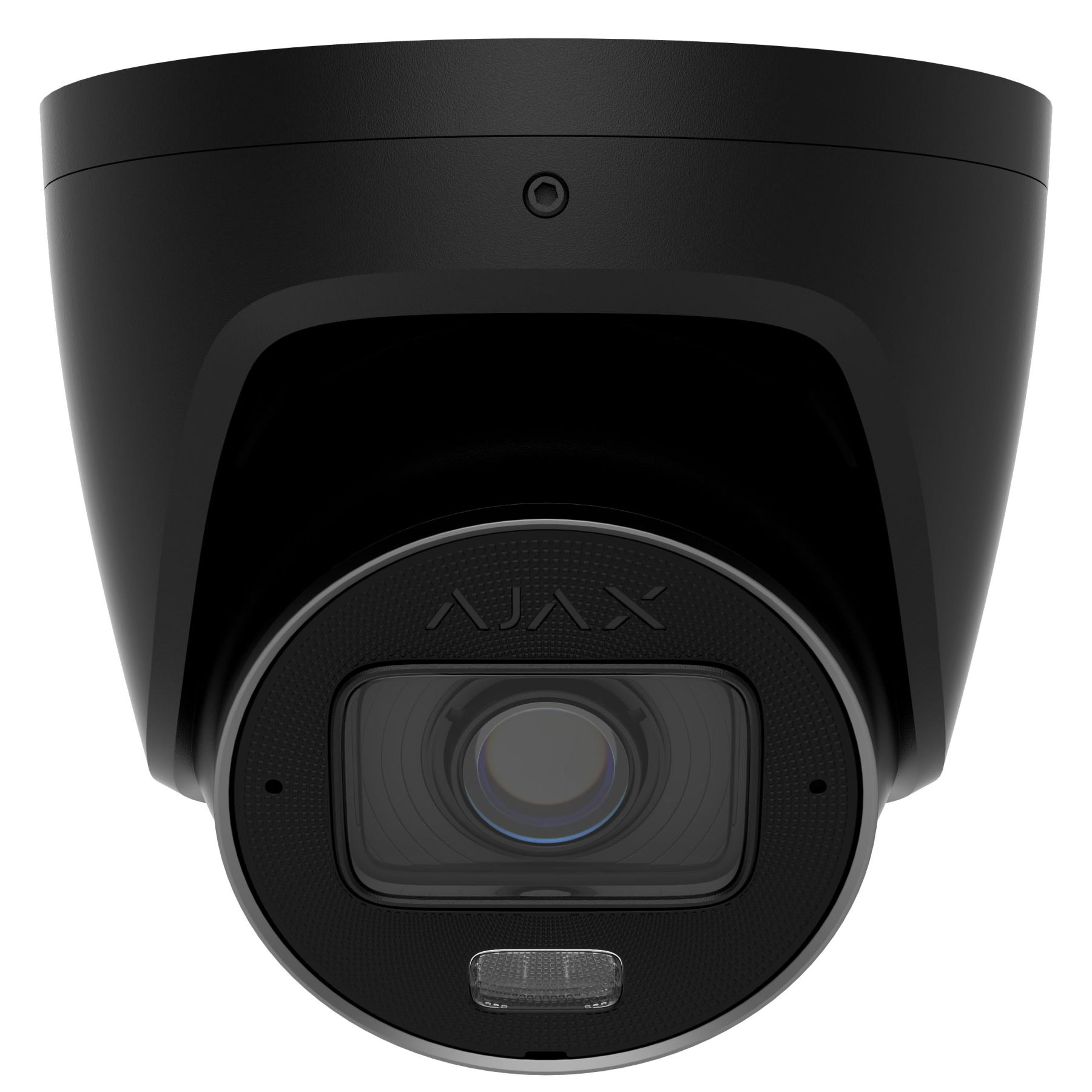

The model features a motorized 2.8–12 mm varifocal lens with remote focal length adjustment. The viewing angle can be adapted for entrances, corridors, warehouses, parking areas, retail spaces, or perimeter monitoring.

The camera records video at a maximum resolution of 2880 × 1620 with up to 25 frames per second. Support for H.265 and H.264 codecs helps reduce network load and optimize storage usage.

Hybrid night illumination combines infrared lighting up to 60 m and white LED lighting up to 40 m. The camera supports color night imaging when white illumination is enabled. Intelligent illumination control helps reduce overexposure when objects move close to the lens.

True WDR improves image quality in scenes with mixed lighting conditions. AI analytics supports detection of people, vehicles, pets, and line crossing events. Motion detection zones can also be configured.

The camera includes a built-in microphone, audio input, and audio output for integration with external audio devices. Video can be stored on a microSD card up to 256 GB or through Ajax NVR. The IP67-rated metal housing with IK10 impact protection is suitable for outdoor operation.

Technologies (used)

• True WDR
• AI analytics
• H.265 / H.264
• JetSparrow
• ONVIF Profile S / T
• RTSP
• PoE 802.3af/at
• Hybrid night illumination
• Secure Boot
• mTLS

Technical specifications

• Device type: IP surveillance camera
• Form factor: Turret camera
• Resolution: 5 MP
• Maximum video resolution: 2880 × 1620
• Frame rate: up to 25 fps
• Sensor: 5 MP CMOS 1/2.7"
• Lens: motorized varifocal
• Focal length: 2.8–12 mm
• Aperture: f/1.6
• Horizontal viewing angle: 31°–111°
• Night illumination: IR up to 60 m, LED up to 40 m
• Video codecs: H.265, H.264
• Audio: built-in microphone, audio input, audio output
• Network interface: RJ-45 10/100 Mbps
• Local storage: microSD up to 256 GB
• Power supply: PoE 802.3af/at or 12 V DC
• Protection rating: IP67
• Impact protection: IK10
• Operating temperature: -40 °C ~ +60 °C
• Weight: 850 g

Who it's for

• Private property owners
• Office personnel
• Warehouse personnel
• Retail facility administrators
• Parking area personnel
• Security system specialists

Conclusion

Ajax TurretCam HLVF 5 MP black combines a motorized varifocal lens, AI analytics, hybrid night illumination, and a protected housing for reliable video surveillance indoors and outdoors.
