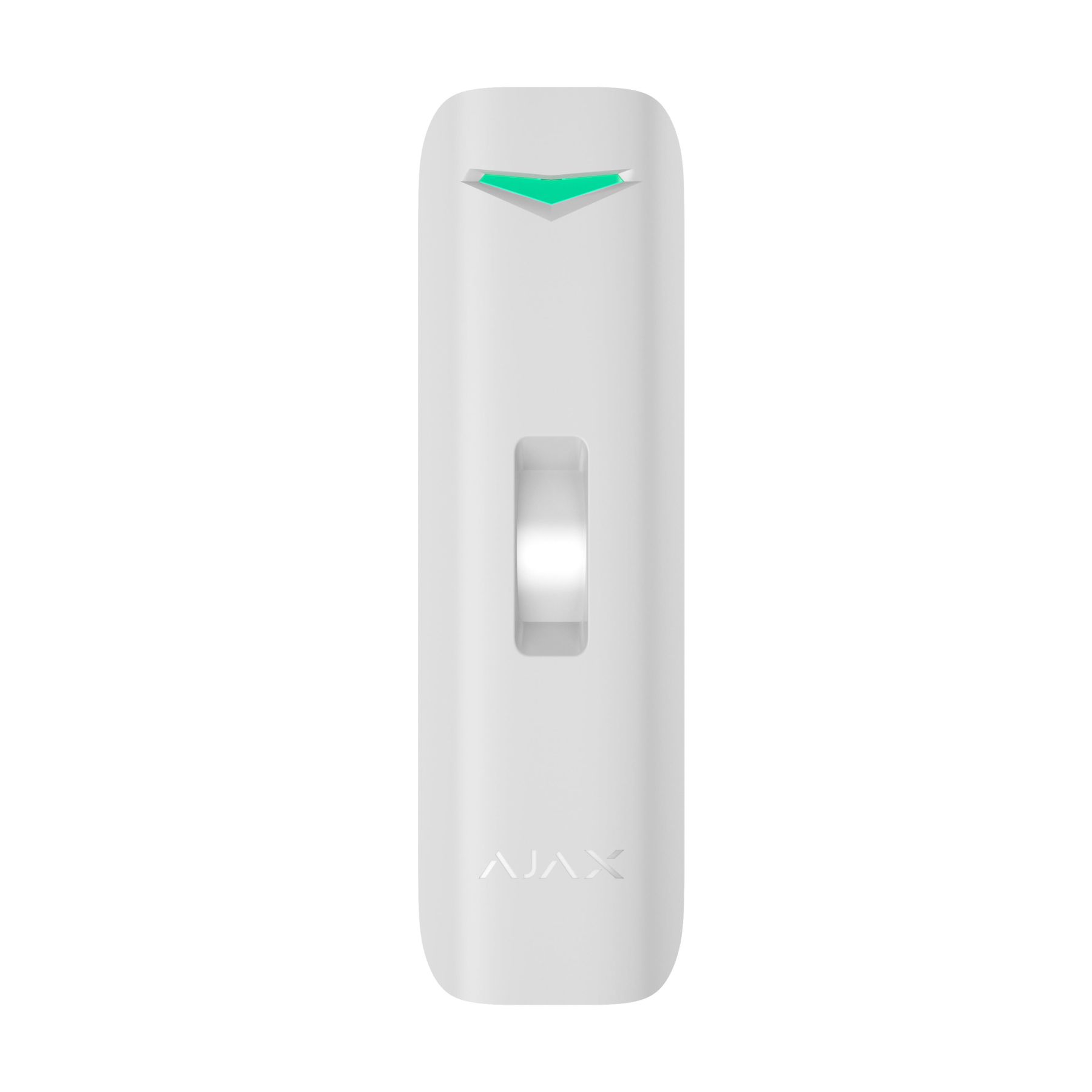

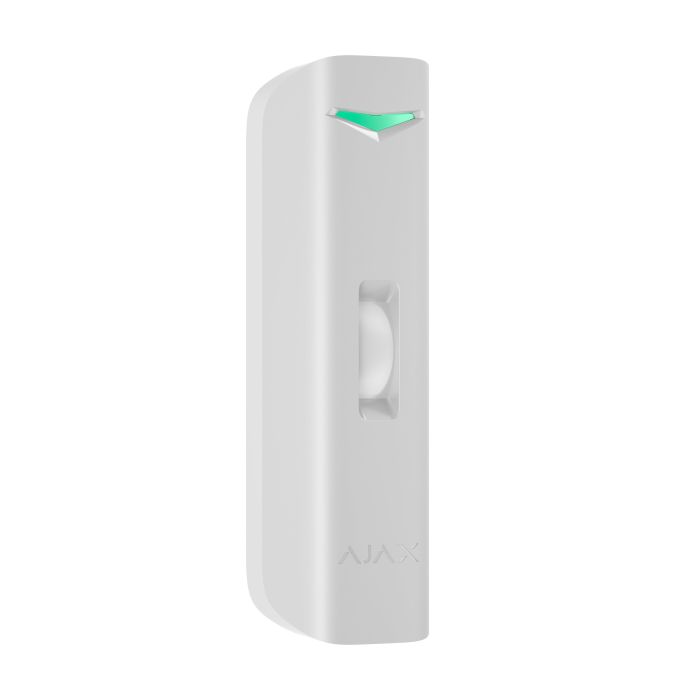

Outdoor curtain-type motion detector Ajax Curtain Outdoor Mini, Jeweler, wireless, white, 130273.345.WH1
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
Features

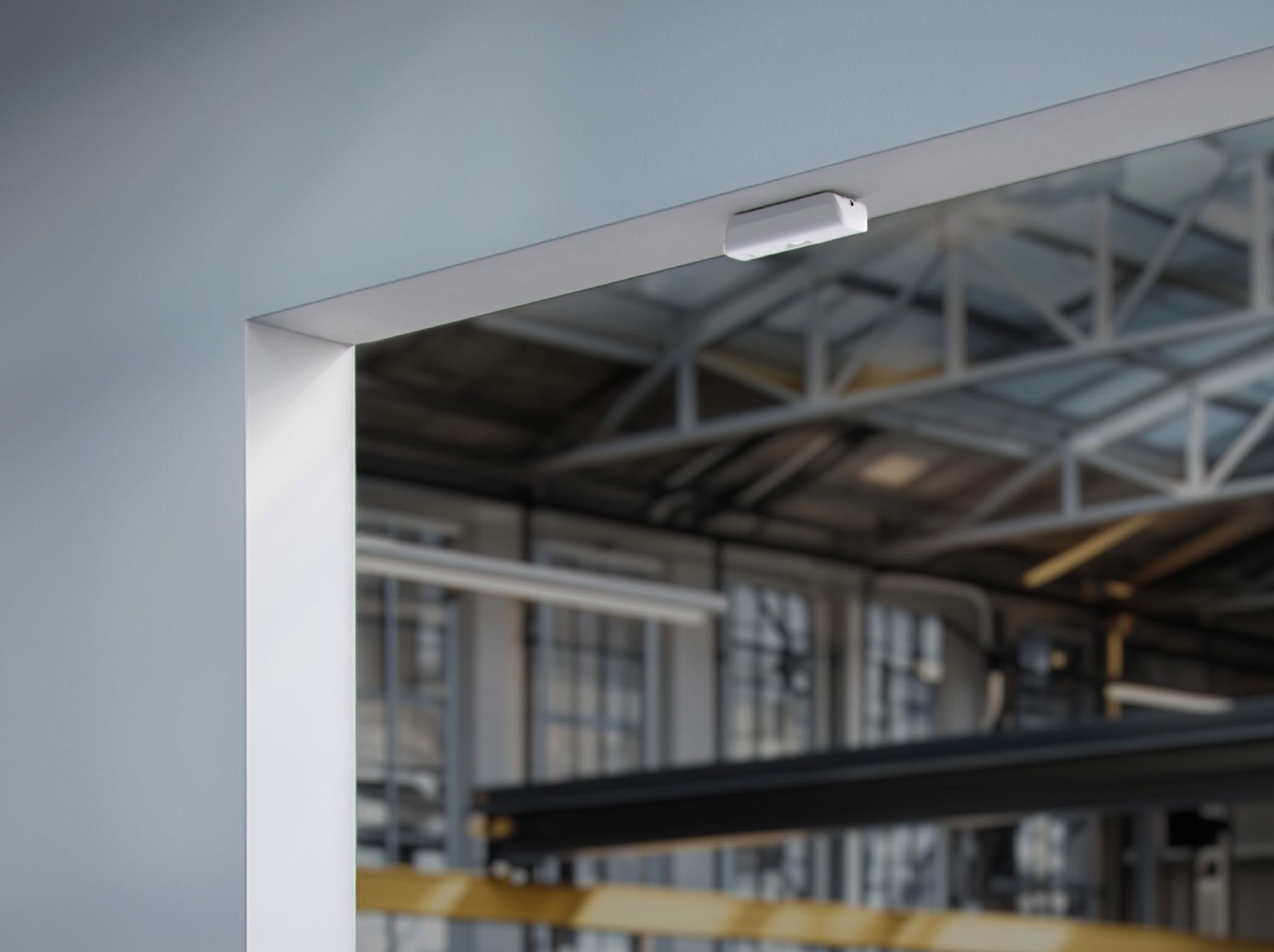

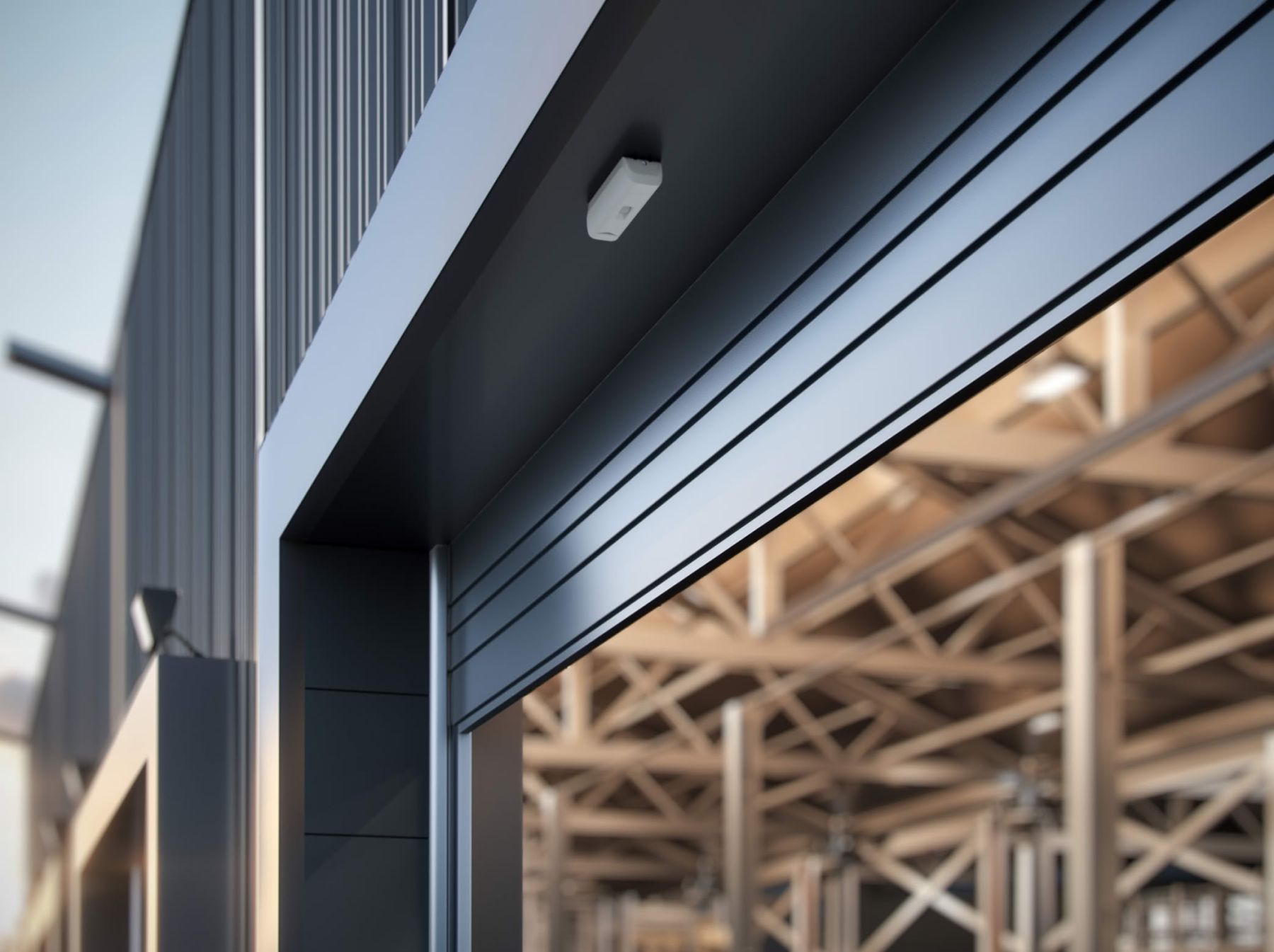

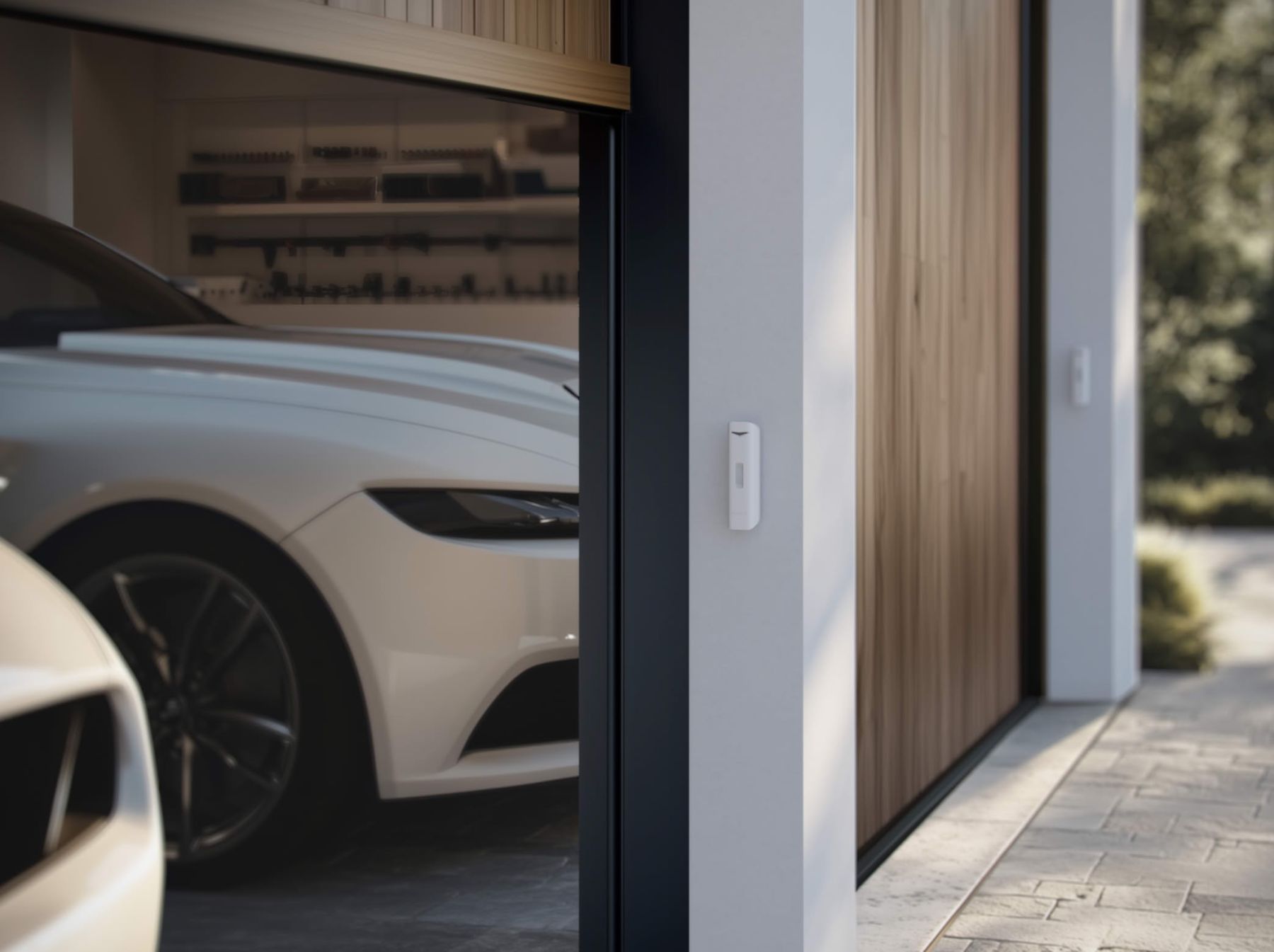

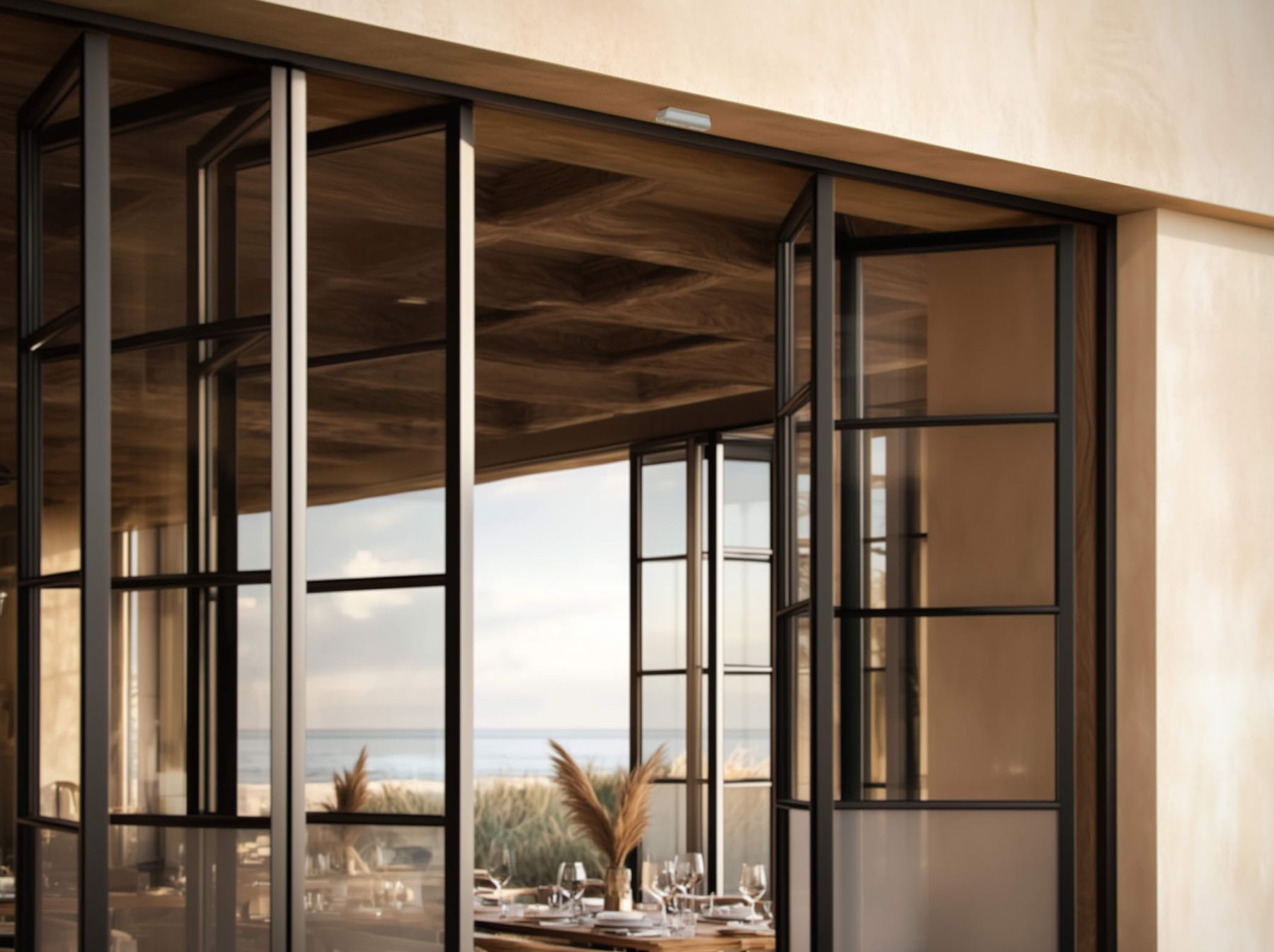

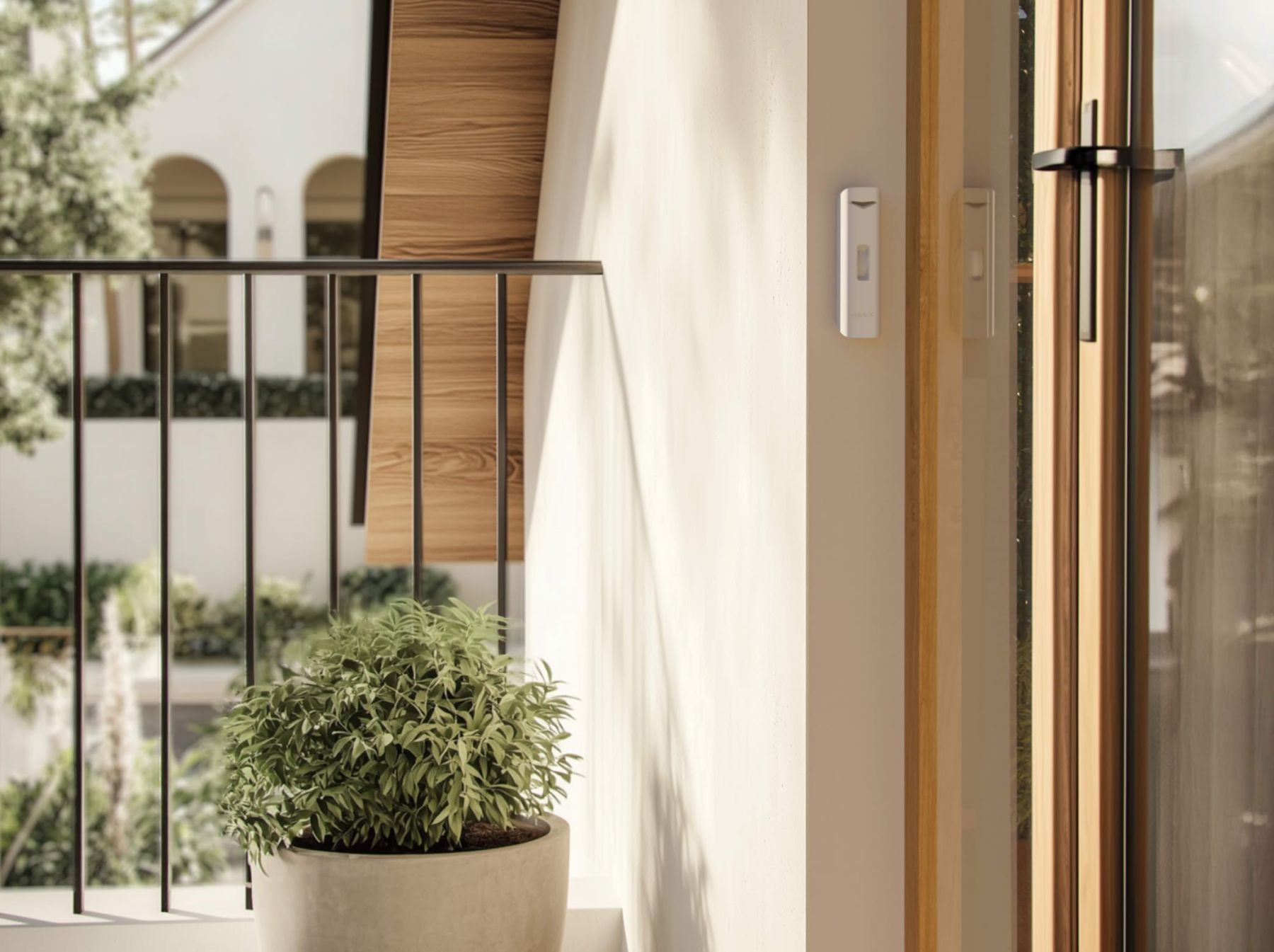

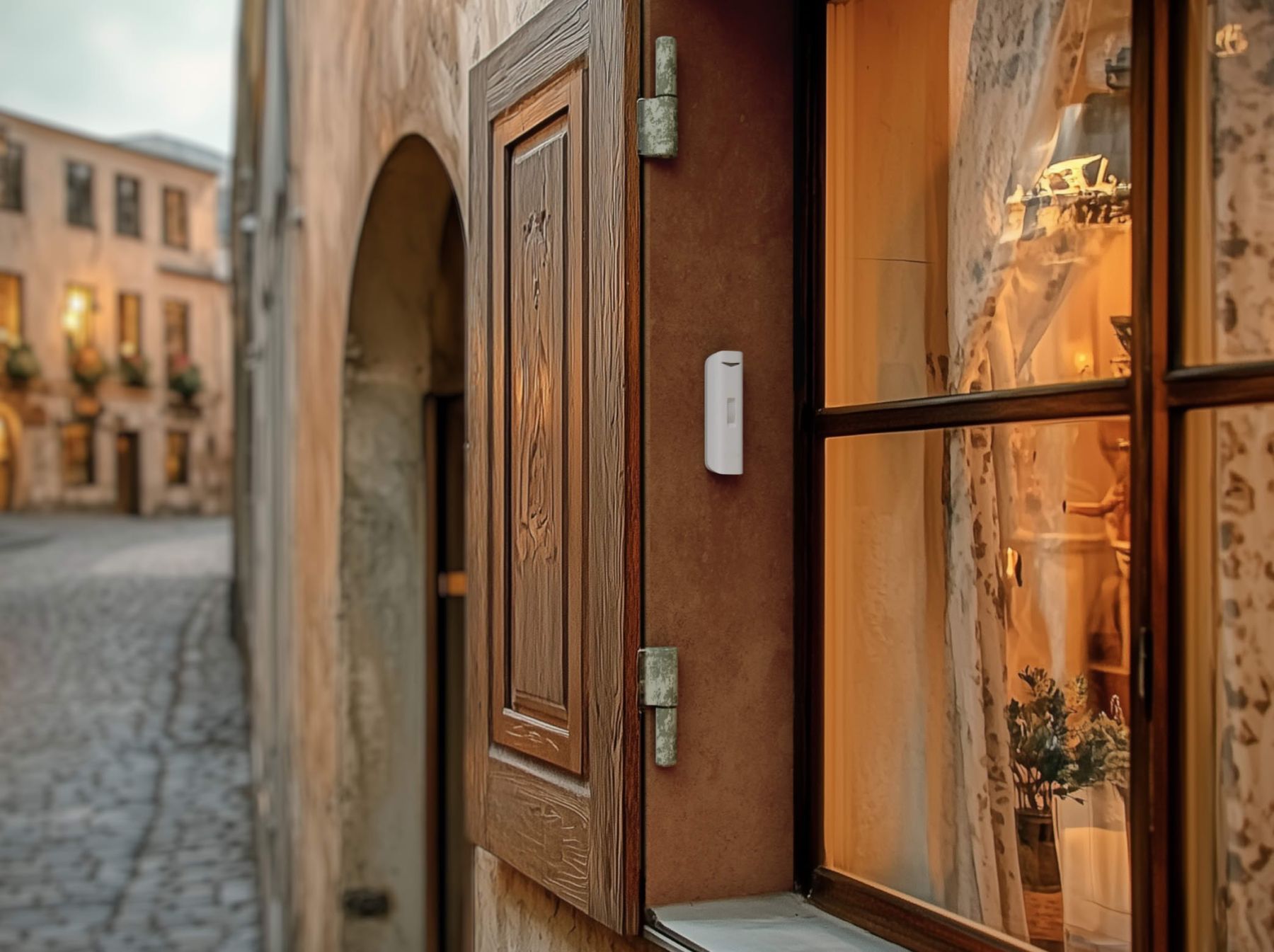

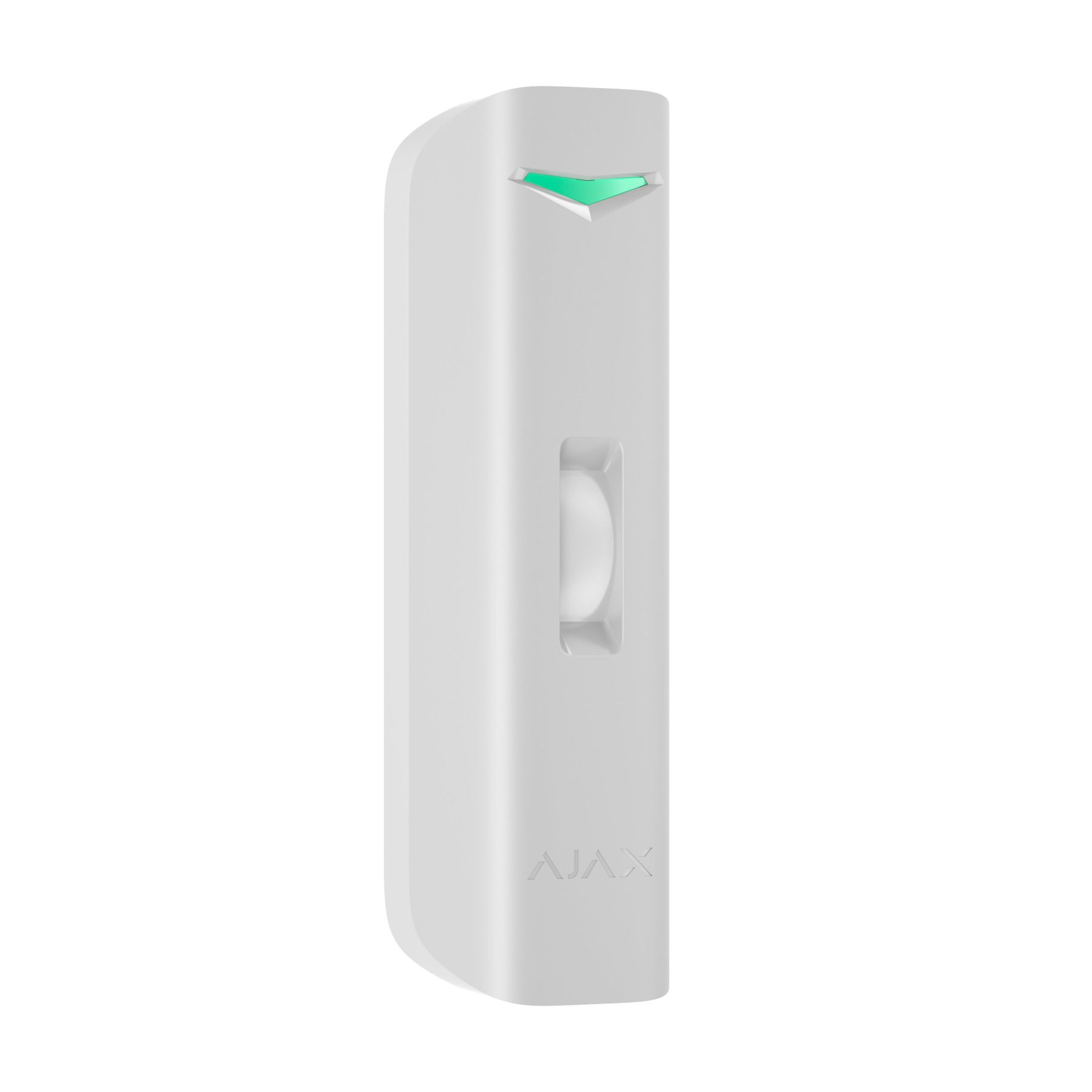

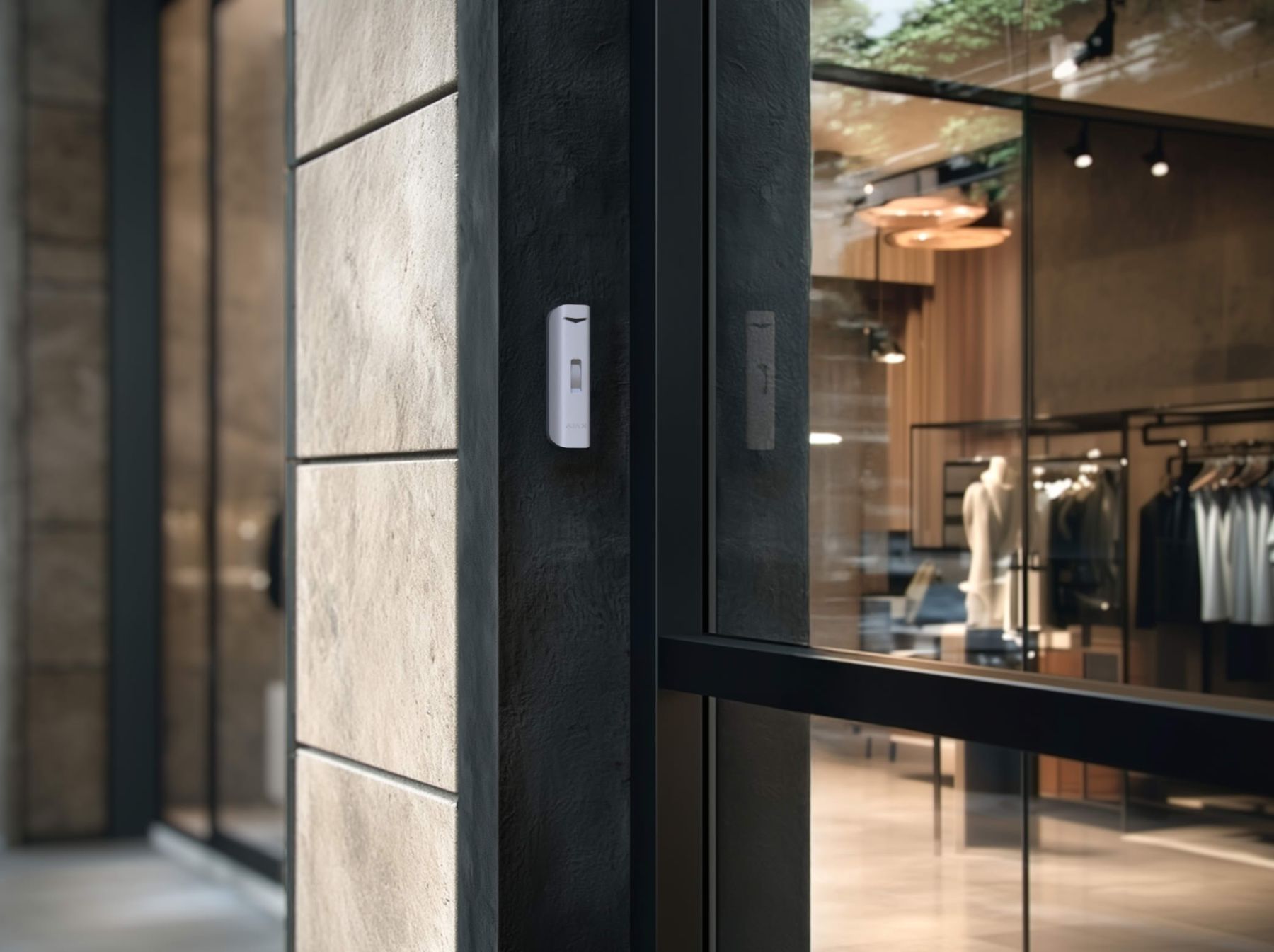

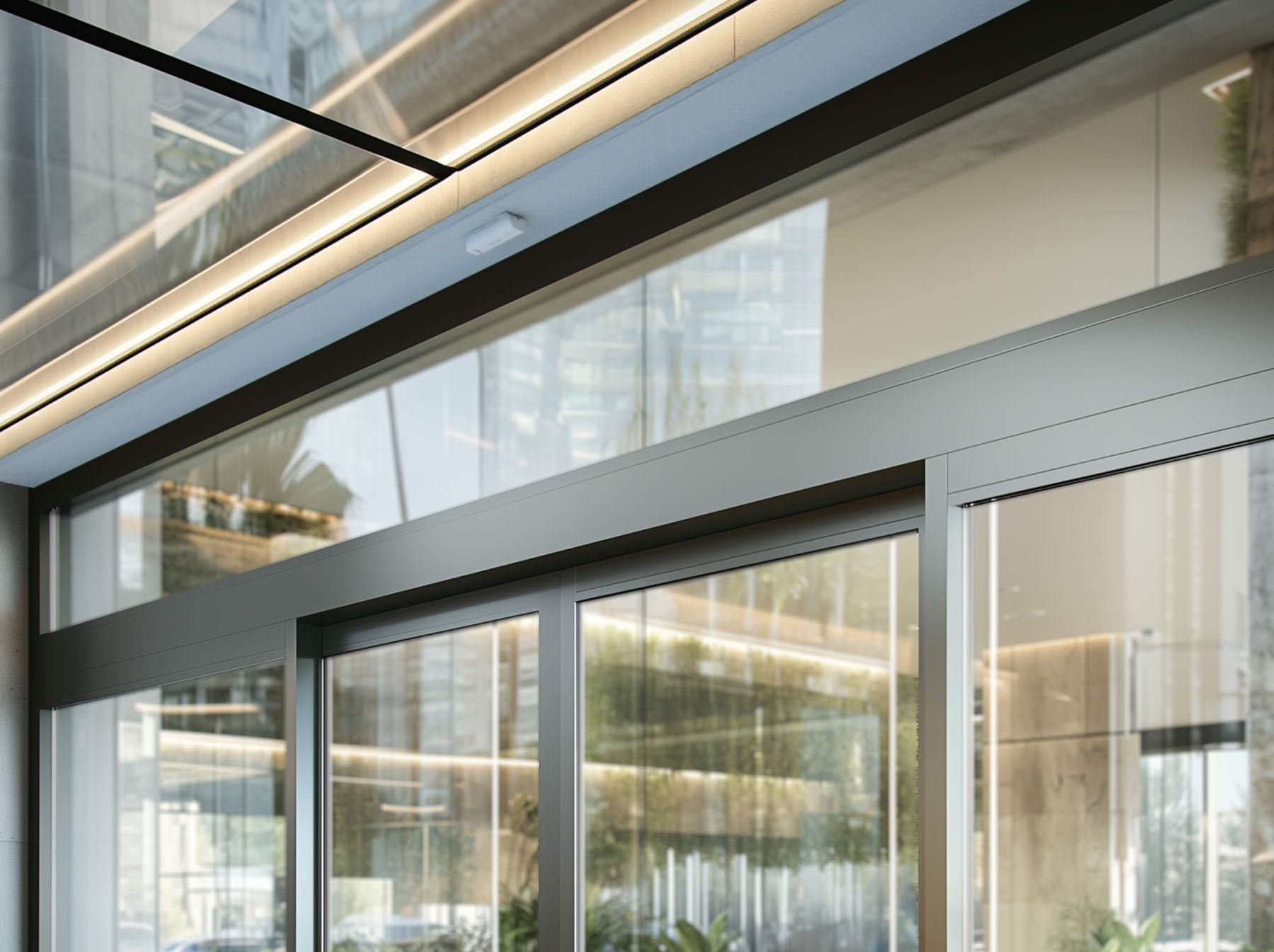

The Ajax Curtain Outdoor Mini is a curtain-type motion detector designed for precise perimeter control. It creates a narrow detection zone along windows, doors, and passages.
The detection system combines a PIR sensor with a K-band microwave sensor. This improves accuracy and reduces the impact of temperature changes.
The SmartDetect algorithm processes signals to reduce false alarms. Pet immunity is supported with proper installation.
Anti-masking, tamper protection, and an accelerometer detect interference or movement of the device. This enhances system reliability.
Communication is handled via Jeweller and Wings protocols, ensuring stable data transmission over long distances.
Technologies (used)
- PIR sensor
- K-band microwave sensor
- SmartDetect algorithm
- Jeweller and Wings protocols
- anti-masking
- accelerometer
Technical specifications
- type wireless curtain motion detector
- purpose perimeter protection
- installation indoor and outdoor
- detection range up to 5 m
- horizontal angle 15°
- vertical angle 100°
- detection speed 0.3–2.0 m/s
- sensitivity levels 3
- pet immunity up to 100 cm
- protocols Jeweller, Wings
- communication range up to 1700 m
- power supply 2 × CR123A
- battery life up to 3 years
- protection class IP55
- temperature −25 °C to +60 °C
- humidity up to 95%
- dimensions 43 × 32 × 145 mm
- weight 130 g
Who it's for
- homeowners
- security system engineers
- alarm installers
- commercial property owners
Conclusion
The Ajax Curtain Outdoor Mini provides accurate perimeter detection with reduced false alarms. It is suitable for indoor and outdoor security applications.
-
Type:PIR sensor
-
Application:external use, against break-in, internal use
-
Power supply:2 x CR123A (3 V)
-
Sensitive element:pyrosensor, microwave sensor
-
Battery life:up to 3 years old
-
Operating humidity:up to 95%
-
Operating temperature:−25 - +60
-
Additional information:wireless connection, accelerometer, two-way communication between devices, substitution protection, anti-hacking tamper, sabotage protection, anti-masking, 3 levels of sensitivity, adjustable in Ajax, SmartDetect, захист від глушіння, remote setup via app
-
Working distance in open space:up to 1700 m
-
Recommended mounting height m:2.4
-
Colour:white
-
Dimensions:43 x 32 x 145
-
Compatibility:Ajax Hub, Ajax Hub Plus, Ajax Hub 2, Ajax ReX, Ajax Hub 2 Plus, Hub Hybrid, Ajax ReX 2, Ajax Hub BP
-
Radio frequency:868,0−868,6 MHz, 868,7−869,2 MHz, 866,0 – 866,5 МHz, 905,0 – 926,5 МHz, 915,85 – 926,5 МHz, 921,0 – 922,0 МHz
-
Sensor type:Infrared, мікрохвильовий K-діапазону
-

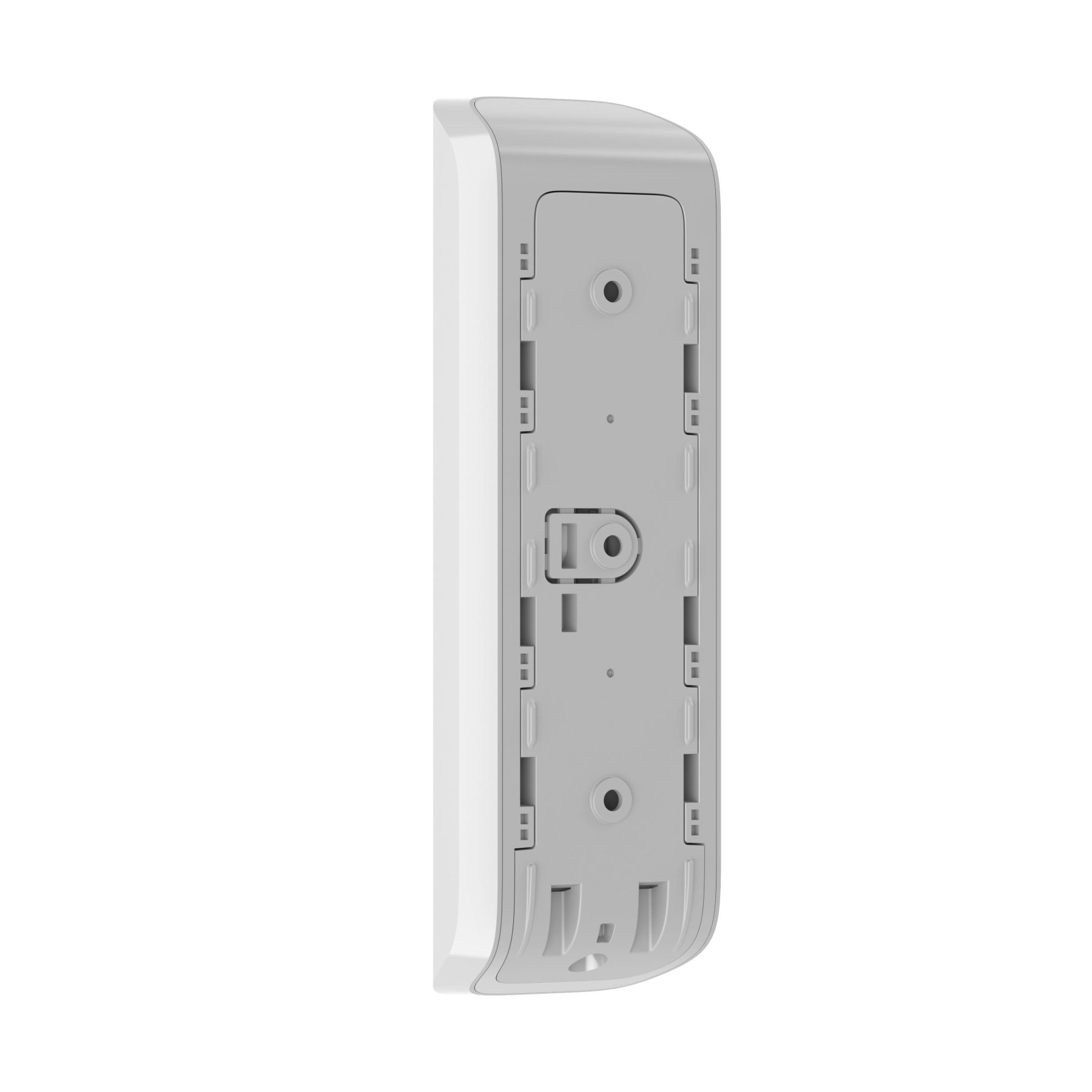

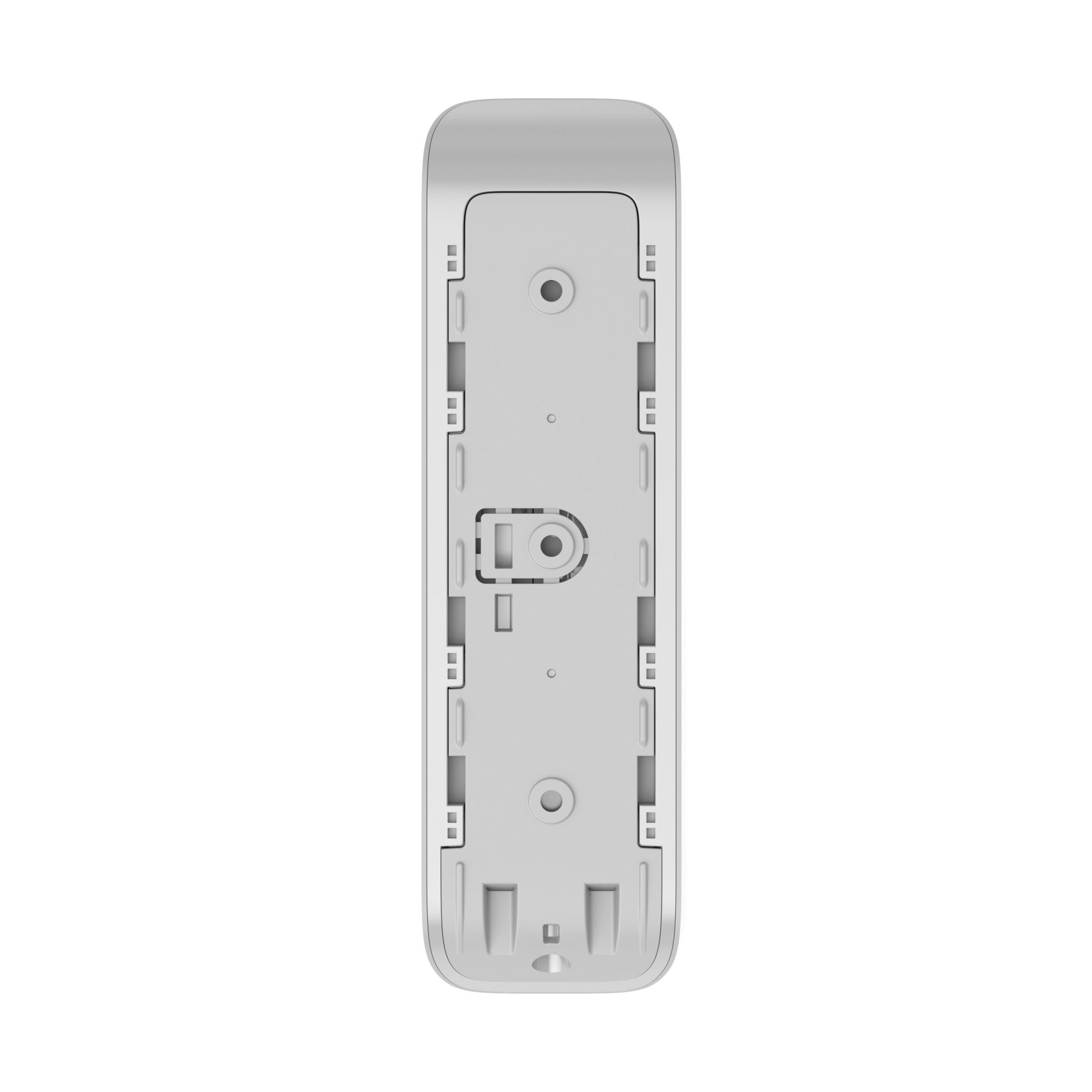

Type of installation:wall mount, SmartBracket (tool-free)
-
Weight g:130
-
Range:up to 5 meters
-
Body material:plastic
-
Package Contents:SmartBracket mounting panel, corner bracket, елемент живлення
-
Vertical angle of motion detection:100°
-
Category:smart home sensors
-
Сountry of manufacture:Ukraine
-
Device type:бездротовий датчик руху типу «штора»
